AmpliVox SW1234 User Manual
Page 4
4

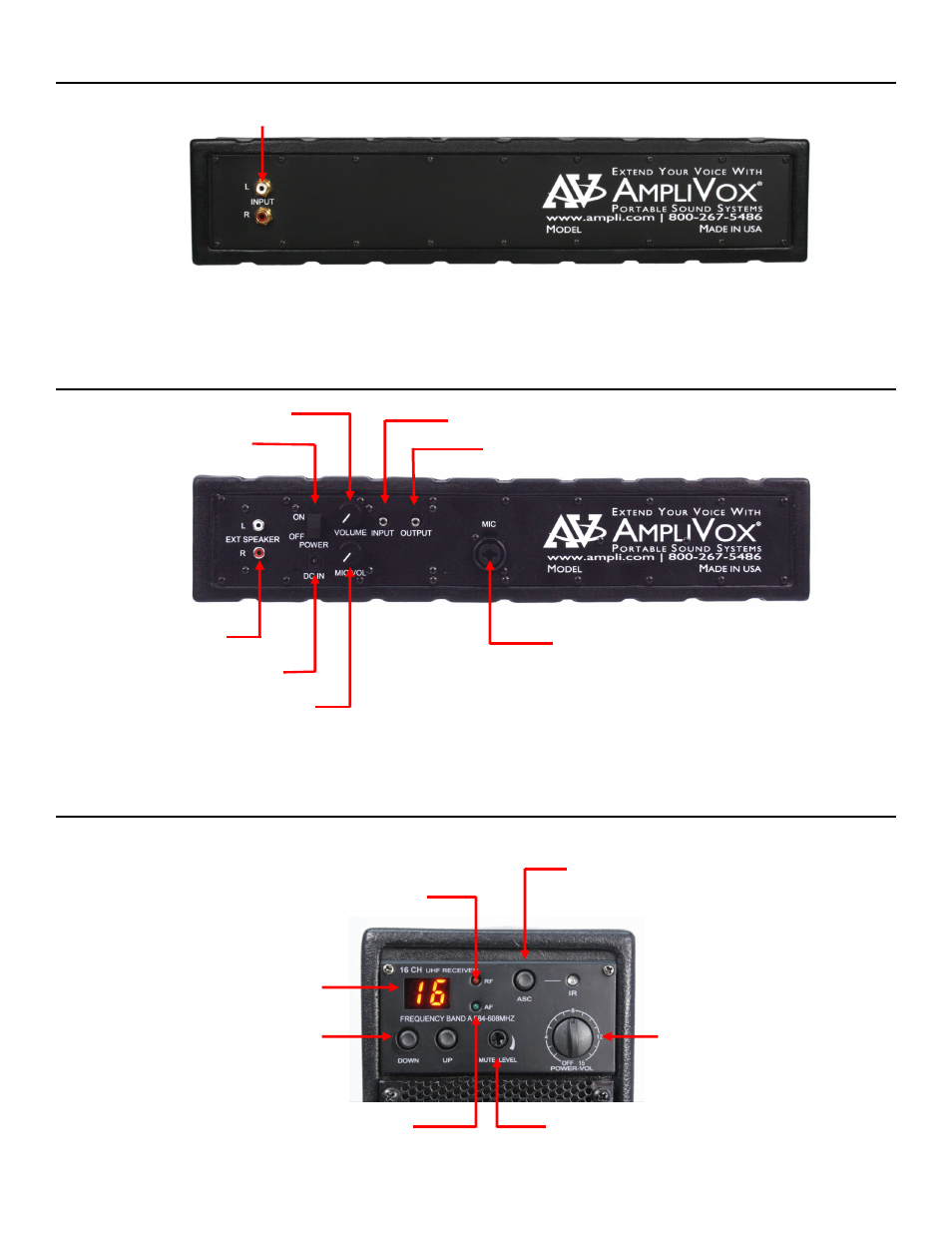

XLR / 1/4” COMBO
RCA Input Jacks
S1234 BACK PANEL
DC ADAPTER CONNECTOR
POWER SWITCH
CHANNEL DISPLAY
MINI JACK INPUT: (3.5mm)
MICROPHONE VOLUME
CONTROL
MINI JACK OUTPUT (3.5mm)
MAIN VOLUME CONTROL
RCA OUTPUT JACKS
SW1234 WIRELESS UHF RECEIVER
SS1234 / SW1234 BACK
The S1234 is a passive speaker. It has no built-in amplifier. It is designed to be used with the SS1234 / SW1234. Speaker has
a Left and Right input but only one input needs to be used. Use either a dual RCA cable or single RCA cable.
VOLUME CONTROL
MUTE LEVEL ADJUSTMENT
RF—RADIO FREQUENCY INDICATOR
AF—AUDIO FREQUENCY INDICATIOR
CHANNEL SELECT
BUTTONS
ASC / IR AUTO
CHANNEL SELECT
WARNING! RISK OF SHOCK! DO NOT OPEN UNIT.
NO USER SERVICEABLE PARTS INSIDE!
