AmpliVox SW1230 User Manual
Page 4
4
h
WIRELESS
CHANNEL SLECTOR
MODEL SW1230
RCA Input Jack

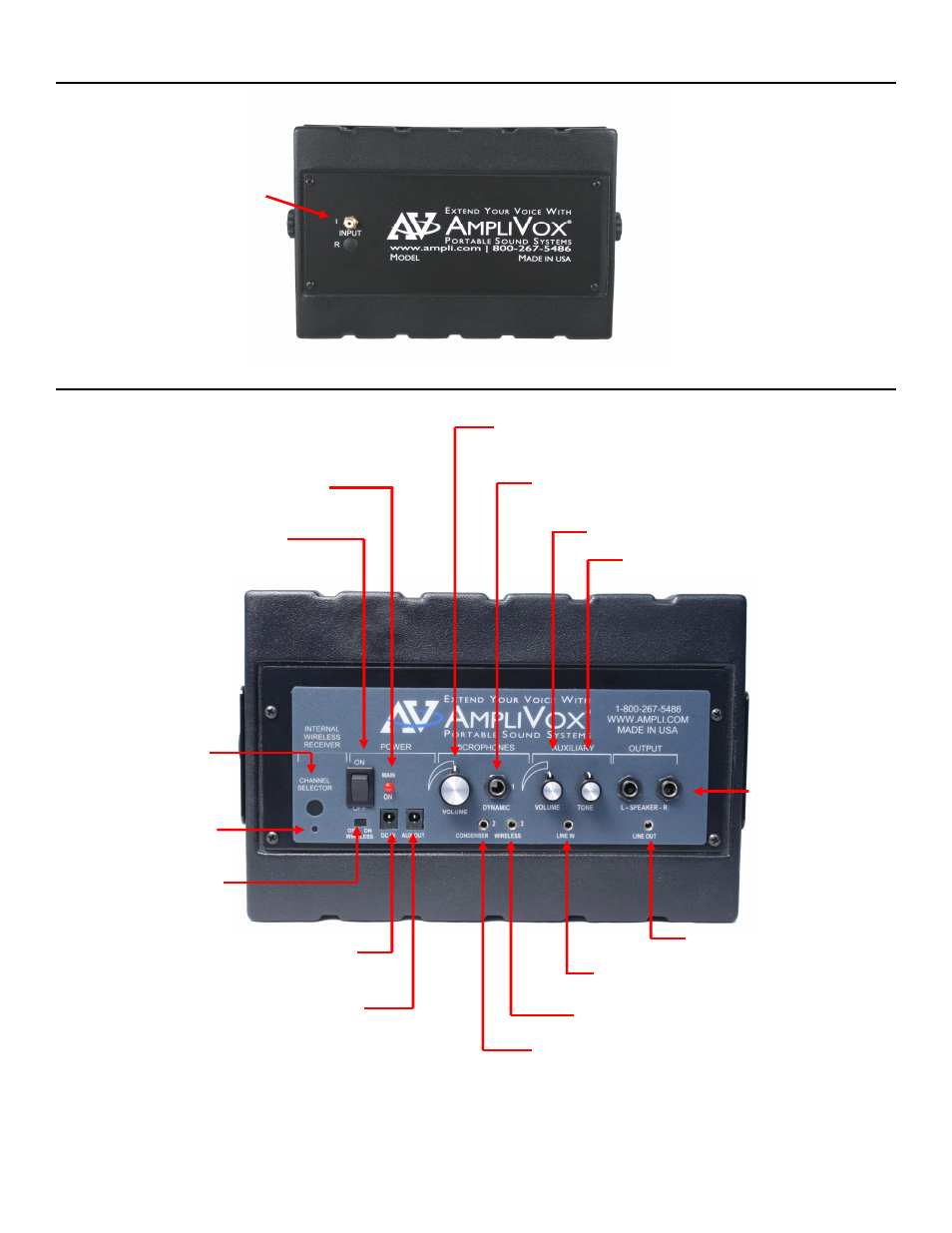

S1230 BACK PANEL
f
DC ADAPTER CONNECTOR
q
POWER SWITCH
u
LEFT & RIGHT
SPEAKER JACKS
e
MICROPHONE VOLUME CONTROL -
controls all 3 microphone inputs
i
LINE OUT (3.5mm)
w
POWER INDICATOR LIGHT
y
TONE CONTROL
SS1230 / SW1230 BACK
The
S1230 is a passive speaker. It
has no built-in amplifier. It is de-
signed to be used with the
SS1234/ SW1234. Speaker has
only one input labeled
“L” . You
can use either a dual RCA cable
or single RCA cable to 1/4
″ (not
included).
t
AUXILIARY VOLUME CONTROL
d
AUX OUT - for optional
12-15 volt accessory
r
DYNAMIC MICROPHONE JACK -
1/4" for wired handheld microphone
WARNING! RISK OF SHOCK! DO NOT OPEN UNIT.
NO USER SERVICEABLE PARTS INSIDE!
g
WIRELESS
ON / OFF SWITCH
MODEL SW1230
s
CONDENSER MICROPHONE JACK (3.5mm)
a
WIRELESS MICROPHONE JACK (3.5mm)
o
AUXILIARY LINE IN (3.5mm)
j
RF LED
MODEL SW1230
