4
XLR / 1/4" COMBO JACKS:
To connect balanced or unbalanced
microphones that have either XLR or
phone plug connectors.
LINE OUT JACK:
(1/4") Can be
used for outboard processors, musical
instruments and recorders.
″AA″ BATTERY CHARGER:
Use for charging batteries in the
wireless microphone transmitters.

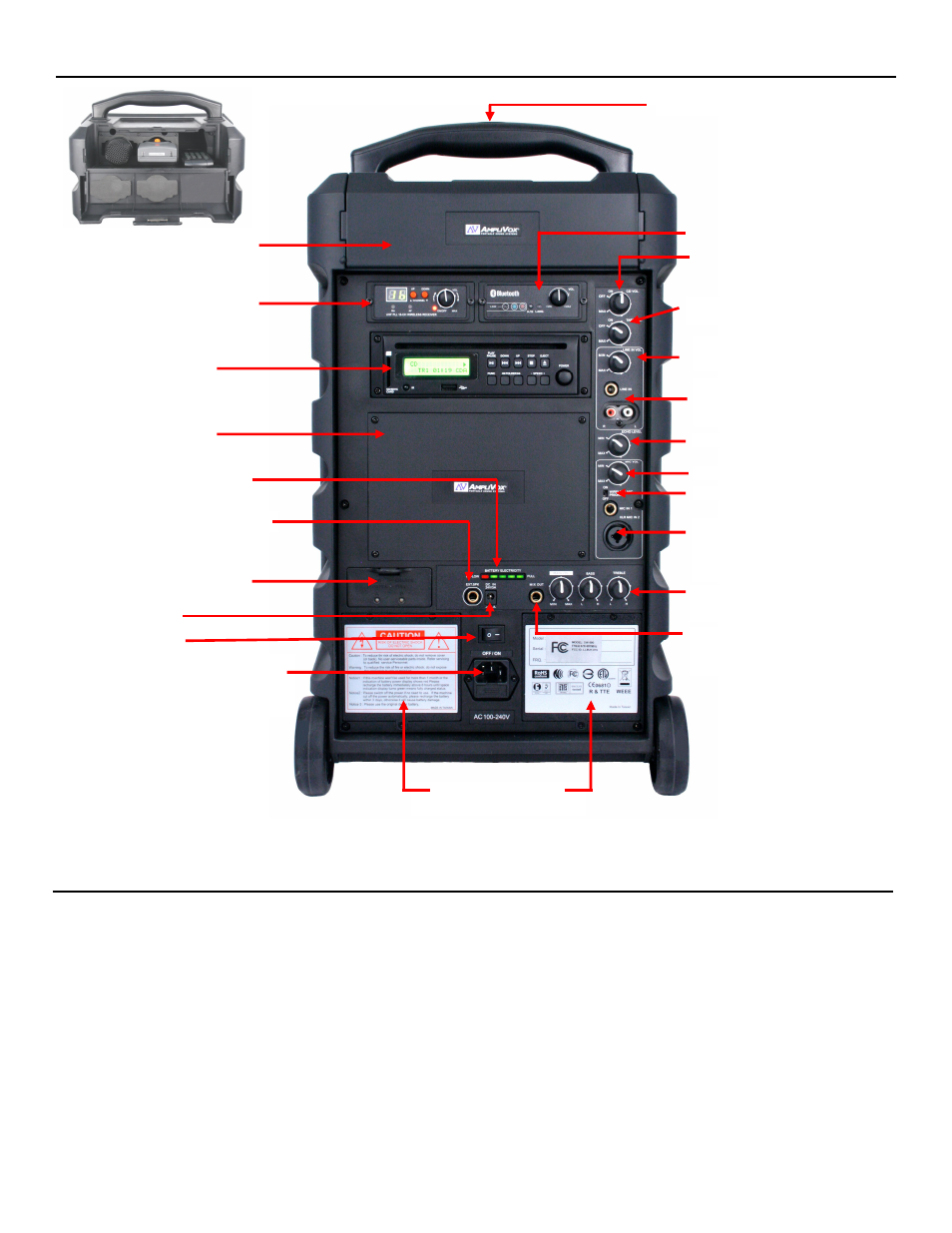

CONTROL / BACK PANEL
POWER SWITCH
WIRELESS MICROPHONE
16 CHANNEL UHF RECEIVER
1/4″ & RCA AUDIO INPUTS:
To connect devices as MP3 players,
portable tape and CD players
AUTO SWITCHING 110 / 220 VAC
INPUT WITH BUILT-IN LINE FUSE
HOLDER
LINE IN VOLUME:
Control for accessory input devices
AUDIO CONTROL KNOBS:
Used to set Volume/Bass/Treble
BATTERY PANELS
User Accessible
CD / MEDIA PLAYER:
Volume Control
POWER SWITCH:
When power switch is in the ON position, the
BATTERY STATUS LIGHT (RED) will be illuminated. The other 4
green led
’s will indicate the condition of the battery. Each green led
represents about 25% of battery charge. If no green led ’s are lit, bat-
tery must be recharged before use.
To charge the batteries, connect the unit to 110-220VAC using the
supplied power cord. The 4 green led
’s will flash indicating battery is
charging. The batteries will charge when unit is operating with AC
power,
HOWEVER the unit will charge faster with the power
switch in the “off” position.
THE SW800 MUST BE PLUGGED IN AND CHARGING WHEN NOT
IN USE TO MAXIMIZE BATTERY LIFE. RECHARGING THE UNIT
ONLY WHEN THE BATTERY STATUS LIGHT IS RED WILL
SHORTEN THE USEFUL LIFE OF THE BATTERIES.
FUSE:
When the AC cord is plugged in, and the battery
charging does not start, please check fuse. There is a fuse in
the AC jack. It is identified on the plastic with a drawing of a
fuse.
Detach the AC cord from the unit before replacement
This fuse protects the AC circuitry. Use a flat blade screwdriver
in the slot on the top of fuse holder to slide the fuse holder out.
Replace the fuse with a 10A/250V fuse if needed.
If after replacing fuse, the SW800 does not “power on”, please
call AmpliVox Customer Service at 800-267-5486.
WARNING! RISK OF SHOCK! DO NOT OPEN UNIT NO
USER SERVICEABLE PARTS INSIDE!
OPERATION
ECHO:
Volume Control
CD / MEDIA PLAYER
ACCESSORY VOLUME CONTROL:
Non Functional
MICROPHONE VOLUME
MICROPHONE PRIORITY SWITCH
BATTERY STATUS LIGHTS
EXTERNAL SPEAKER:
1/4" JACK
MICROPHONE / BODYPACK /
REMOTE CONTROL
STORAGE COMPARTMENT
DC POWER INPUT
Not Used
ADJUSTABLE PULL OUT HANDLE
BLUETOOTH MODULE
EXPANSION SLOTS
Not Used
