3
1. Power unit on with rocker switch.
2. The
WIRELESS RECEIVER has its own POWER / VOLUME
Control. Turn Receiver Power On. A Frequency Channel will
appear in the Channel Display. Press UP/DOWN Buttons to
select a channel. Channel number must match channel num-
ber on wireless transmitter.
3.
Wireless Bodypack Transmitter- Before turning on the
transmitter, set the transmitter channel selector switch to the
same number that is displayed on the receiver. Select chan-
nels 1-16. Install 2 -
“AA” batteries into battery compartment
of wireless transmitter pack.
4. MAIN BATTERY STATUS indicator - Red = no battery
power, If four GREEN LED ’s are glowing, means fully
charged. Charge batteries overnight for best results.
If you need further assistance, please call
1-800-267-5486, 8am-6pm M-F CST .

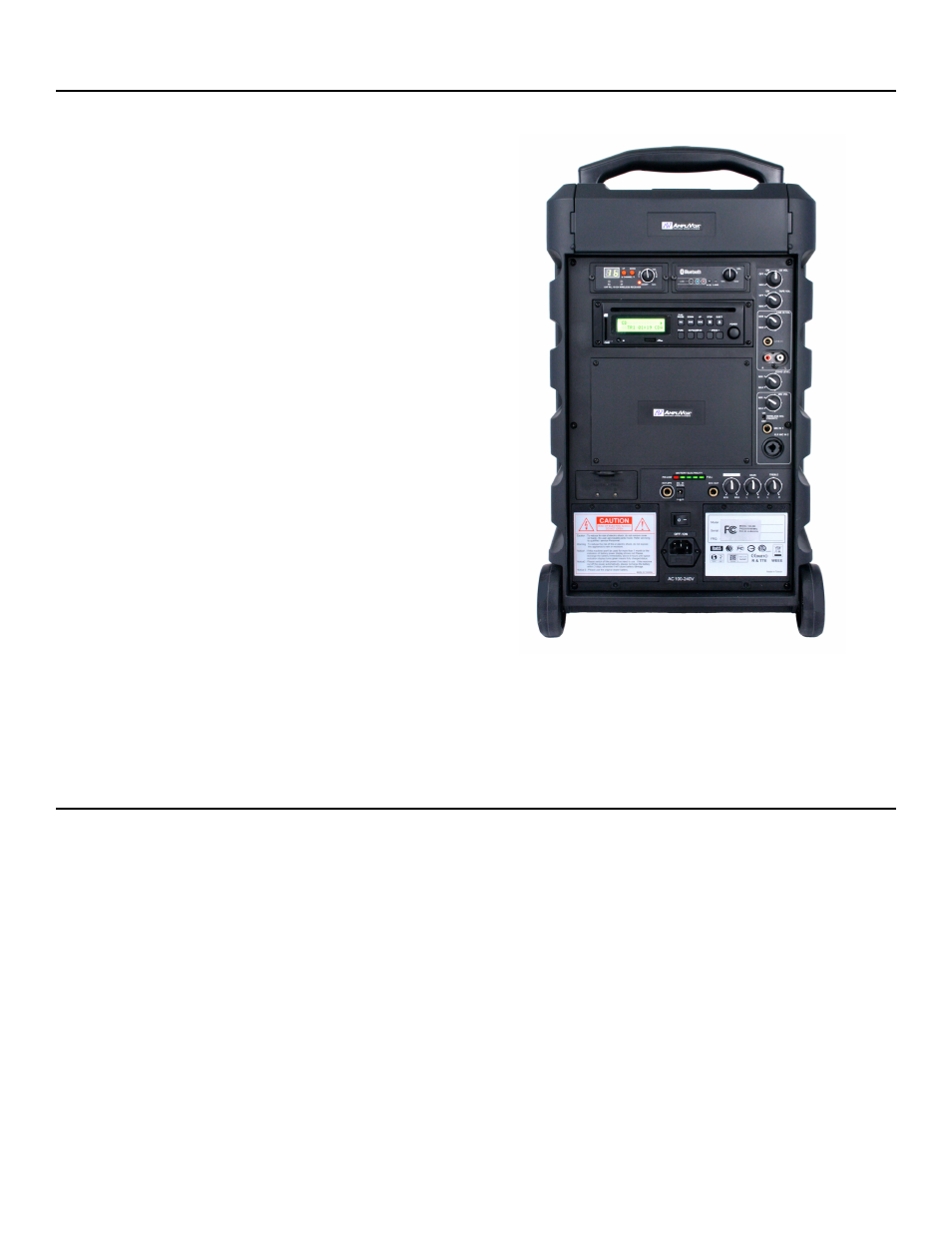

Getting Started/Quick Setup
SW800 SPECIFICATIONS
Rated Power Output 100W RMS
Speaker
8" Full Range
Battery (2) 12 volt rechargeable SLA, 5 AH,
User accessible and replaceable
AC Power 100-240 V Auto sensing, 50/60 Hz,
Wireless Range Up to 300 Feet
UHF Wireless Frequency 678—697 MHz
Frequency Response: 40Hz to 20Khz
Sensitivity 96dB
Equalization (tone) Separate Bass and Treble
Line output: Buffered, 600 ohm, 1/4in.jack (pre fader)
Microphone Input: 1/4" and Balanced Combo
XLR / 1/4"
Weight: 35 lbs.
Dimensions (HWD ): 20" H x 13" W x 11" D
Extension Handle: 21 1/2"
Warranty 1 year Limited Warranty;
Remote Control, Wireless
Microphones, Wireless Receiver,
Bluetooth Module, CD / Media
Player, Rechargeable SLA
Batteries.
PLEASE NOTE: THE REMOTE DOES NOT
TURN THE UNIT ON OR OFF. YOU MUST
DO THAT ON THE CONTROL PANEL
