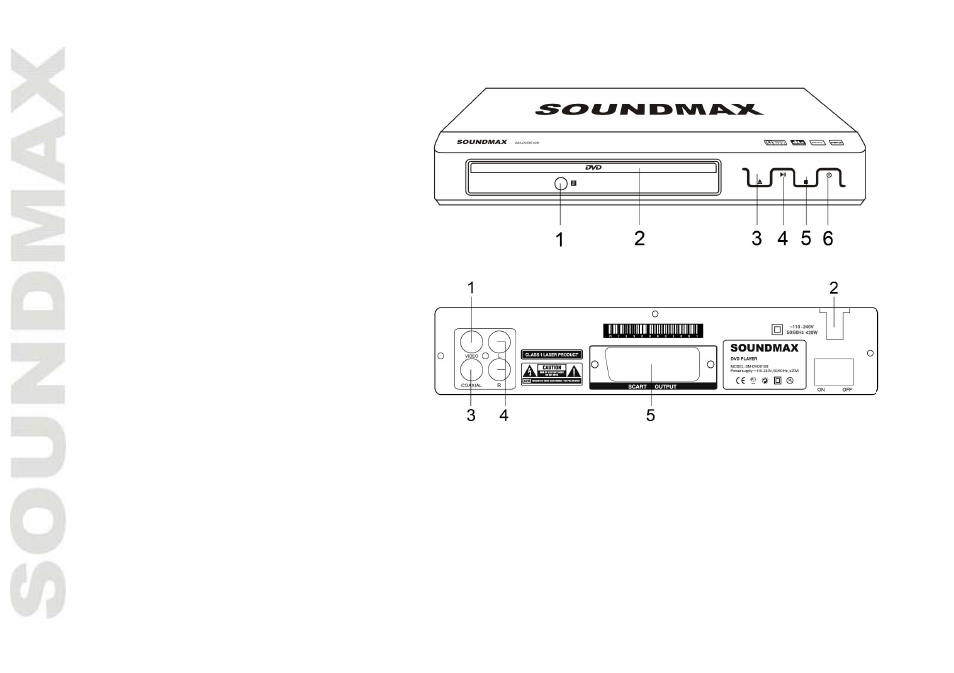

Control elements

Front panel

1. IR sensor
2. Disc tray

3. OPEN/CLOSE button
4. PLAY/PAUSE button

5. STOP button
6. POWER button

Rear panel
1. Composite video out

2. AC power cord
3. Coaxial out

4. Stereo audio out (Left/Right)
5. SCART connector
