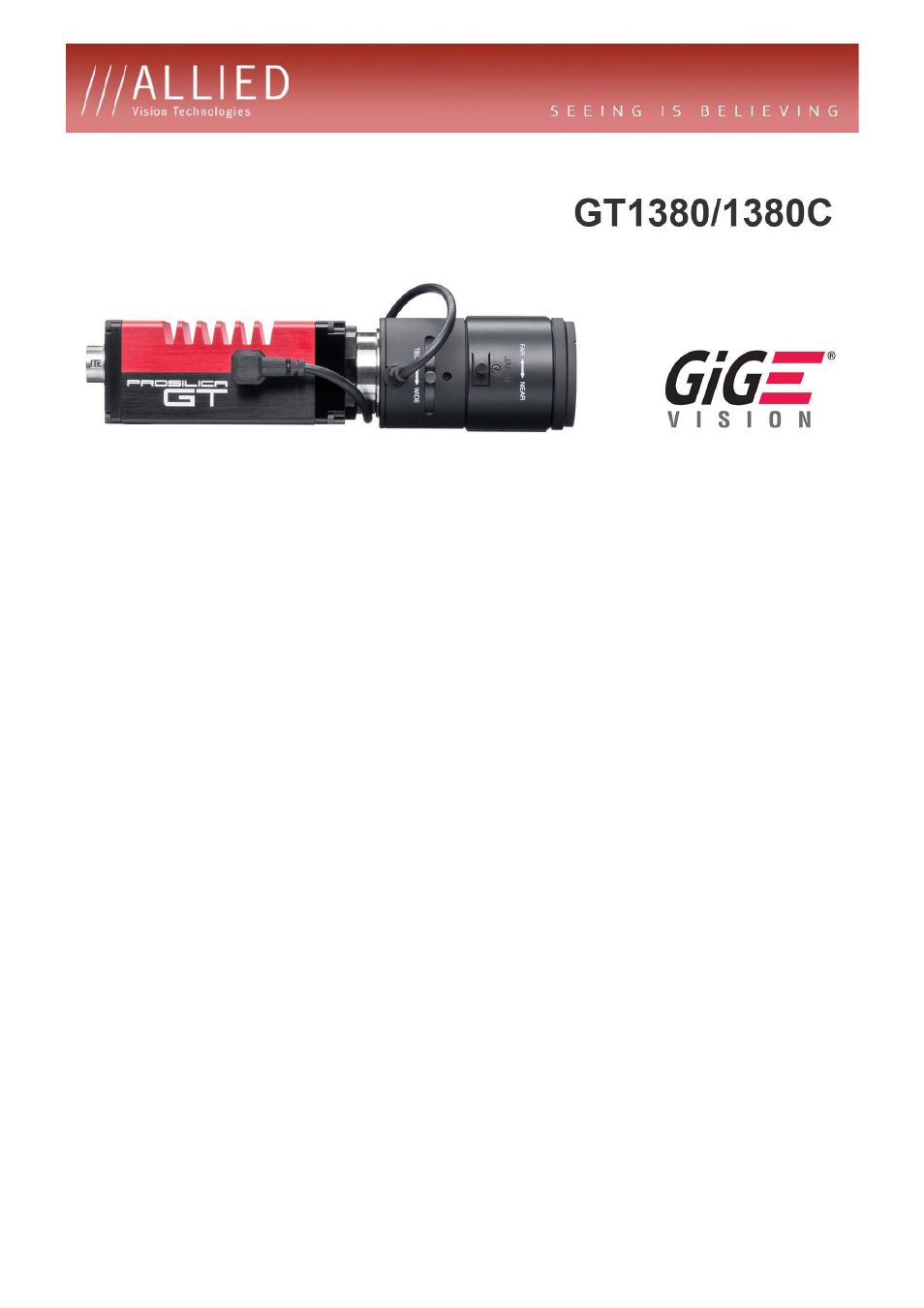

ALLIED Vision Technologies Prosilica GT1380 - Manual

Description
NEW: High sensitivity 1.4 Megapixel CCD camera for extreme environments
The Prosilica GT1380 is a 1.4 Megapixel camera with a Gigabit Ethernet interface (GigE
Vision®). The GT1380 is a rugged camera designed to operate in extreme environments and
fluctuating lighting conditions. The GT1380 offers Precise iris lens control allowing users to
fix the aperture size to optimize depth of field, exposure and gain without the need for
additional control elements. The GT1380 incorporates the incomparable Sony ICX285 CCD
sensor with EXview technology providing high-sensitivity, low noise, excellent antiblooming,
and superb image quality.
Sony ICX285 EXview CCD sensor
●
Auto Iris (P-Iris and DC)
●
Power over Ethernet (PoE)
●
Ethernet surge suppression
●
Gamma, multiple LUT, color correction
●
Metadata (Chunk data)
●
Clock synchronization (IEEE1588)
●
Wide operating temperature range
●
Global shutter (digital shutter)
●
Camera and sensor temperature monitoring
●
Models:
●
GT1380, 1360 x 1024, 30 fps, CCD mono
❍
GT1380C, 1360 x 1024, 30 fps, CCD color
❍
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-gt/gt1380.html 1
