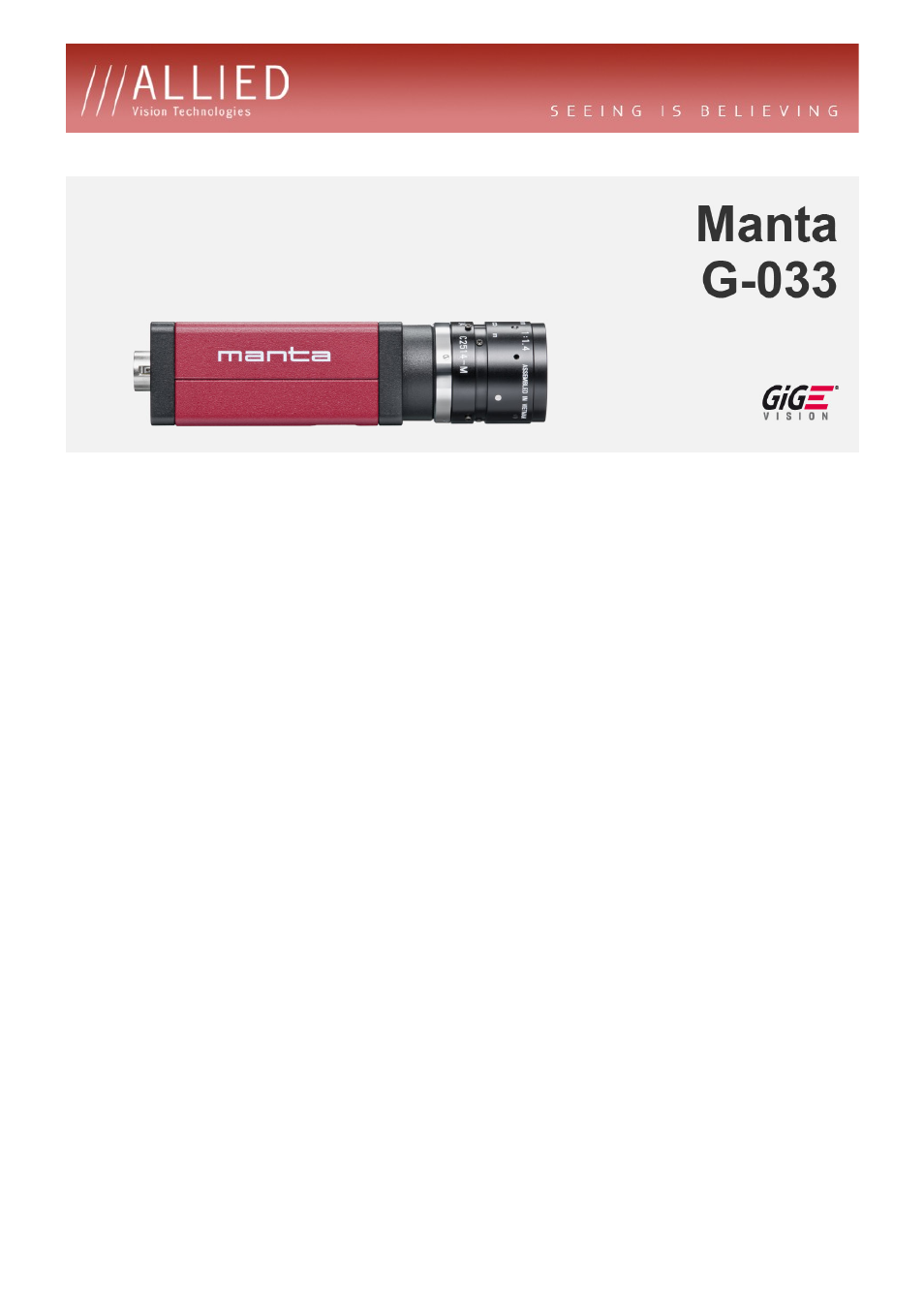

ALLIED Vision Technologies Manta G-033 User Manual
Description, Gige vision camera, sony icx414, poe option, Trigger

Description
GigE Vision camera, Sony ICX414, PoE option
The Manta G-033B/C is a VGA GigE Vision camera with the Sony ICX414 CCD sensor. It runs
at 88 fps (full resolution). With a smaller ROI, higher frame rates are possible.
It incorporates three LUTs, sophisticated color correction algorithms, a robust metal housing,
and many modular options like angled heads or board level versions. Manta cameras cover a
wide range of imaging applications. The Manta is optionally available with PoE (Power over
Ethernet).
Sony ICX414 (type 1/2), 0.3 Megapixels
●
Trigger
●
External trigger event: rising/falling/any edge, level high/low
❍
External trigger delay: 0 to 60 seconds in 1 µs increments
❍
Sync modes
●
Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO
❍
Modular options
●
Various IR cut/pass filters
❍
CS-Mount
❍
Board level version
❍
Angled head
❍
White medical housing
❍
PoE (Power over Ethernet)
❍
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/manta/g-033bc.html
