Delta Controls D-Series TDSST User Manual
Technical datasheet, D-series flanged seals with extended diaphragm, D-series
D-Series
Models: S-T
www.delta-controls.com
Technical
Datasheet
TDS-ST-A: FEB 2014

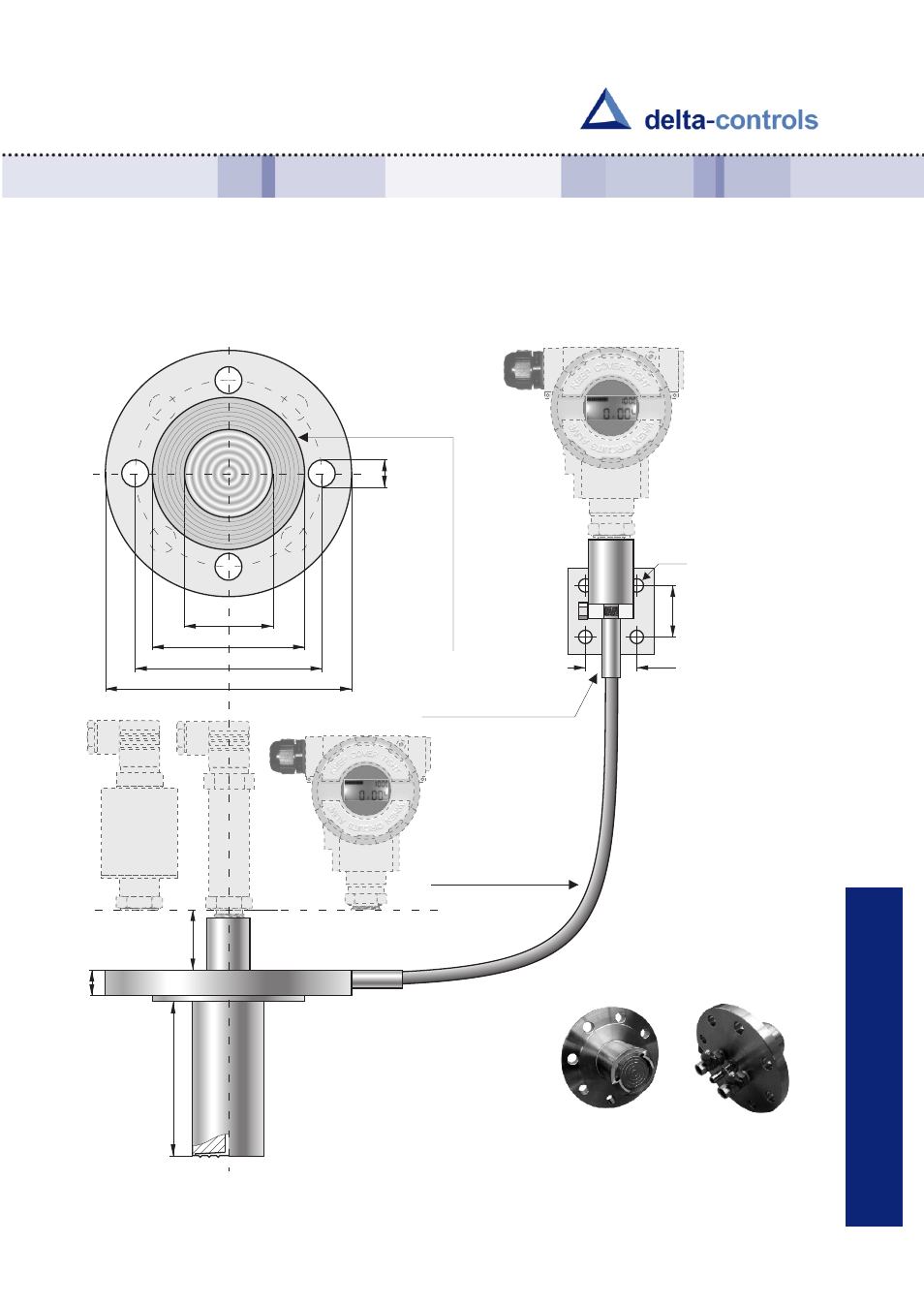

D-Series
Flanged Seals with Extended Diaphragm
Models: S-T
34.5
34.5
d
40
Dm
K
D
d1
T
L
4 Ч Ж9
Direct connection with:
smart and analog pressure and
differential pressure transmitters
DIN 2512 Form N standard contact face
(DN50 PN40)
DIN 2526 Form E standard contact face
(DN80 PN40, DN100 PN40)
Length of cover:
54 mm for capillary £ 3 m
84 mm for capillary > 3 m
Capillary from 1 to 3 m
(special versions up to 6 m)
Remote connection with:
smart and analog
pressure and differential
pressure transmitters
Diaphragm seal type S-TK-P- diaphragm
seal with direct diaphragm cleaning system
