ClimaCool CoolLogic Control System - Manual (Page 11)

11
www.climacoolcorp.com

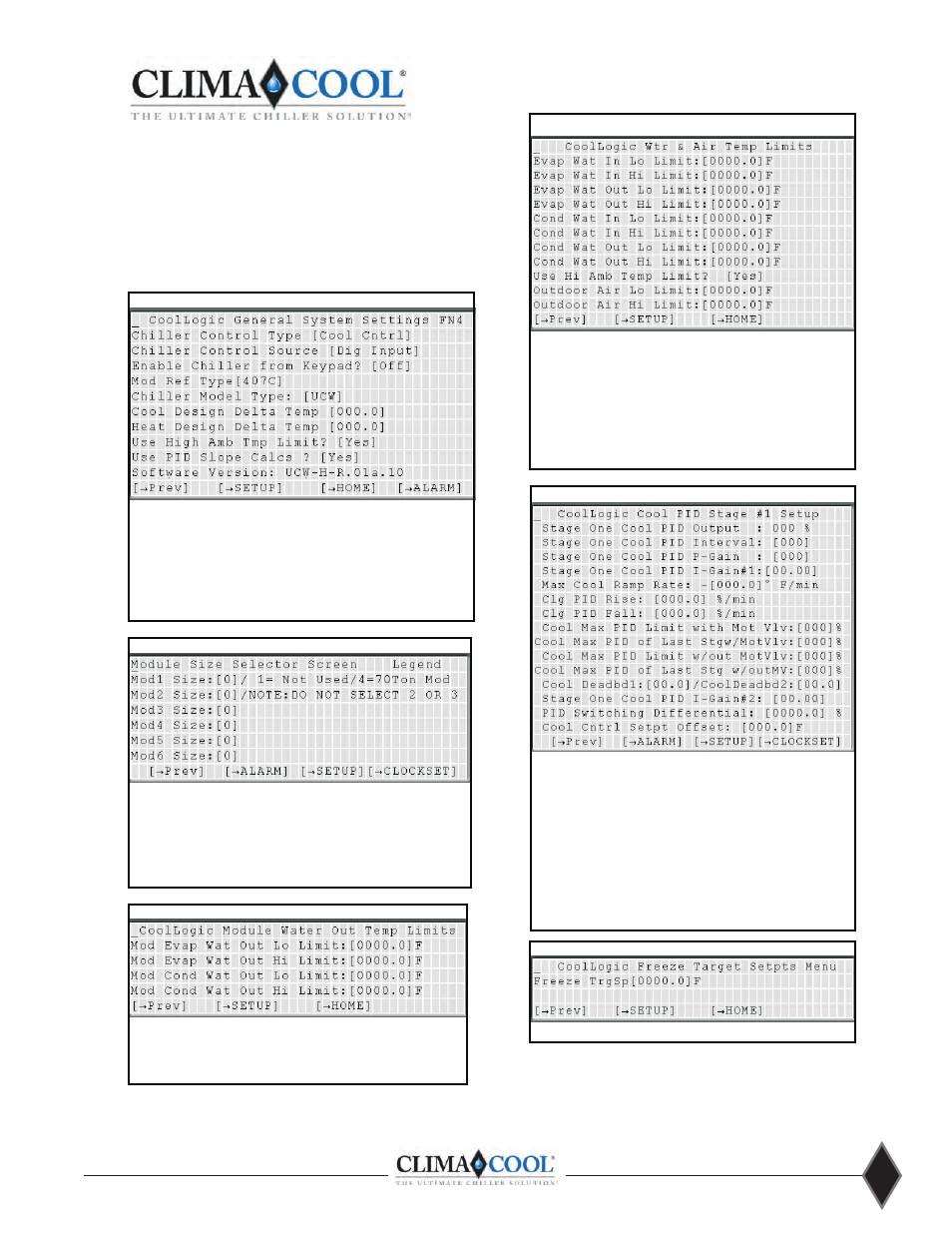

Start Up and Warranty Form:
CoolLogic Master Controller
Page 1 of 2
Project Name: ___________________________
________________________________________
Start-Up Date: ___________________________
Chiller # _______ Bank # _________
(FN+2)
Chiller Control Type …………………… _________________
Chiller Control Source ………………… _________________
Enable Chiller from Keypad?.……… _________
Module Ref Type ……………………….. ___________
Chiller Model Type …………………….. ___________
Cool Design Delta Temp …………….. _‐10.0______
Heat Design Delta Temp ……………. _10.0______
(FN+2) then “Module Size Selector”
Module1 Size…………………………………………….. _______
Module 2 Size …………………………………………… _______
Module 3 Size …………………………………………… _______
Module 4 Size …………………………………………… _______
Module 5 Size ………………………………………….… _______
Module 6 Size …………………………………………… _______
(FN+6) then “Module Water Out Temp Limits”
Module Evap Water Out Low Limit………. _________
Module Evap Water Out Hi Limit.…………. _________
Module Cond Water Out Low Limit………. _________
Module Cond Water Out Hi Limit…………. _______*_
(FN+8) then “Main Water & Air Temp Limits”
Evap Water In Low Limit……………………. ________
Evap Water In Hi Limit…………….…………. ________
Evap Water Out Low Limit…………………. ________
Evap Water Out Hi Limit………….…………. ________
Cond Water In Low Limit………….………… ________
Cond Water In Hi Limit………….……..……. ________
Cond Water Out Low Limit………….……… ________
Cond Water Out Hi Limit………….…………. ________
(FN+8) then “Cool PID Stage #1 Setup”
Stage 1 Cool PID P‐Gain………………….. ______
Stage 1 Cool PID I‐Gain…………………… ______
Cooling PID Rise ……………………………… ______
Cooling PID Fall………………………………. ______
Cool Central Setpoint Offset…………… ______
Stage 1 Heat PID P‐Gain.………………… ______
Stage 1 Heat PID I‐Gain………………….. ______
Heating PID Rise……………………………. ______
Heating PID Fall…………………………….. ______
Heat Central Setpoint Offset…………. ______
(FN+6) then “Freeze Target Setpoint Menu”
Freeze Target Setpoint…………….. ______
