ClimaCool UGW Optimized Quiet Screw - Manual (Page 4)

Contact your local ClimaCool representative or visit our web site at www.climacoolcorp.com to fi nd out more about the
UGW and other heating and cooling solutions that may fi t your application needs.

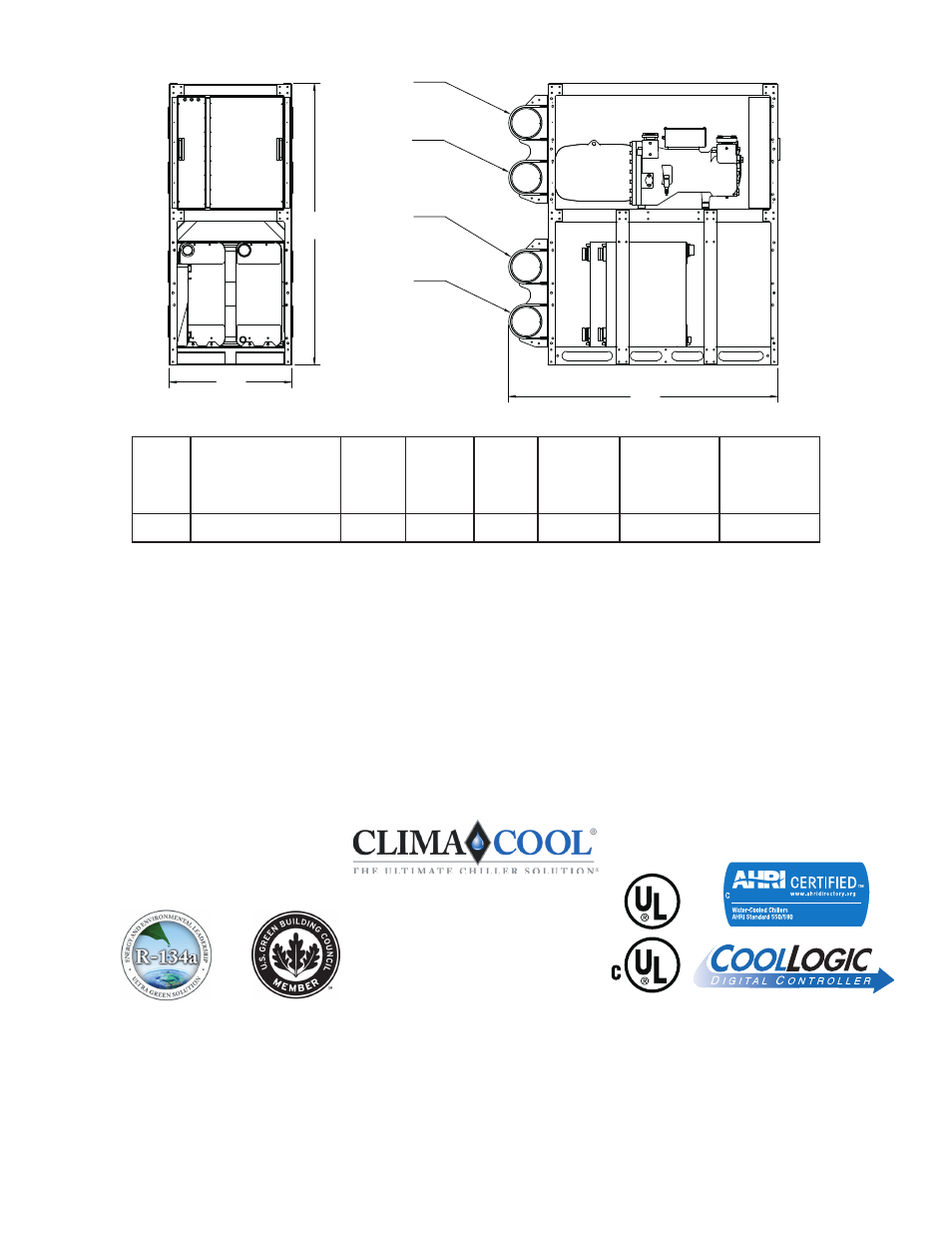

A
C
B
Chilled
Water Outlet
Chilled
Water Inlet
Condenser
Water Outlet
Condenser
Water Inlet
Doc# R134a-BROCHURE
ClimaCool works continually to improve its products. As a result, the design and specifi cations of each product at the time for order may be changed without notice
and may not be as described herein. Please contact ClimaCool’s Customer Service Department at (405) 815-3000 for specifi c information on the current design and
specifi cations. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are
merely ClimaCool’s opinion or commendation of its products.
AHRI Certifi ed™ is a trademark of the Air Conditioning, Heating, and Refrigeration Institute. ‘USGBC ® ’ and related logo is a trademark owned by the U.S. Green Building
Council ® and is used with permission.
ClimaCool is a subsidiary of LSB Industries, Inc. – NYSE symbol: LXU
© ClimaCool Corp. 2010 10/12
15 S. Virginia
Oklahoma City, OK 73106
Phone: 405-815-3000
Fax: 405-815-3052
www.climacoolcorp.com
Model
UGW
Voltage
A
Unit
Width 3
(in.)
B
Unit
Height 3
(in.)
C
Unit
Depth 3
(in.)
Unit
Weight 1
(lb.)
Operational
Weight 2
(lb.)
Header
Connection
(in.)
80 208/230/460/575/3/60 34 ³⁄4 78 75 2,995 3,390 8
Notes:
1. Shipping weight includes refrigerant charge, compressor oil and packaging.
2. Operational weight includes refrigerant charge, compressor oil and water.
3. 208/230v module has external variable frequency drive which will add to module dimensions. Please consult the
Product Catalog or Installation, Operation & Maintenance Manual.
