Installation Instructions RFM Series
5

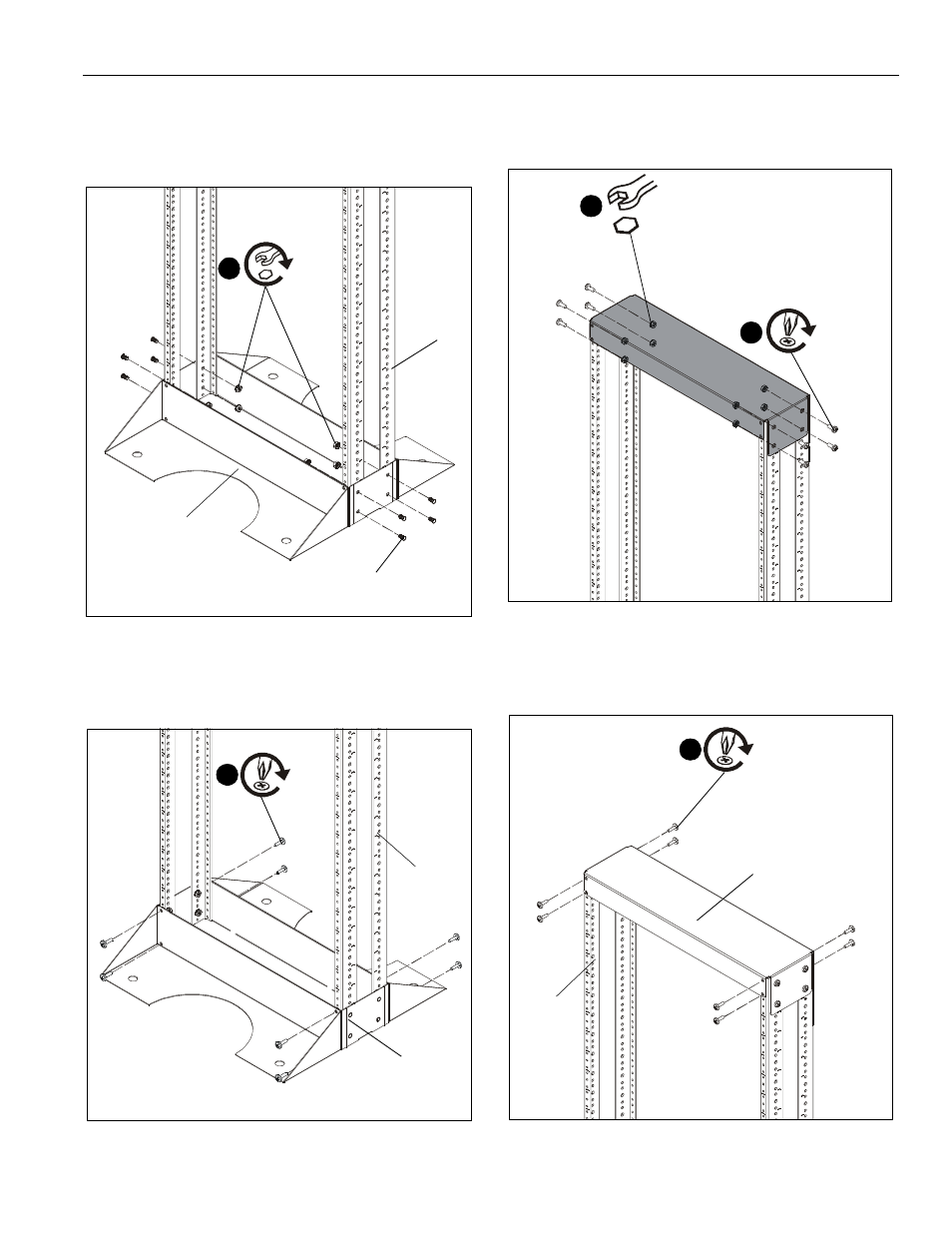

ASSEMBLY
1. Use eight press-in studs (H) and 1/4-20" lock nuts (G) to
secure four rack rails (C) to rack base (B). (See Figure 1)
Figure 1
2. Use eight screws with washers (F) to fully secure four rack
rails (C) to rack base (B). (See Figure 2)
Figure 2
3. Use eight screws with washers (F) and eight 1/4-20" lock
nuts (G) to secure four rack rails (C) to rack top (A). (See
Figure 3)
Figure 3
4. Use eight screws with washers (F) to fully secure four rack
rails (C) to rack top (A). (See Figure 4)
Figure 4
(G) x 8 1
(C) x 4
(B)
(H) x 8
(C) x 4
(B)
(F) x 8 2
(G) x 8 (under rack top)
3
3
(F) x 8
(F) x 8 4
(A)
(C) x 4
