Installation Instructions J-Series
5

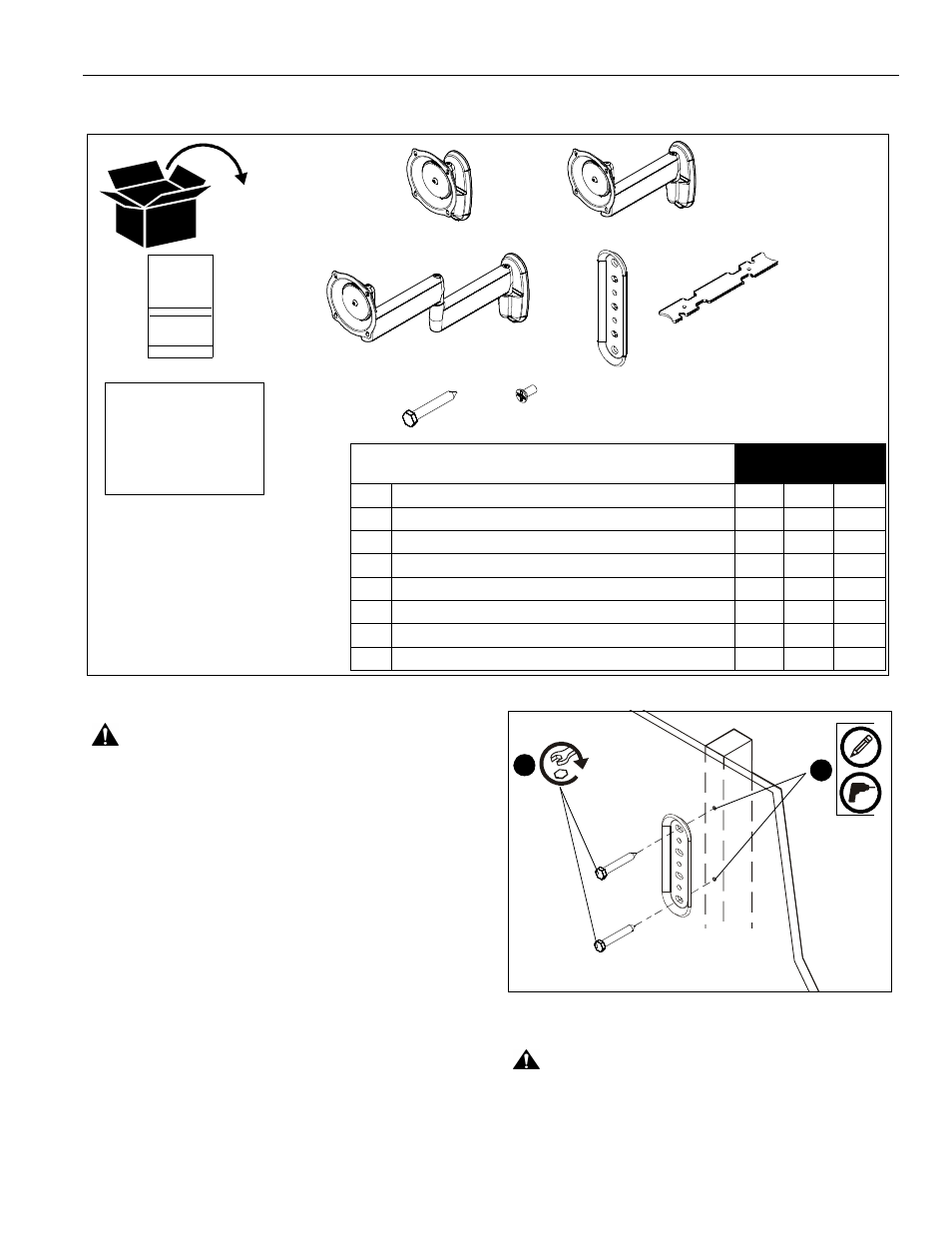

PARTS
INSTALLATION
WARNING: FAILURE TO PROVIDE ADEQUATE
STRUCTURAL STRENGTH FOR THIS MOUNT CAN
RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE
TO EQUIPMENT! It is the installer’s responsibility to make
sure the structure to which this mount is attached can support
five times the combined weight of the mount and all
equipment attached to it. Reinforce the structure as required
before installing the mount.
1. Determine location for mount keeping in mind display size,
extension, height adjustment (if applicable), and pitch/roll
requirements.
NOTE: Wall plate (D) MUST be installed into wood stud.
2. Using wall plate (D) as a template, mark then drill two 1/4"
diameter x 3" deep pilot holes through top and bottom holes
of wall bracket into wall structure. (See Figure 1)
3. Install two 3/8" x 3" hex head lag screws (F) through wall
plate (D) and drywall into wood stud. (See Figure 1)
4. Ensure wall plate (D) is vertical, then tighten screws (D).
Figure 1
CAUTION: Overtightening screws may cause wall bracket
to compress into soft wall surface, resulting in difficult mount
installation or improper engaging of set screw in later step.
A
B
C
D E
F
G
Interface
Bracket
Kit
(Including Hardware)
x 1
x1
I/M
QUANTITY By
MODEL
ITEM DESCRIPTION JWP JWS JWD
A PIVOT PITCH WALL MOUNT 1 - -
B SINGLE ARM WALL MOUNT - 1 -
C DUAL ARM WALL MOUNT - - 1
D J-SERIES WALL PLATE 1 1 1
E CABLE MANAGEMENT COVER - 1 2
F HEX HEAD LAG SCREW, 3/8" X 3" 2 2 2
G PHILLIPS FLAT MACHINE SCREW, 8-32 X 3/8" - 2 4
2
3 (F) x 2
