MCB1U / LCB1U Installation Instructions
10
Installing Covers
1. Install two interface bracket covers (GG) over the top and
bottom of each interface bracket. (See Figure 13)
NOTE: Be sure to line up tabs inside the bracket covers with
holes on sides of interface brackets. (See Figure 13)

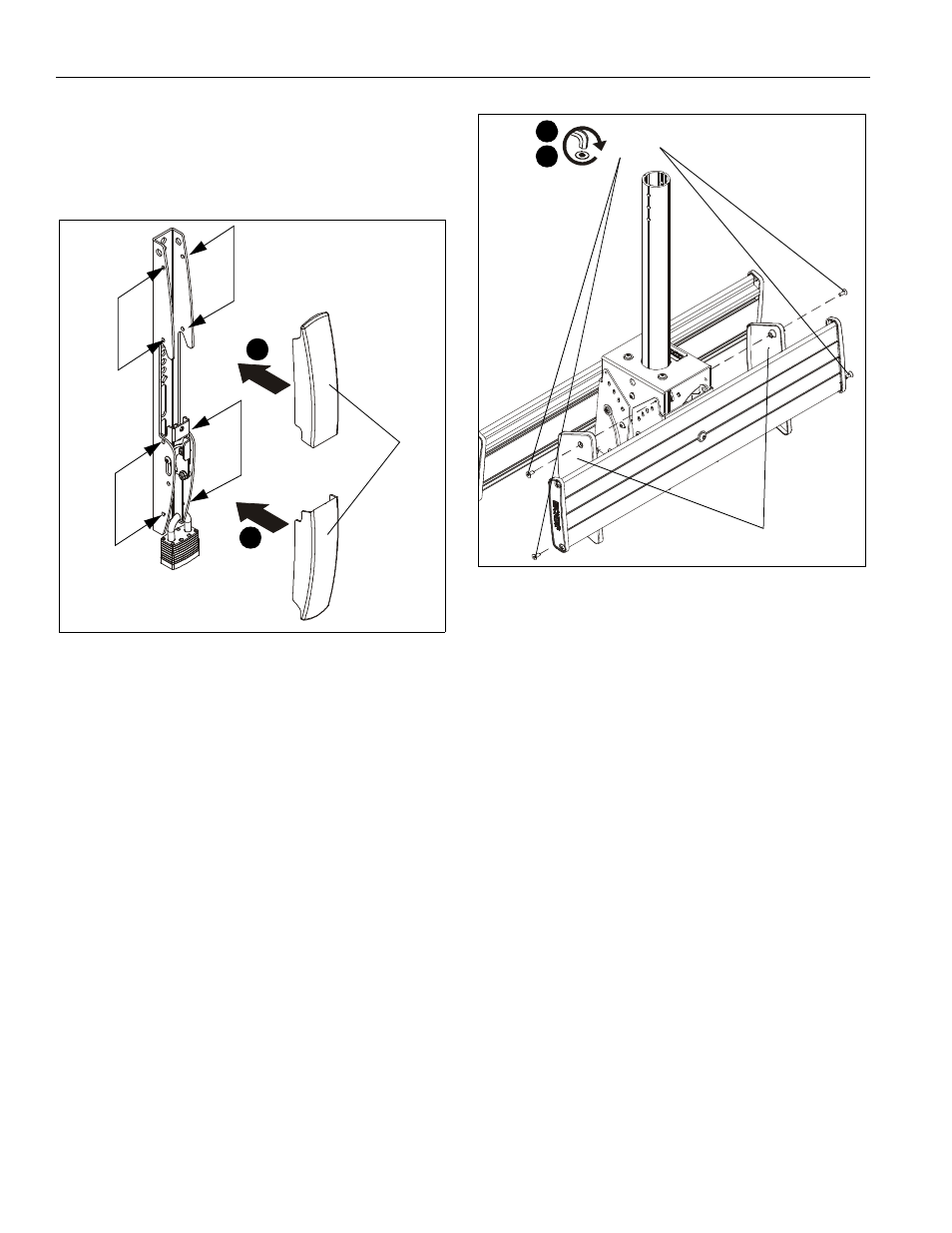

Figure 13
2. Install one side cover (EE) onto side of ceiling mount using
two 10-24 x 1/2" flat head screws (W). (See Figure 14)
3. Repeat for other side of ceiling mount.
4. Repeat Steps 2 and 3 for other mounting rail on opposite
side of mount.
Figure 14
1
1
(GG)
(EE)
(W) x 4
2
3
