CHIEF SSBU-SSMU Interface - Manual (Page 5)

SSBU/SSMU Installation Instructions
5

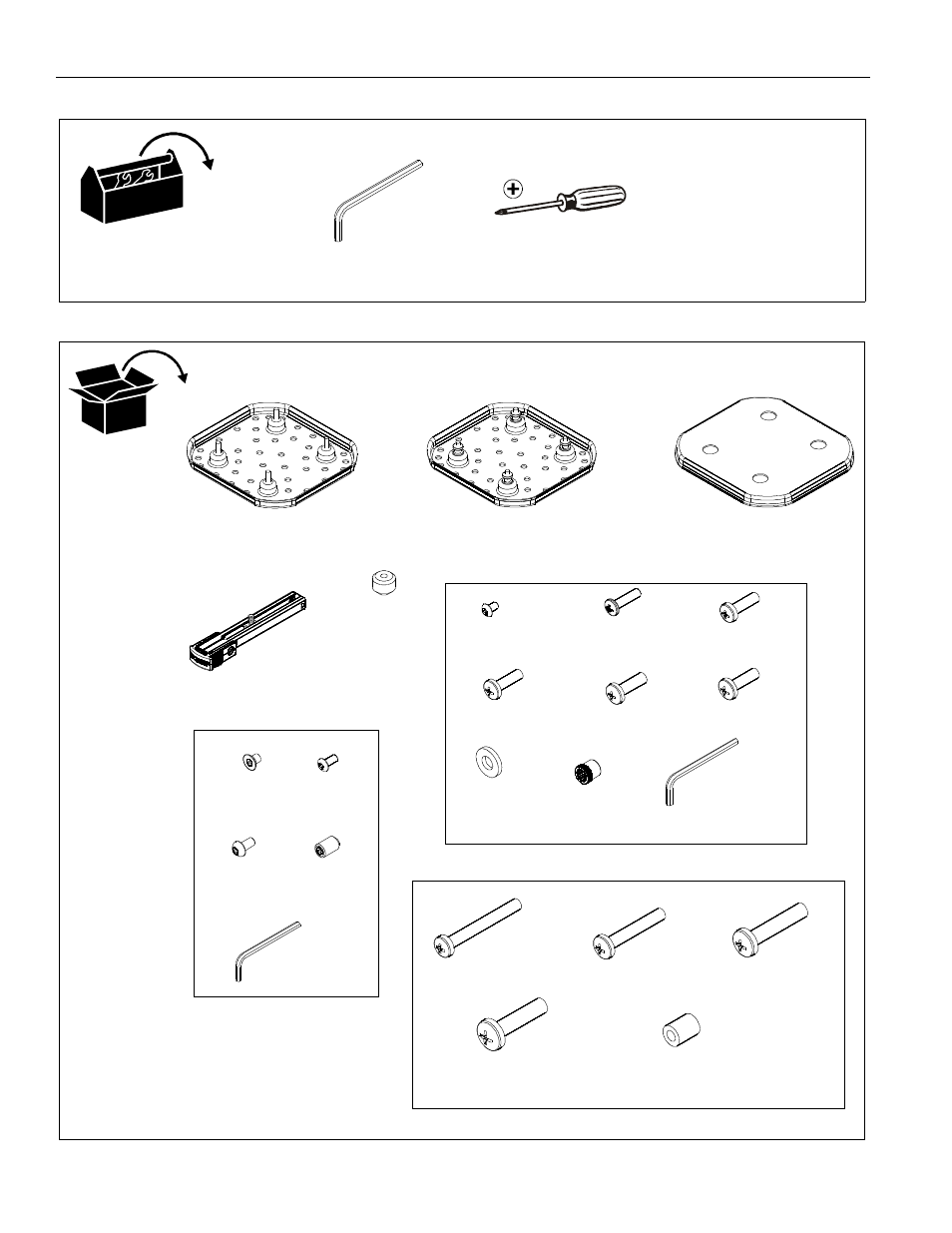

TOOLS REQUIRED FOR INSTALLATION
PARTS
#2
1/4" (included)
5/32" (security) (included)
A (1) A (1)
D (4)
[Thumb nut]
B (1)
[Base plate bracket]
(SSBU only)
[SSBU interface plate]
[SSMU interface plate]
(OR)
C (4)
[SSBU/SSMU leg]
[Universal Projector Interface Hardware Kit]
[Universal Hardware Kit - Long Screws]
1/4" S (4)
M (4)
Q (4)
M6 x 14mm
R (4)
M4
1/4-20
L (4)
M2.5 x 10mm
M3 x 10mm
N (4)
M4 x 10mm
P (4)
M5 x 14mm
T (1)
K (4)
8-32 x 1/4"
U (4)
M3 x 25mm
V (4)
M4 x 25mm
W (4)
M5 x 25mm
X (4)
M6 x 25mm
Y (4)
.500 x .257 x .625
F (4)
8-32 x 3/8"
5/32" (security)
J (1)
E (2)
10-24 x 1/4"
G (4)
10-24 x 3/8"
[All Points Security Kit]
H (1)
5/16-18 x 1/2"
[SSBU Only] [SSBU Only]
[SSBU Only] [SSBU Only]
