FSP Series Installation Instructions
6
4. Insert four 1/2" x .194 x 1/2" nylon spacers (C).
(See Figure 3)
5. Secure tilt bracket to FSP (A) using four 10-24 x 1" Phillips
head screws (B). (See Figure 3)

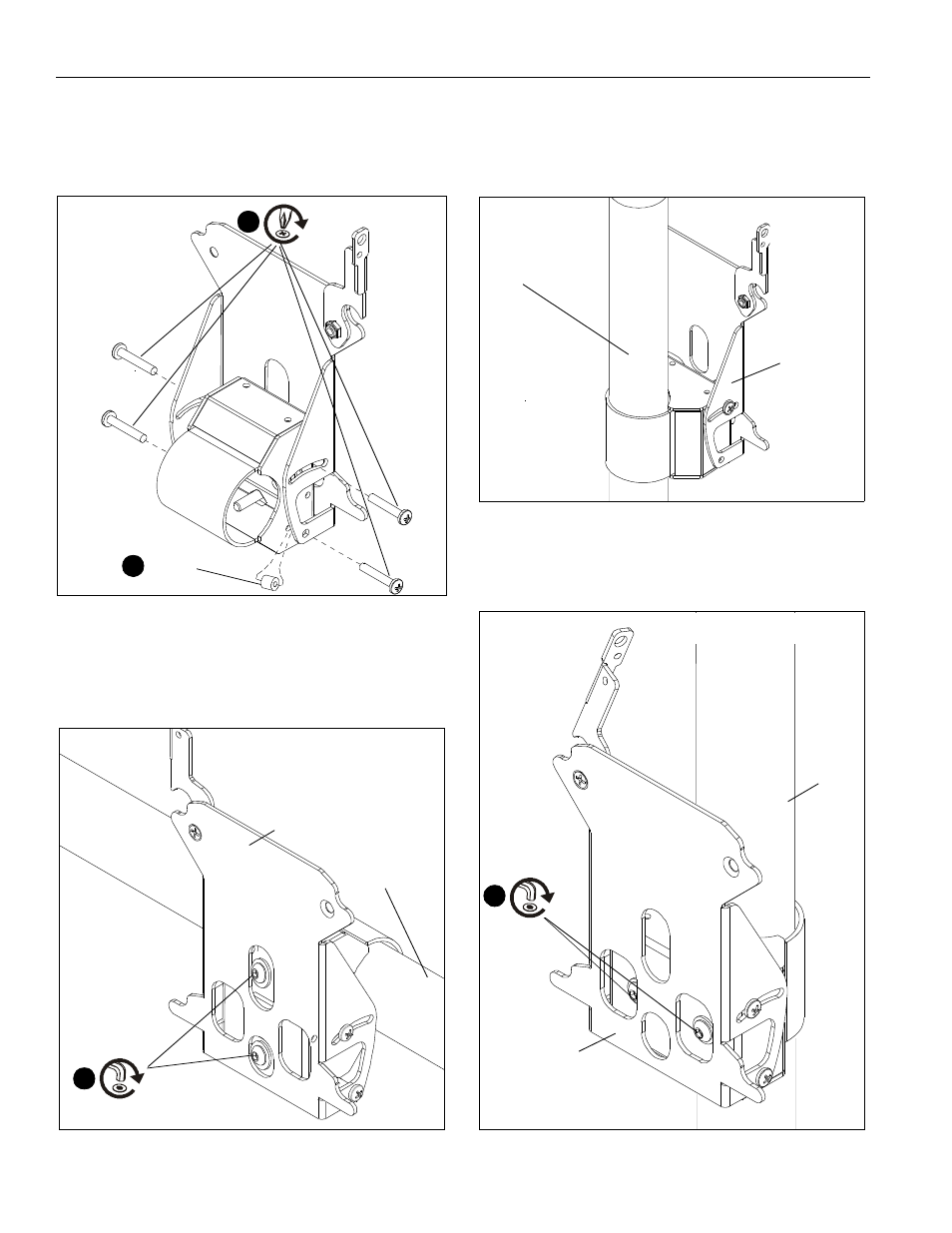

Figure 3
6. Slide FSP (A) onto a 1-1/2" to 2" O.D. pipe for horizontal
mounting.
7. Secure FSP (A) to pipe by tightening two button head cap
screws already in place in FSP. (See Figure 4)
Figure 4
Vertical Installation
The FSP assembly ships configured for vertical pole mounting.
1. Install the FSP (A) on 1-1/2" to 2" O.D. pipe (not included).
(See Figure 5)
Figure 5
2. Secure FSP (A) to pipe by tightening two button head cap
screws already in place in FSP (See Figure 6)
Figure 6
(B) x 4 5
(C) x 4 4
Note:
Pole not shown
for clarity
(A)
7 x 2
Horizontal Configuration
Pipe
(A)
Pipe
x 2
(A)
2
Pipe
Vertical Configuration
