Remote Control Capabilities
The remote control has a range of 20-30ft (6-9m), and is
powered by 2 AAA batteries that are accessed from the back of
the remote.
NOTE:
If operation of the mount is required at a greater
distance than remote control will allow, the mount can
be controlled through other methods.

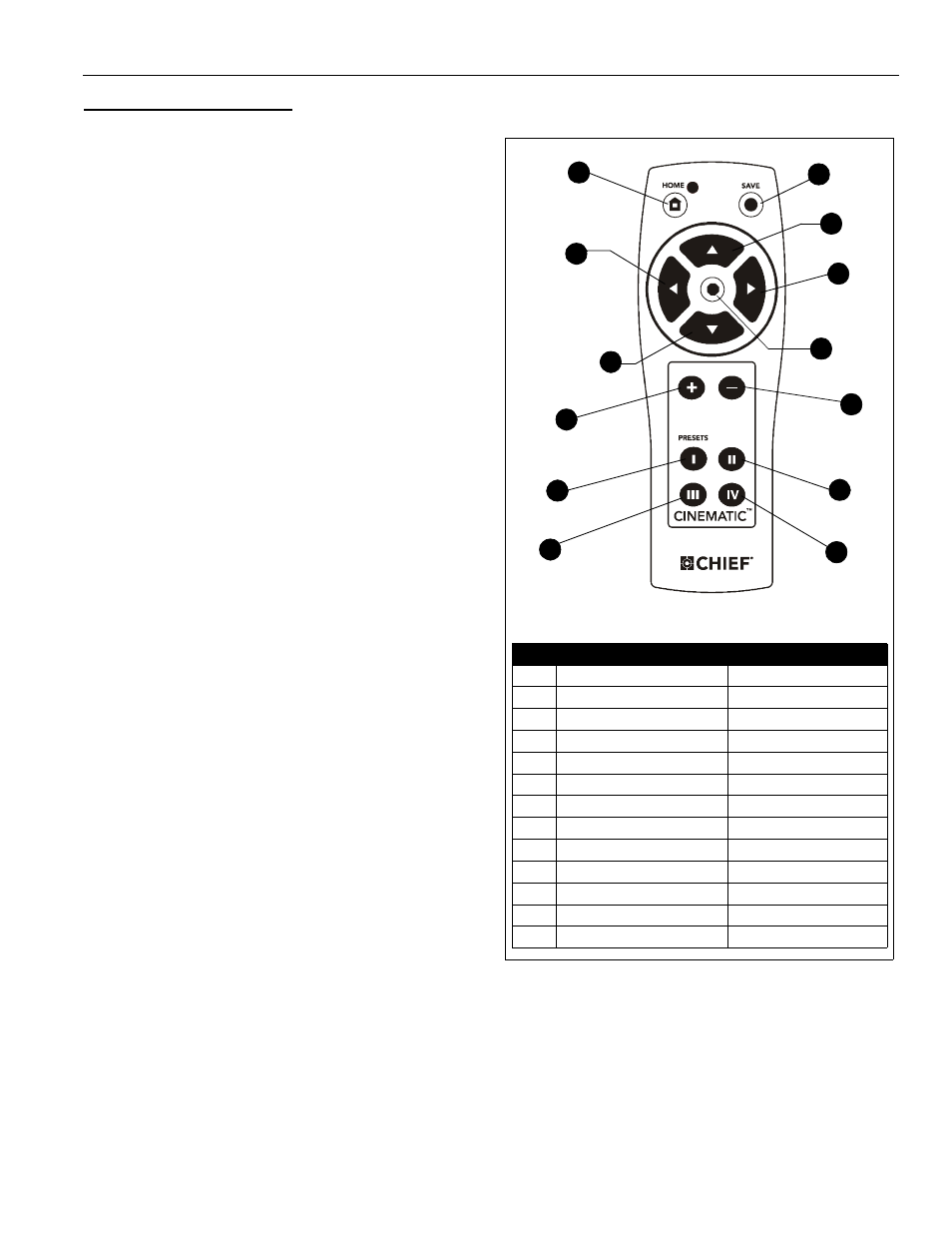

The following table and illustration identify mount functionality
and response by button on the remote control.
Normal Operating Mode
Figure 27
KEY
FUNCTION
REQUIRED ACTION
1
NOT USED
N/A
2
NOT USED
N/A
3
RETRACT PROJECTOR
PRESS ONCE
4
NOT USED
N/A
5
STOP
PRESS ONCE
6
NOT USED
N/A
7
EXTEND PROJECTOR
PRESS ONCE
8
NOT USED
N/A
9
NOT USED
N/A
10
NOT USED
N/A
11
NOT USED
N/A
12
NOT USED
N/A
13
NOT USED
N/A
1
2
3
4
5
6
7
8
9
10
11
12
13
