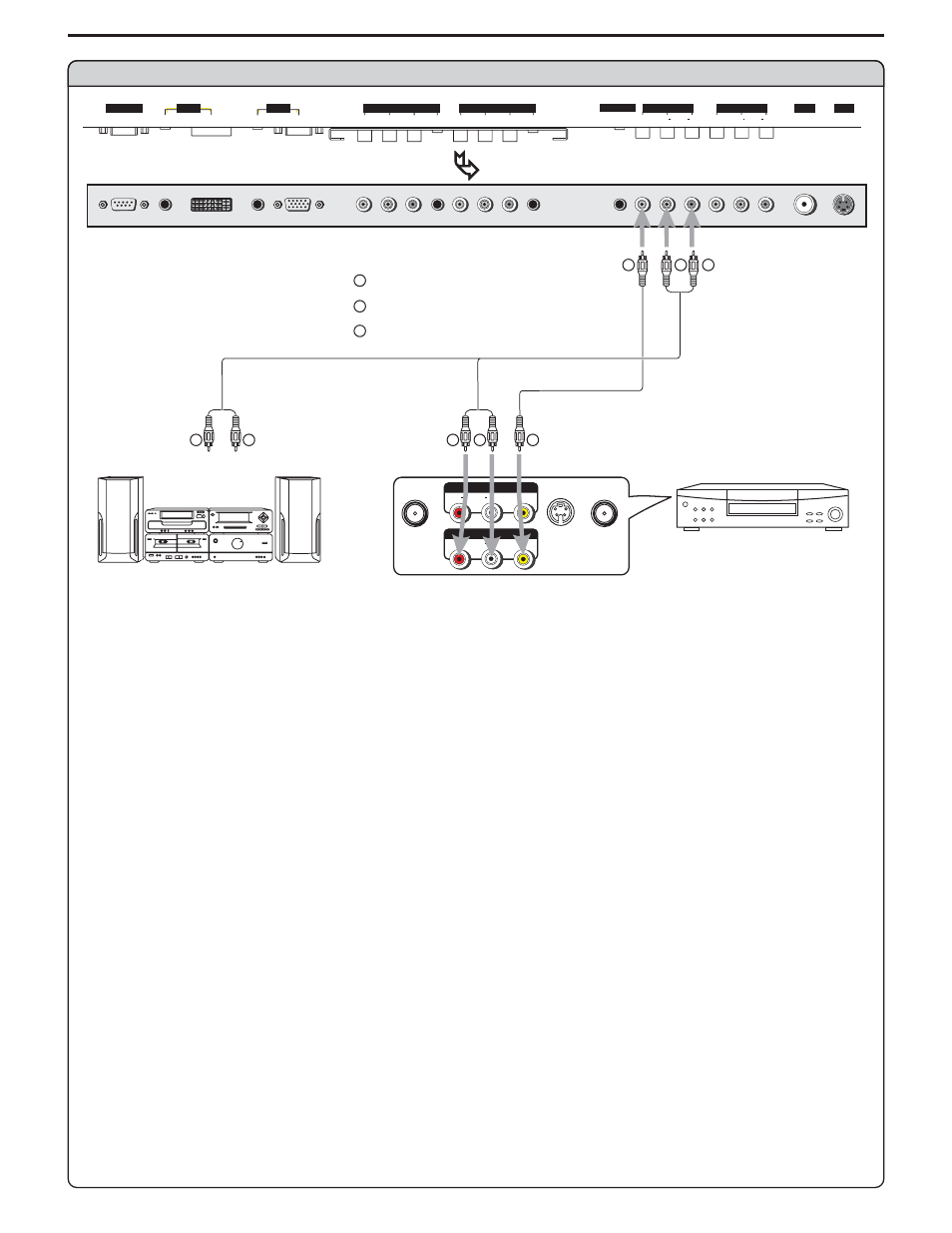

Connect a VCR (for recording) or external amplifier
W Y R
VCR for recording
W Y R
Yellow (VIDEO)
White (AUDIO L)
Red (AUDIO R )
W
Y
R
AV OUT
R L VIDEO AUDIO S-VIDEO
ANT IN ANT OUT
AV IN
R L VIDEO AUDIO
Rear of the VCR
Connect the / cables between the Audio (L/R)/Video jacks on the unit and VCR. Audio Video
How to connect:
1. Turn on your PDP TV, select AV or TV source you wish to record.
2. Turn on your VCR, insert a videotape for recording.
3. Press the Record button to begin recording.
To record program
Audio
cable Video
cable
External Amplifier
W R
Audio
cable
Connect the Audio cables between the Audio (L/R) jacks on the unit and external amplifier.
- or -
To Audio inputs
1. Turn on your PDP TV, select AV or TV source.
2. Turn the main volume of the amplifier to minimum.
3. Turn on the amplifier and adjust for a proper volume.
Note:
The operations of the amplifier may be different depending on model. Please read the user manual of
your amplifier to confirm proper operation.
The AV output terminals output audio/video signal inputted from Antenna input or AV inputs only.
Connections
(continued)
D-SUB SVHS HEADPHONE RF
PIC AUDIO PIC AUDIO
DVI AV OUTPUT AV INPUT CONTROL COMPONENT INPUT 1 COMPONENT INPUT 2 D-SUB
AUDIO AUDIO C /P r r C /P r r C /P b b C /P b b Y Y VIDEO VIDEO R L AUDIO R L AUDIO
BOTTOM VIEW
17
To enjoy high-quality sound through an external amplifier
