Connect a PC
How to connect:
1. Turn on your PDP TV , press button on the
remote control.
SOURCE
2. Press to select .
3. Press to confirm.
VOL+/- A
ENTER
(VGA)
To Watch the PC screen
Audio
cable

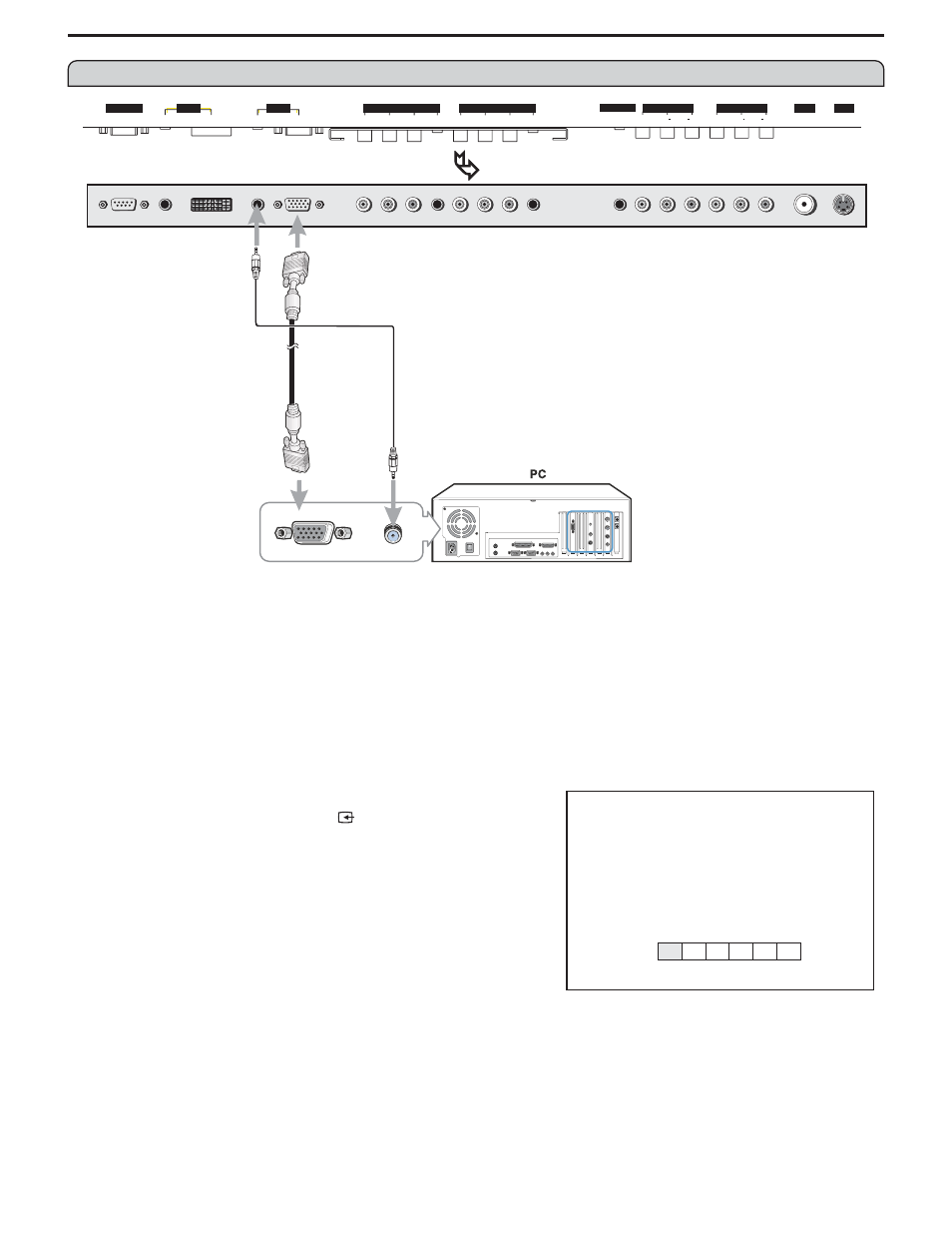

Connect a VGA cable between the VGA jack on the PC and the VGA input jack on the unit.
Connect an Audio cable between the AUDIO output on the PC and AUDIO input jack on the unit.
VGA
cable
Connections
(continued)
D-SUB SVHS HEADPHONE RF
PIC AUDIO PIC AUDIO
DVI AV OUTPUT AV INPUT CONTROL COMPONENT INPUT 1 COMPONENT INPUT 2 D-SUB
AUDIO AUDIO C /P r r C /P r r C /P b b C /P b b Y Y VIDEO VIDEO R L AUDIO R L AUDIO
BOTTOM VIEW
A D C1 C2 TV AV
VGA
source
