7 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)
Uninstalling the Light Fixture
7-12. To uninstall the light fixture, first disconnect the plug connectors
between the black wire and the black wire with a white
stripe.
7-13. Disconnect the plug connectors between the two white
wires.
7-14. Uninstall the connector and washer from the end of the
light fixture inside the lower switch housing.
7-15. Unscrew the threaded rod of the light fixture from the lower
switch housing.
7-16. Remove the light fixture from the lower switch housing
pulling disconnected wires through the hole in the center of
the lower switch housing.
Note: When removing the wires, pull the thin plug
connector (male) through first, and then pull the other plug
connector (female) through the hole.
7-17. Install the dummy terminals (included in the sack parts) on
the two disconnected wires in the lower switch housing.
7-18. Install the switch housing cap and plug button to the lower
switch housing.
7-19. Once you have uninstalled the light fixture, continue with
step 7-1.
Lower Switch
Housing
Threaded Rod

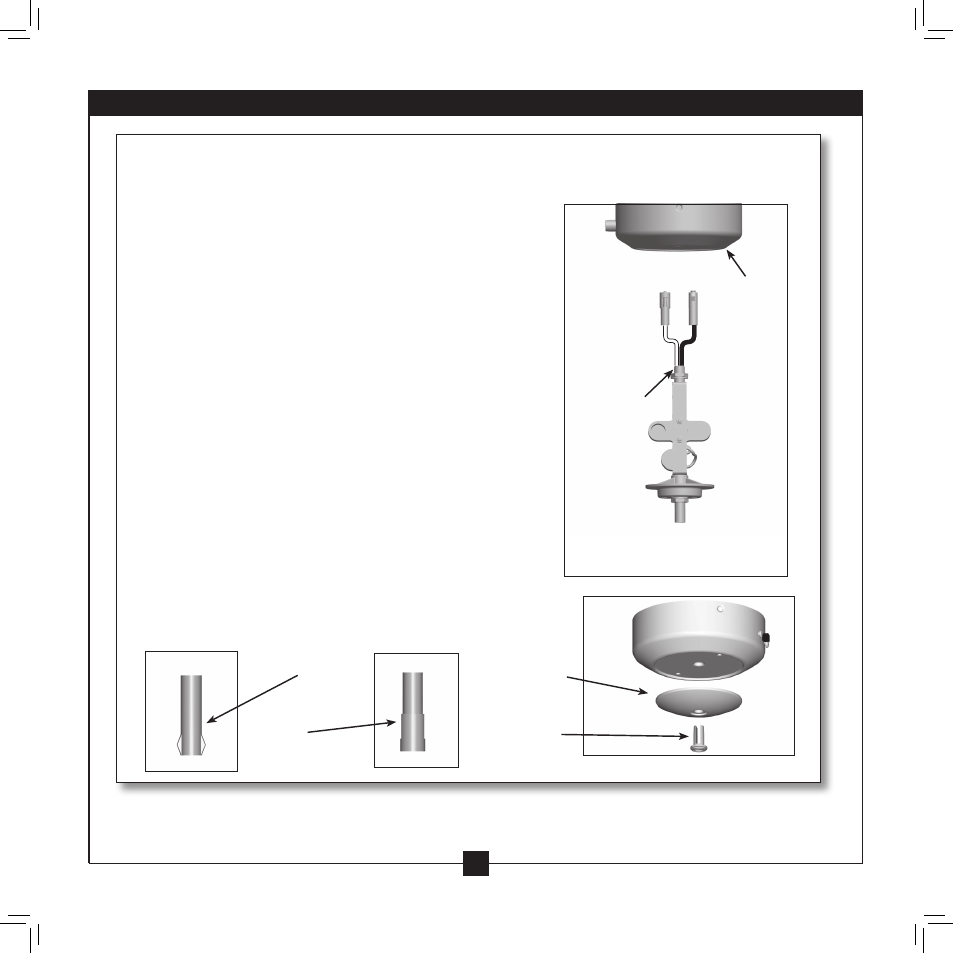

Steps 7-12 – 7-14
Male Dummy
Terminal
Female Dummy
Terminal
Step 7-18
Cap
Plug Button
