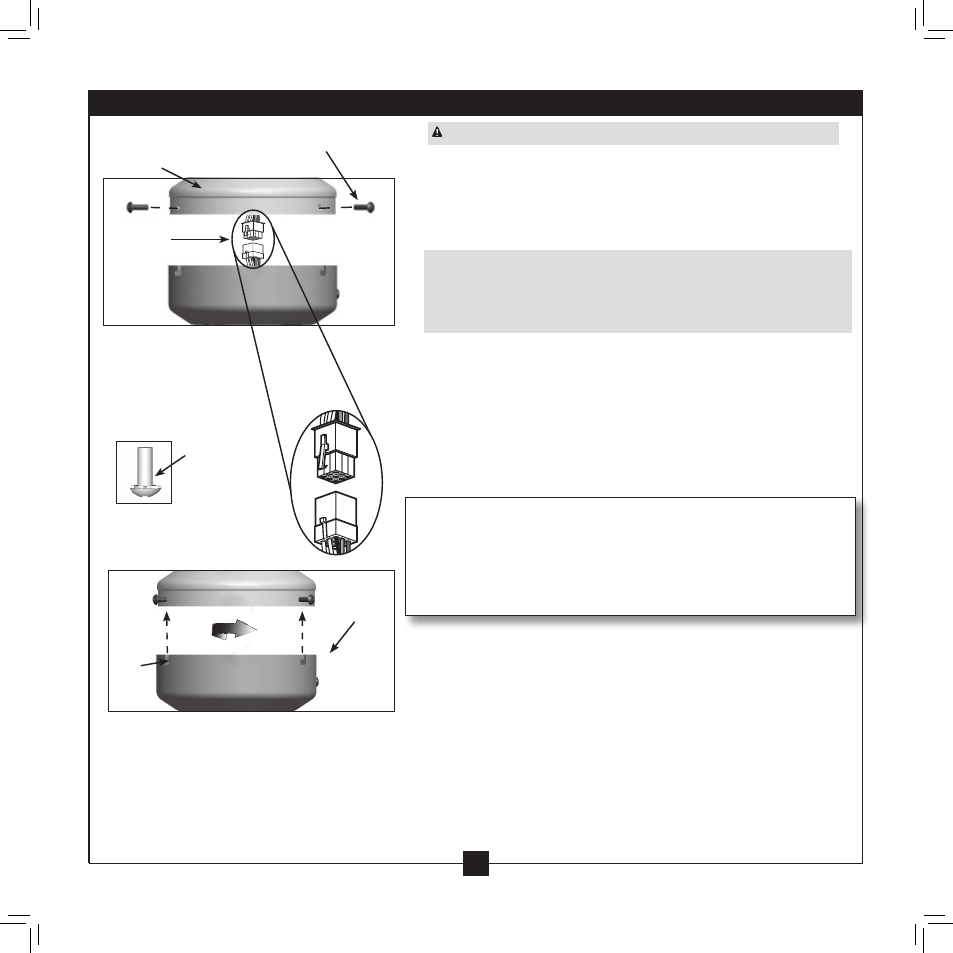

Steps 7-1 – 7-2
Housing
Assembly
Screw
Upper Switch
Housing
Housing
Assembly Screw
Lower Switch
Housing
Plug
Connector
Notch
Steps 7-3 - 7-5
WARNING: Use only the light fixture supplied with this fan model.
7-1 . To attach the lower switch housing assembly to the fan, partially
install two housing assembly screws into the upper switch
housing.
7-2. Connect the upper plug connector from the motor to the lower
plug connector in the lower switch housing assembly.
Note: Both plug connectors are polarized and will only fit together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
7-3. Align the notches in the sides of the lower switch housing with
the screws on the upper switch housing. Twist the lower switch
housing assembly clockwise to lock the screws in place.
7-4. Install the third housing assembly screw.
7-5. Tighten all three screws securely.
7 • Completing Your Installation With or Without a Bowl Light Fixture
Note: In compliance with US federal energy regulations, this
ceiling fan contains a device that restricts its light output.
Exceeding the wattage limit marked on the MAX wattage
sticker affixed to the light socket(s) may result in fire hazard
or improper operation.
