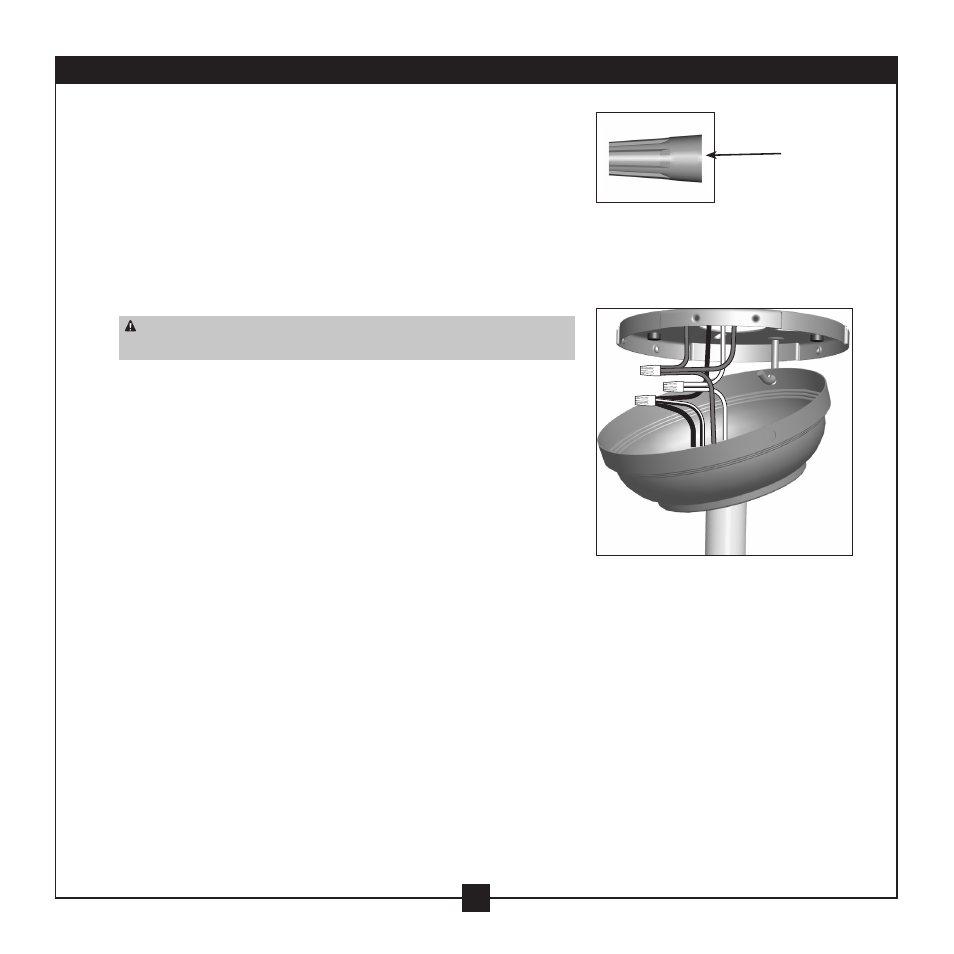

4 • Wiring the Fan
Wire
Connector
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
Wall switches are not included. Select an acceptable general-use switch
in accordance with national and local electrical codes.
4-1. Make sure the power to the outlet box and associated wall switch
location is still OFF.
To connect the wires, hold the bare metal leads together and place
a wire connector over them, then twist clockwise until tight.
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
Connect the wires as follows:
• The bare or green ground wire (grounding) from the ceiling to
the green ground wire (grounding) from the ceiling plate and
the green ground wire (grounding) from the fan. If you chose
the low profile option, the green ground wire (grounding) can
be found on the low profile washer.
• The white wire (grounded) from the ceiling to the white wire
(grounded) from the fan
• The black wire (ungrounded) from the ceiling to the black
(ungrounded) and the black wire with a white stripe
(ungrounded) from the fan
4-2. Push all wires and wire connectors back through the ceiling plate
hole into the outlet box.
