8
42207-01 • 01/30/14 • Hunter Fan Company
WARNING: Fan may fall if not assembled as directed in these
installation instructions.

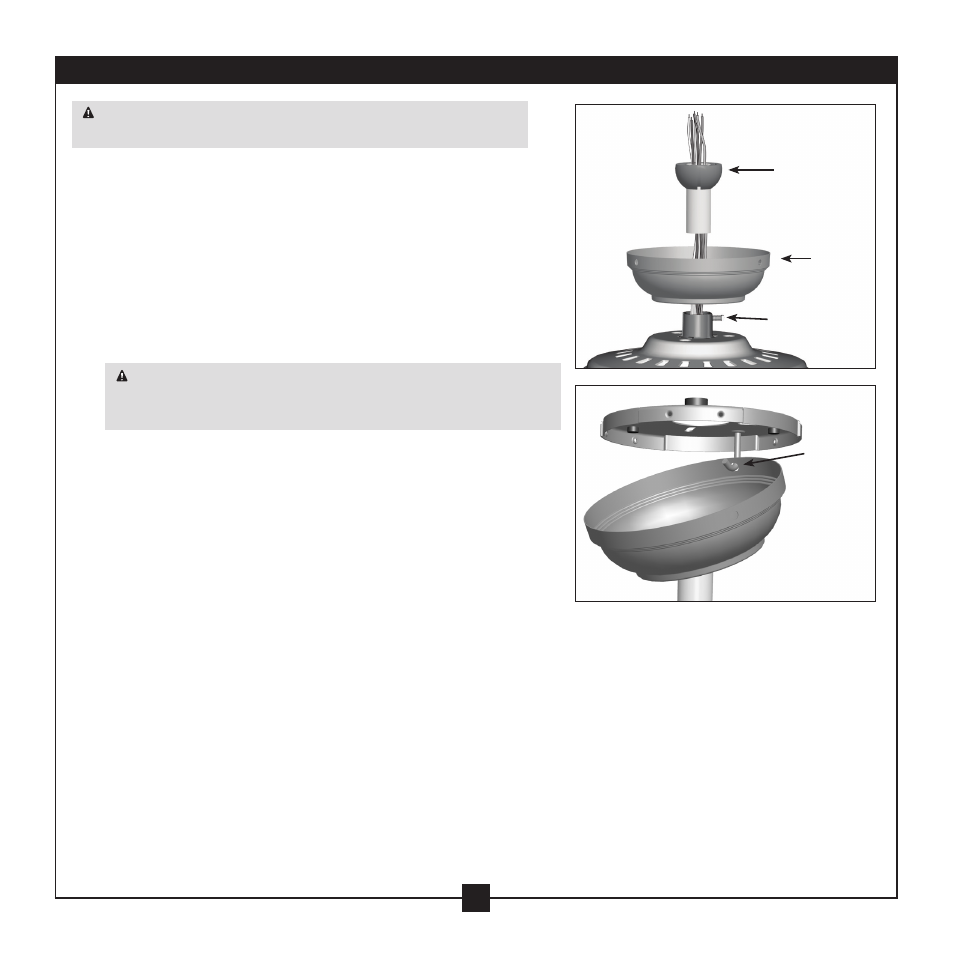

3-1. Unbundle the wires from the fan.
For Standard or Angled mounting:
3-2. To assemble fan to hang down from a flat or angled ceiling, insert
the downrod through the canopy. Feed the wires from the fan
through the downrod.
3-3. Loosen the square head setscrew on the adapter to install the
downrod. Note: When the downrod is fully installed, 2-3 threads
on the pipe will still be visible; this is normal. Securely retighten
the setscrew with a wrench or pliers.
CAUTION: The adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
3-4. Raise the fan and place the hook on the ceiling plate through the
round hole in the rim.
Step 3-4
Round
Hole
Steps 3-1 – 3-3
Downrod
Canopy
Setscrew
3 • Assembling and Hanging the Fan
