Your Hunter fan comes with an integrated light fixture assembly.
WARNING: Use only the light fixture supplied with this fan model.

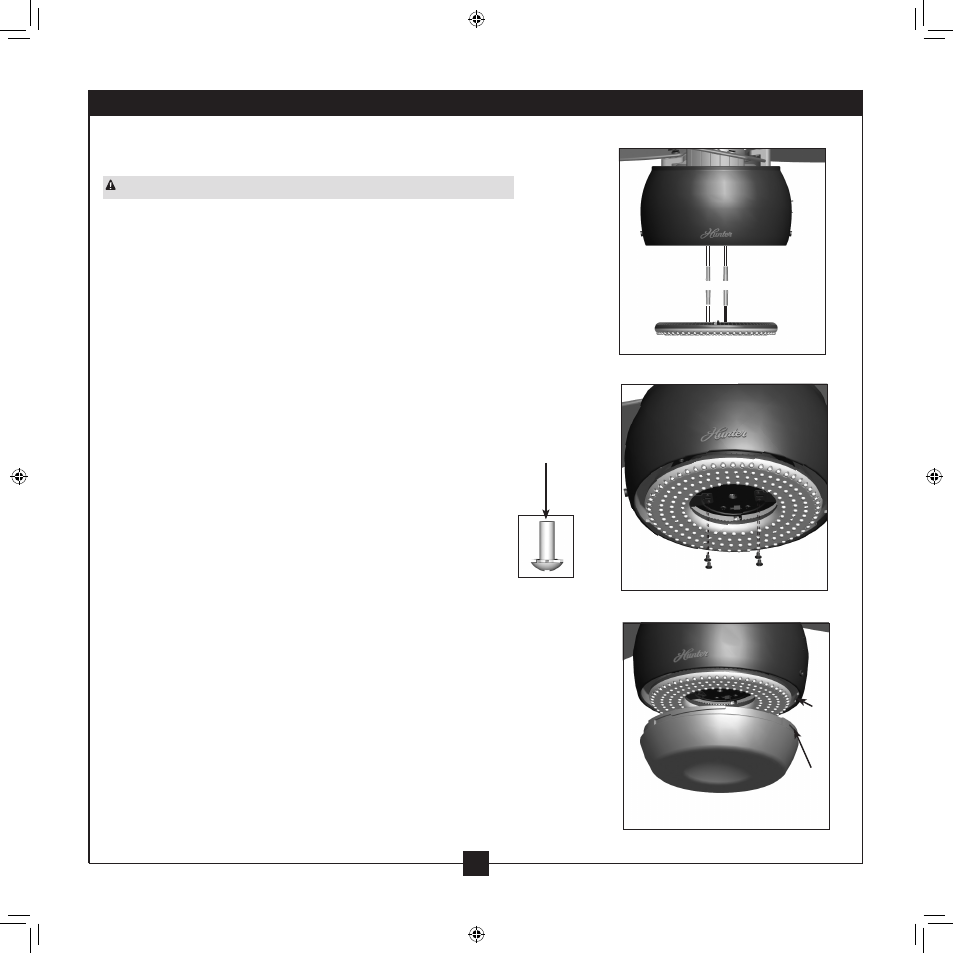

8-1. Connect the wires in the switch housing to the wires in the LED
light fixture by plugging the two single molex plug connectors
together.
8-2. Attach the LED light fixture to the bottom of the switch housing
with the four housing assembly screws.
8-3. Align the tabs in the glass bowl with the grooves on the bottom of
the fan. Turn the glass bowl clockwise until it locks into place.
Housing
Assembly
Screw
Step 8-3
Tab
Groove
Step 8-1
8 • Completing Your Installation With a Bowl Light Fixture
Step 8-2
