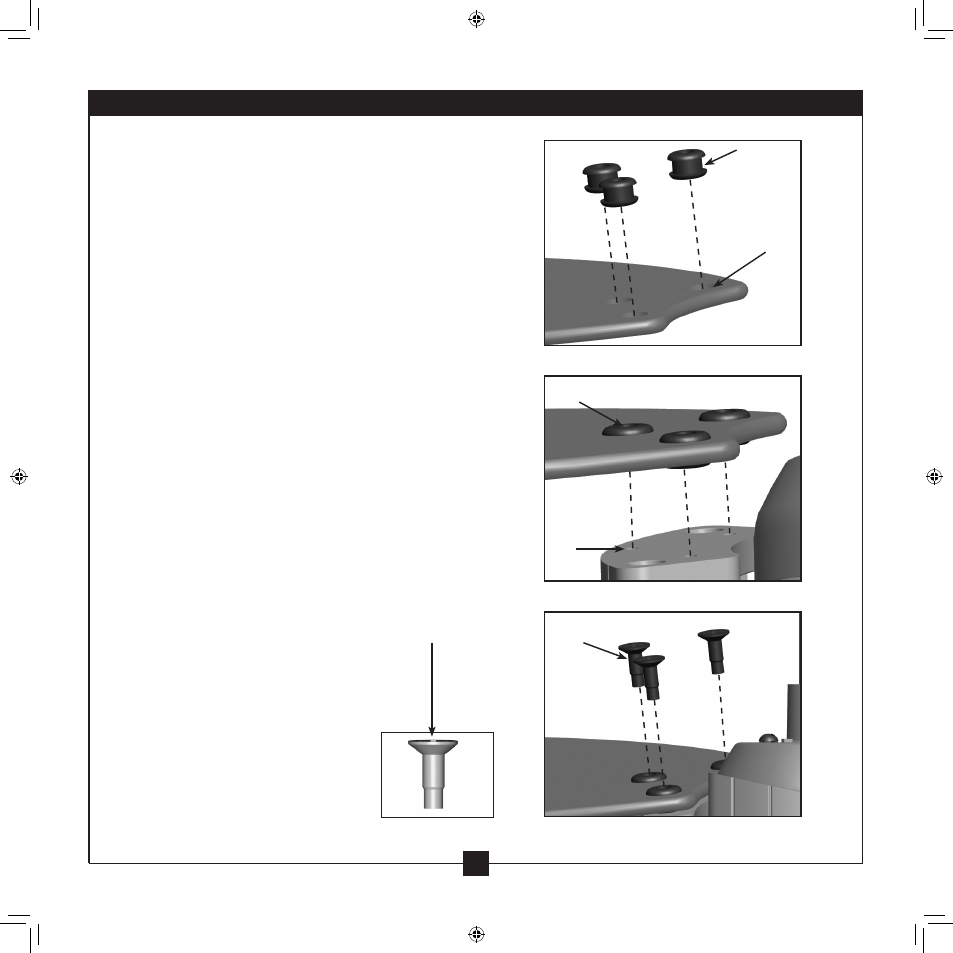

7-1. Install blade grommets into the holes in the blades.
7-2. Place one of the blades on top of one of the blade ramps,
aligning the holes in the blade with the threaded holes in the
blade ramp.
7-3. Attach the blade to the blade ramp using three blade assembly
screws.
7-4. Repeat steps 7-2 and 7-3 for the remaining two blades.
Grommet
Threaded
Hole
Hole in
Blade
Hole in
Blade
Blade Assembly
Screw
Blade Assembly
Screw
Note: The blades on this fan have been treated with
Hunter’s Dust Armor protection, making the blades less
likely to attract dust and dirt. Use a dry or slightly damp
lint free cloth to clean the blades. Do not use a furniture
polish or any other cleaners that leave any residue, as they
will damage the protective Dust Armor on the blades.
Step 7-1
Step 7-2
Step 7-3
7 • Assembling the Blades
