4 • setting the remote transmitter and receiver – Hunter 28713 52 Highbury User Manual
Page 9
9
42100-01 • 12/21/10 • Hunter Fan Company
4-1. IMPORTANT! Before you change the Jumper settings, make
sure the battery is not connected to the transmitter.
Change the position of the jumpers in the transmitter and the
DIP switches in the receiver. Be sure the position of the jumper
in the transmitter matches the position of the DIP switches
in the receiver. If they don’t match, the controller will not
function. For instructions on how to set the jumpers, read the
box below.
4-2. There is a toggle switch beside the jumpers on the transmitter.
Move the toggle switch toward the side that reads “CFL”.
4-3. Install the 12-volt battery into the transmitter.

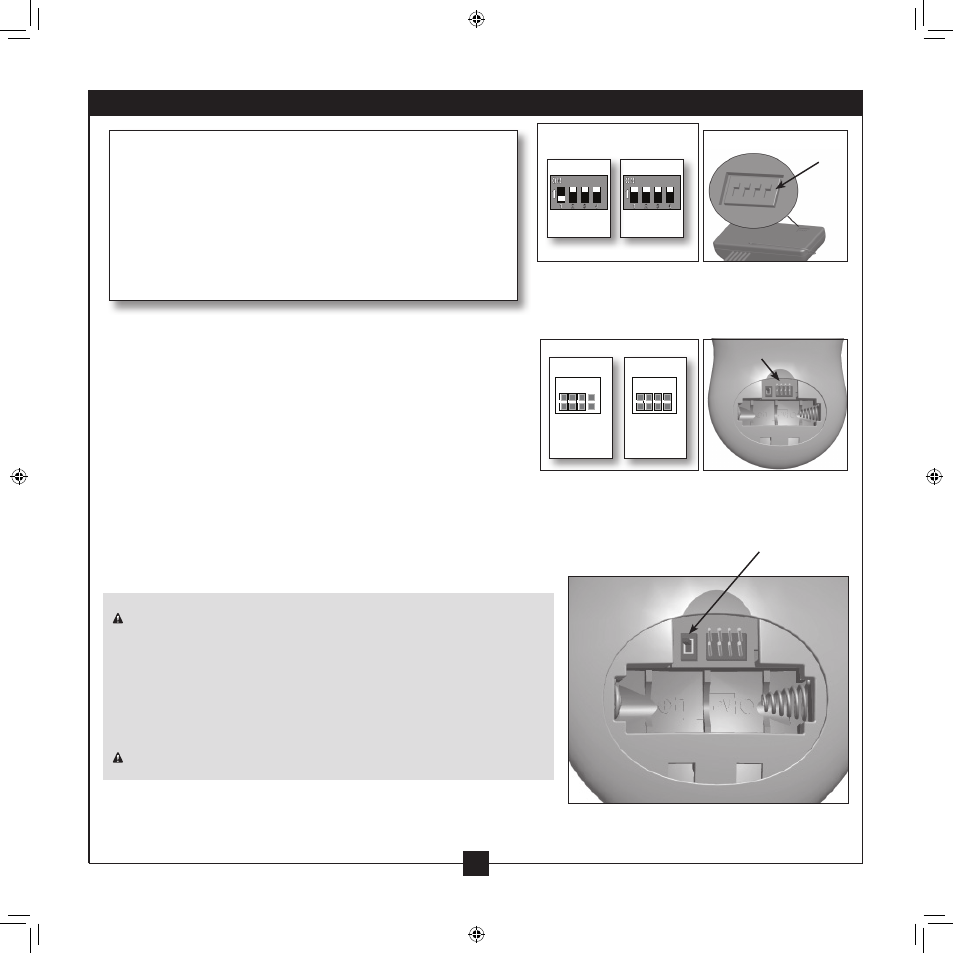

Setting DIP switches and Jumpers
When two or more fans are located near each other, you may desire
to have the receiver/transmitter for each fan set to a different code,
so that the operation of one fan does not affect the operation of
the other fans.
The DIP switches for the receiver are located on the flat surface
of the receiver. The Jumpers for the transmitter are in the battery
compartment.
Receiver DIP
switches
Transmitter
Jumpers
CFL Toggle Switch
CFL
Receiver 1
Receiver 2
Example DIP Switch Settings
DIP Switches
Set to 1111
DIP Switches
Set to 0111
4 3 2 1
4 3 2 1
4 = on (fermé)
3 = on (fermé)
2 = on (fermé)
1 = off (ouvert)
4 = on (fermé)
3 =
on (fermé)
2 =
on (fermé)
1 =
on (fermé)
Example Jumpers Settings
Transmitter 2
Transmitter 1
CAUTION: The remote control device complies with part 15 of the FCC rules.
Changes or modifications not expressly approved by Hunter Fan Company could void
your authority to operate this equipment.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
Note: Use with a fan that incorporates an air gap switch (normal on-off wall switch).
WARNING: Maximum fan load is 1 Amp; maximum lamp is 300 Watts.
4 • Setting the Remote Transmitter and Receiver
