13
42100-01 • 12/21/10 • Hunter Fan Company
Plug
Connector
Detail
WARNING: Use only the light fixture supplied with this fan model.

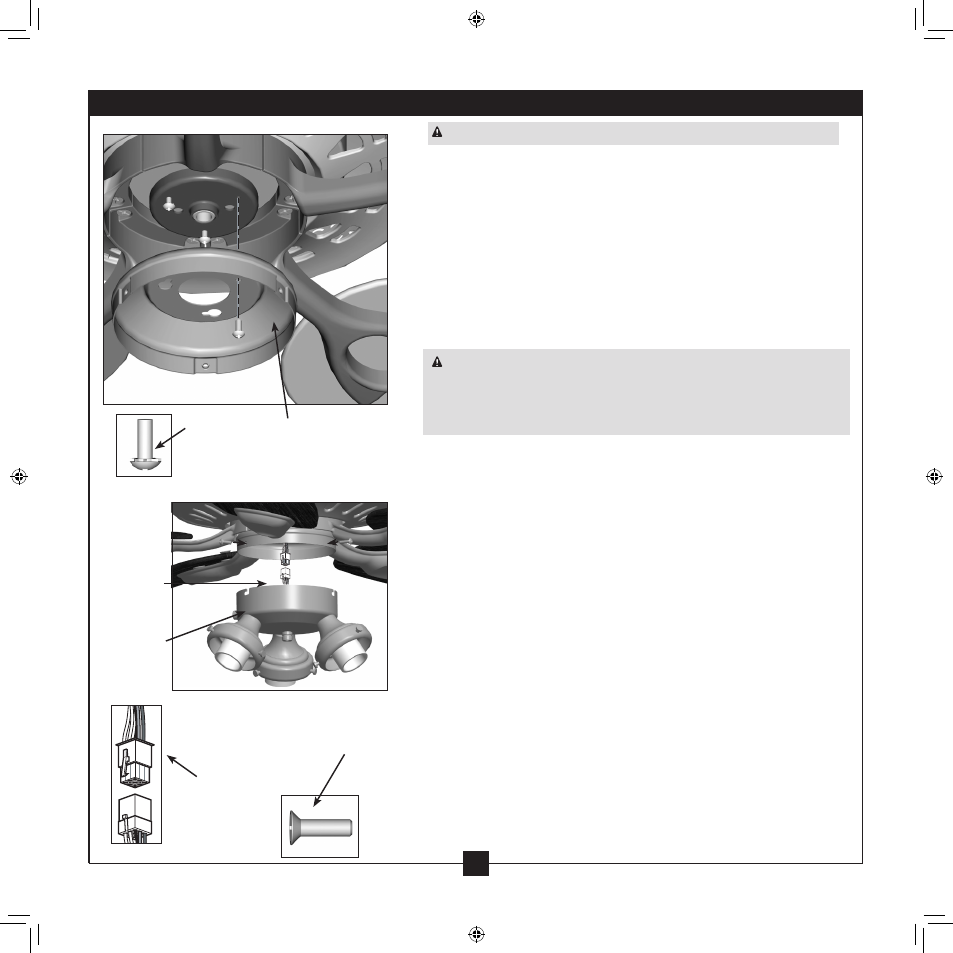

8-1. To attach the upper switch housing, partially install two #6-32 x
3/8” housing assembly screws into the switch housing mounting
plate.
8-2. Align the keyhole slots in the housing with the housing assembly
screws.
8-3. Turn the housing counterclockwise until the housing assembly
screws are firmly situated in the narrow end of the keyhole slots.
Install the remaining #6-32 x 3/8” screw into the housing. Tighten
all three screws firmly.
CAUTION: Make sure the upper switch housing is securely attached
to the switch housing mounting plate. Failure to properly attach and
tighten all three assembly screws could result in the switch housing
fixture falling.
8-4. To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only fit together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
8-5. Partially install two #6-32 x 3/8” housing assembly screws in the
upper switch housing.
8-6. Align the keyhole slots in the housing with the housing assembly
screws.
8-7. Turn the housing counterclockwise until the housing assembly
screws are firmly situated in the narrow end of the keyhole slots.
Install the remaining #6-32 x 3/8” screw into the housing. Tighten
all three screws firmly.
Steps 8-1 – 8-3
Housing
Assembly
Screw
Upper
Switch
Housing
Housing
Assembly Screw
Step 8-4
Lower
Switch
Housing
Plug
Connector
8 • Completing Your Installation With a Multi Staked Light Fixture
