PC 8120

12-inch Core 2 Duo touch panel PC

Installing the CPU and DRAM

The standard PC 8120 system is designed for Intel Core 2 Duo processors. The built-in CPU board provides two 240-

pin DDR2 DIMM sockets that support system memory up to 4GB.

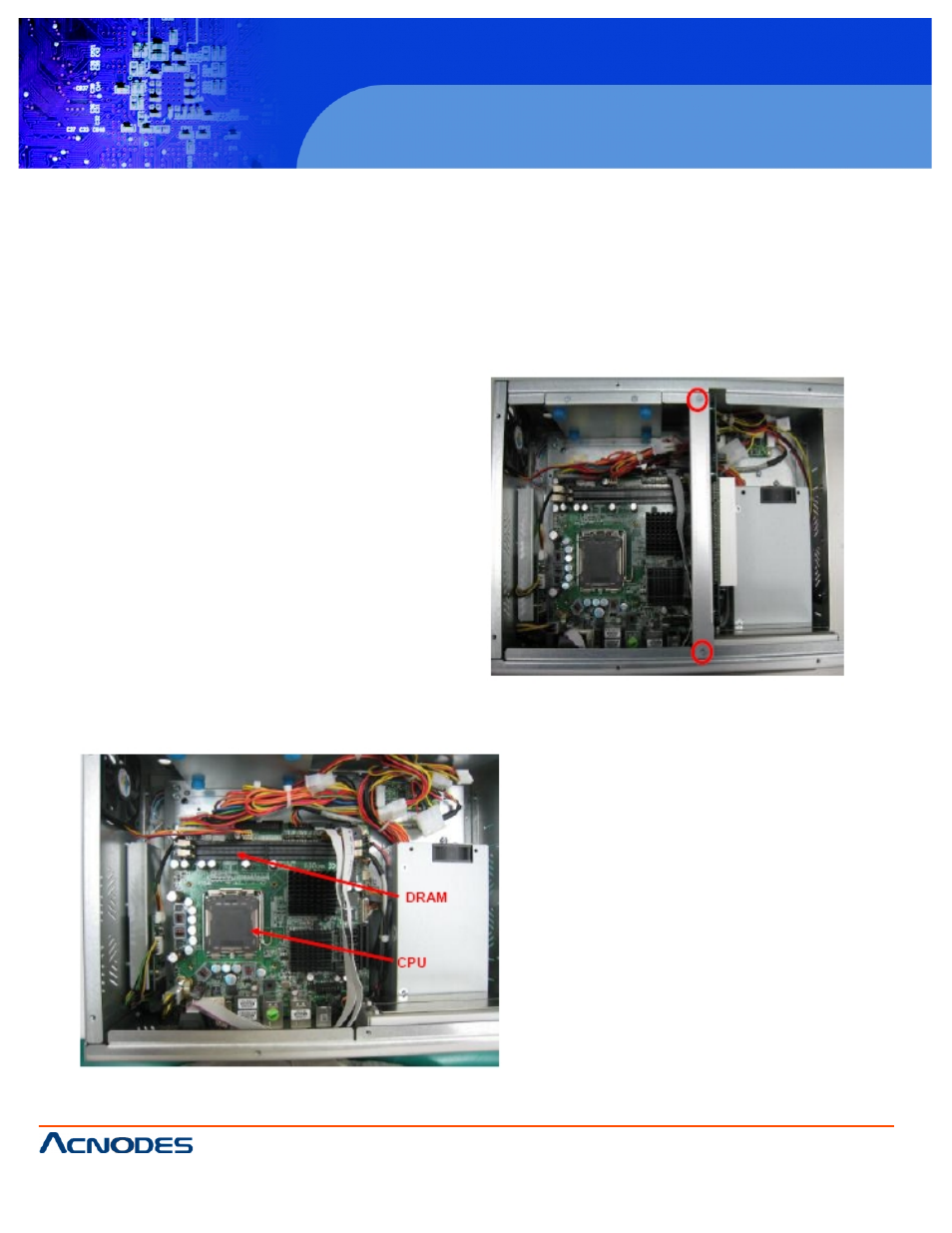

Please refer to the instructions below illustrated with concise images, to upgrade the CPU, DRAM, PCI step by step:

Step 1: Unscrew screws to remove the rear chassis.

Step 2: Remove the riser card fix kit.

Step 3: Install the CPU and DDR DRAM in the PC
8120.
