J&M 1075-18R User Manual
Page 17
17

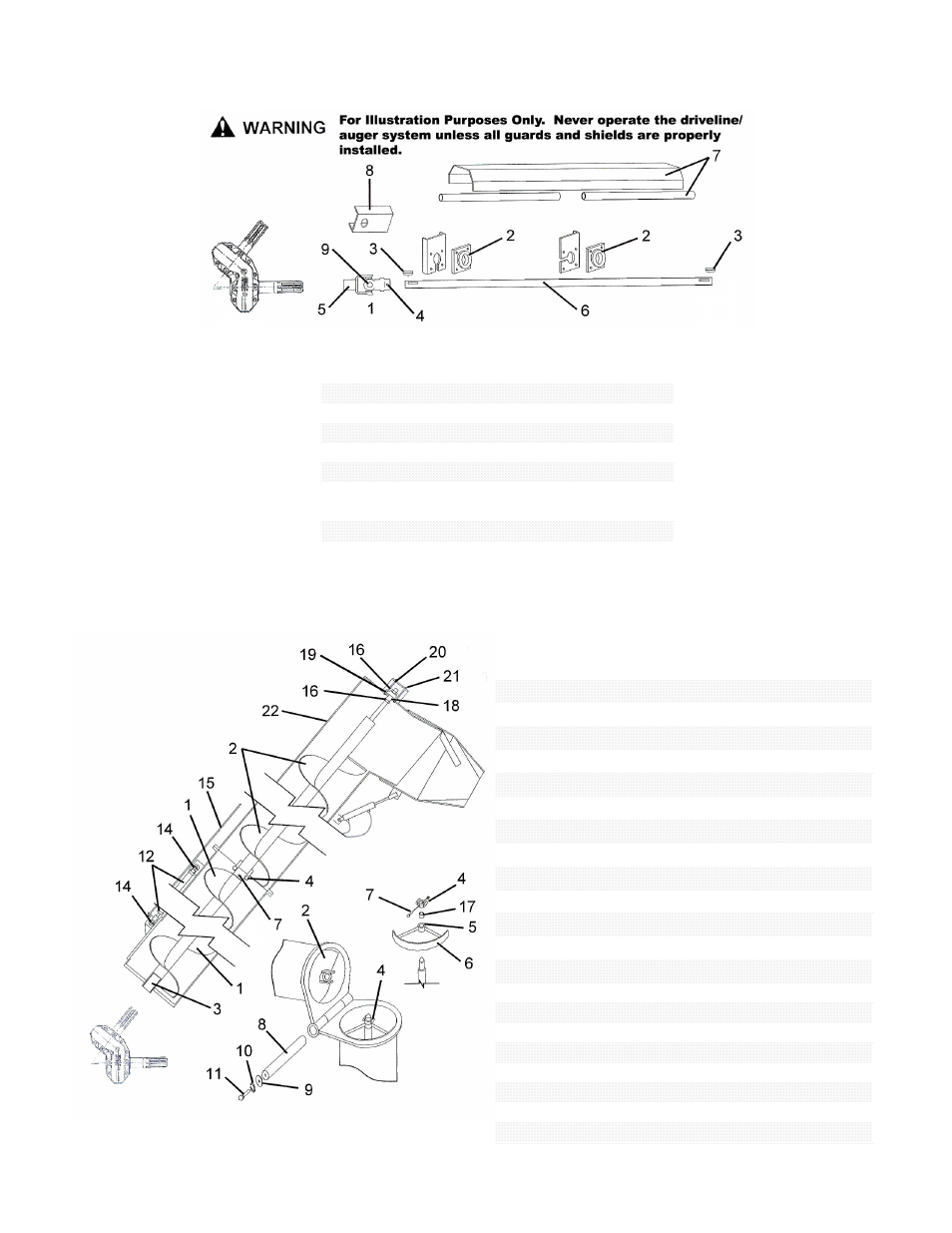

DRIVE LINE ASSEMBLY
UPPER AND LOWER AUGER ASSEMBLY
#
Part #
Description
1
LF-18
Lower Flighting
welded to 4 1/2" pipe
2
UF-18
Upper Flighting
welded to 4 1/2" pipe
3
SC-25X3
Spline Coupler 2 1/2"OD x 3"
4
DDW-21218 Drive Dog Weldment, 2 1/2"ID
5
1610BL
Grease Zerk
6
HBA-18
Hanger Bushing Assembly
7
16HBN
1" x 6" Bolt (G8) w/Lock Nut
8
134-P18
1 3/4" x 17 1/2" Pin
9
12-W
1/2" ID Large Washer
10 LW-12
1/2" Lock Washer
11 12114HB
1/2" x 1 1/4" Hex Bolt
12 JD236
2" x 36" Hydraulic Cylinder
13 JD472
Seal Kit for 2" x 36" Hyd. Cylinder
14 ICR4
1" x 4" Pin
15 GI-12-6
1/2" Gate Indicator Rod
16 HN-114
1 1/4" Hex Nut
17 BB-212
2 1/2" Bronze Bushing
18 112S
1 1/2" Long Spacer
19 GRAF-206
4 Hole Flange Bearing
20 CMSUAA-4
Compression Spring
21 MB-126
1/2" x 5 1/2" Hex Bolt w/Nut
22 UAH-18R
Upper Auger Tube Assembly
# Part #
Description
1 252288
U-Joint (drive shaft to gearbox)
2 UCF-20928
1 3/4" Flange Bearing, 4 hole
3 38112
3/8" x 1 1/2" Half Moon Key
4 SS-3812
3/8" x 1/2" Set Screw
5 SS-1212
1/2"-20 x 1/2" Set Screw
6 DS-93
Drive Shaft, 1 3/4" x 93"
7 GDS-13493
Guard for Drive Shaft (incl.
plastic shield)
8 3S-DUJ
Shield over U-joint
9 CK-44R
Cross Kit (U-joint) 44R
