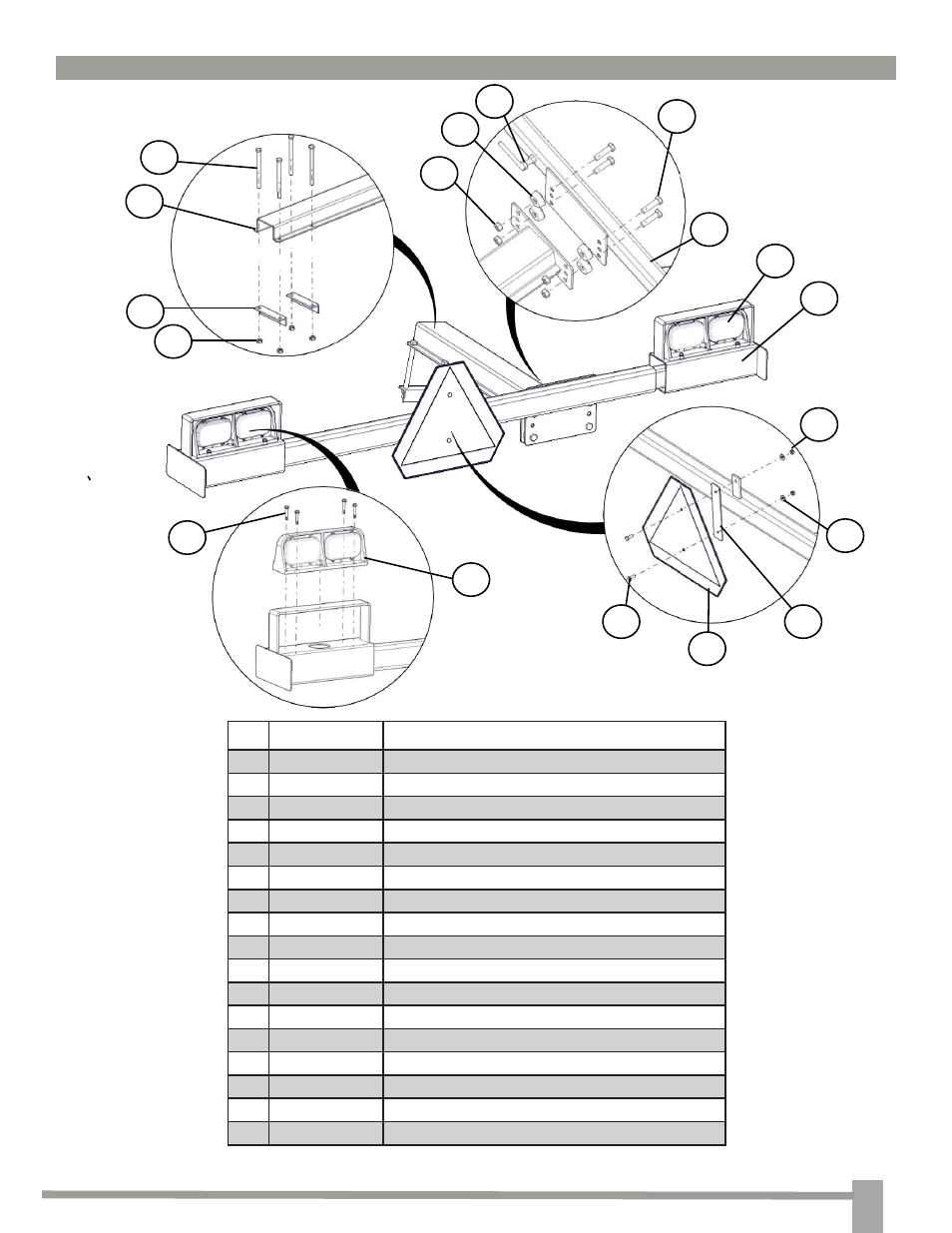

J&M 4WS17 - Manual (Page 12)

11
l
IGht
k
It
a
SSembly
15
1
14
3
11
4
13
2
7
5
6
4
12 17
16
10
9
8
# Part. No. Description
1 JM0001595 1/2”-13 x 7” Grade 8 Hex Bolt
2 JM0001393 Extension Bracket
3 JM0001440 Angle Iron Support
4 JM0002124 1/2”-13 Grade 5 Center Lock Hex Nut
5 JM0001869 Damper
6 JM0001376 1/2” Adjustment Handle
7 JM0001593 1/2”-13 x 2” Grade 8 Hex Bolt
8 JM0001374 Light Mounting Bracket
9 JM0001682 Light Assembly (R/H)
10 JM0001375 Telescoping Arm
11 JM0002122 1/4”-20 Grade 5 Center lock Hex Nut
12 JM0003090 1/4” Flat Washer
13 JM0001645 SMV Bracket
14 JM0001616 SMV Sign
15 JM0001507 1/4”-20 x 3/4” Grade 5 Bolt
16 JM0001680 Light Assembly (L/H)
17 JM0001571 1/4” x 1 1/2” Self Tapping Screws
