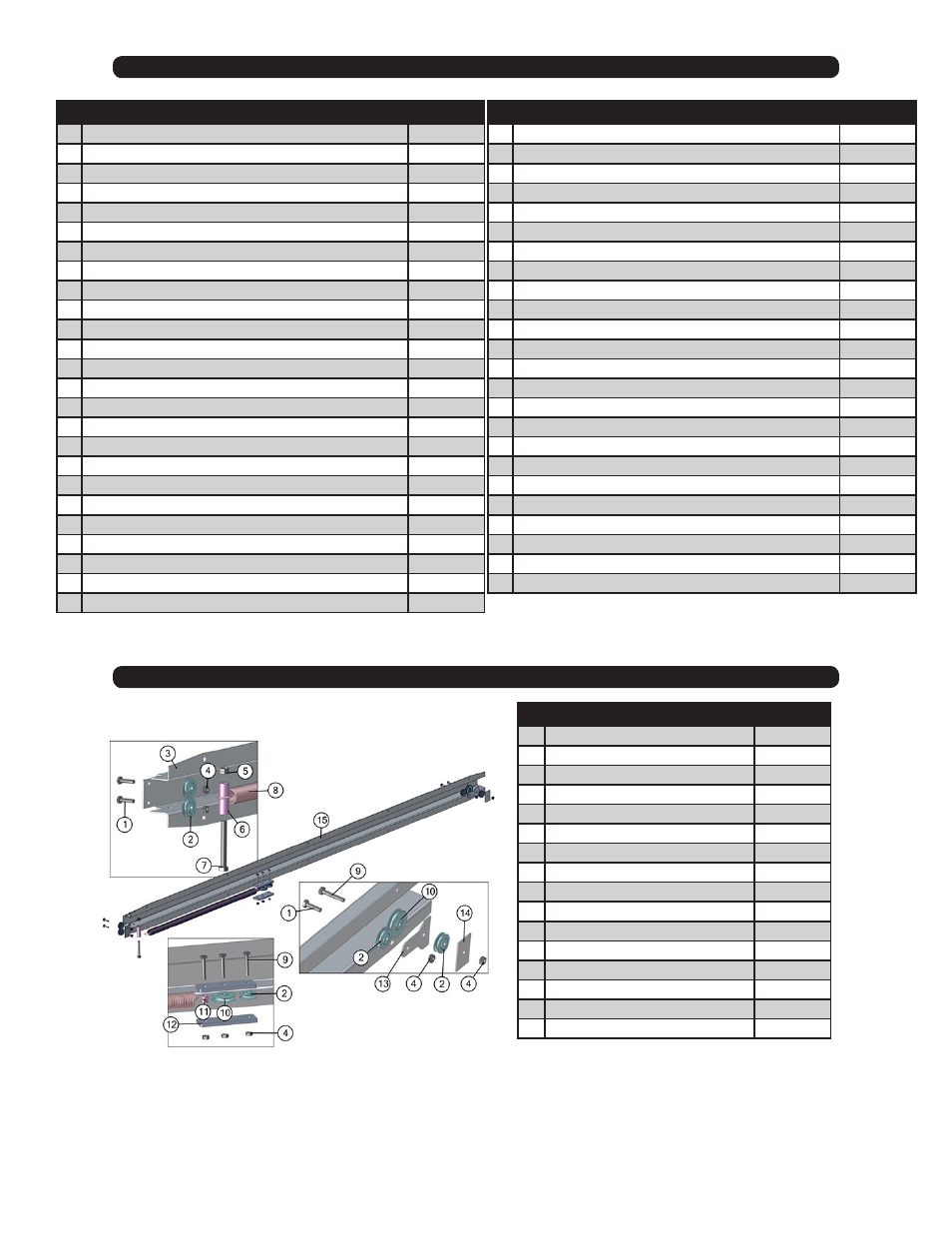

Roll Tarp Assembly
# Description Part. No.
1 1/4”-20 x 1.0” Gr5 Z Hex Bolt JM0002095
2 Roller Small JM0002439
3 Grain Cart Spring Return Housing JM0012974
4 1/4”-20 Gr5 Z Centerlock Hex Nut JM0001505
5 3/8”-16 Gr5 Z Centerlock Hex Nut JM0001512
6 Tall Plastic Spacer JM0002444
7 3/8”-16 x 3.0” Gr5 Z Hex Bolt JM0001666
8 Spring Return Spring JM0000207
9 1/4”-20 x 1-1/2” Gr5 Z Hex Bolt JM0002447
10 Roller Large JM0012970
11 Short Plastic Spacer JM0002442
12 Rectangular Spacer Tab JM0012973
13 Aluminum Spacer Tab JM0018897
14 Aluminum Spacer Square JM0002445
15 Spring Return Assembly JM0012965
16 Spring Return Cable JM0012981
Spring Return Assembly
# Description Part. No.
1 1” Square Tie-Down Tube (1130, 1250) JM0021331
1 1” Square Tie-Down Tube (1500) JM0018962
2 Tarp with Rivets (1130,1250) JM0021378
2 Tarp with Rivets (1500) JM0021379
3 Tarp Stop Bracket JM0000187
4 3/8”-16 x 2” Gr5 Z Hex Bolt JM0001510
5 3/8”-16 Gr5 Z SF Hex Nut JM0002152
6 Arched Tarp Bows (1130,1250,1500) JM0021405
7 1/4”-20 Gr5 Z SF Hex Nut JM0001630
8 1/4”-20 X 3/4” Gr5 Z Hex Bolt JM0001507
9 Tightening Lip (1500) Front JM0017842
9 Tightening Lip (1500) Rear JM0017843
9 Tightening Lip (1130,1250) Front JM0021397
9 Tightening Lip (1130,1250) Rear JM0021396
10 3/16” Cable (1130,1250) JM0021408
10 3/16” Cable (1500) JM0015701
11 Rear Long Arched End Cap (1130, 1250, 1500) JM0007257
11 Rear Short Arched End Cap (1130, 1250, 1500) JM0007255
12 Rear Long End Cap Plate (1130, 1250, 1500) JM0007262
12 Rear Short End Cap Plate (1130, 1250, 1500) JM0007260
13 Crank with Splined U-Joint (1130, 1250, 1500) JM0019888
14 Yellow Cap JM0018963
15 Tarp Standoff JM0001889
16 1/4” x 1-1/2” Self Tapping Screw JM0001571
17 1/4”-20 x 1-1/4” Gr5 Z Hex Bolt JM0016673
# Description Part. No.
18 Tarp Nylon Riser JM0000196
19 Front Long Arched End Cap (1130, 1250, 1500) JM0007259
19 Front Short Arched End Cap (1130, 1250, 1500) JM0007256
20 1/4”-20 x 1/2” Gr5 Z Hex Bolt JM0001481
21 1/4”-20 x 5/8” Gr5 Z Hex Bolt JM0001479
22 Front Long End Cap Plate (1130, 1250, 1500) JM0007263
22 Front Short End Cap Plate (1130, 1250, 1500) JM0007261
23 1/4”-20 x 2-1/2” Gr5 Z Hex Bolt JM0001506
24 3/8”-16 x 1-1/2” Gr5 Z Hex Bolt JM0001659
25 1 1/4” Square Roll Tube (1130,1250) JM0021334
25 1 1/4” Square Roll Tube (1500) JM0018968
26 1/4”-20 Gr5 Z Centerlock Hex Nut JM0001505
27 3/8”-16 Gr5 Z Centerlock Hex Nut JM0001512
28 3/8”-16 x 1” Gr5 Z SF Hex Bolt JM0002092
29 Crank Holder JM0000164
30 1/2”-13 Gr5 Z Centerlock Hex Nut JM0001511
31 Roll Tarp - Handle Hanger PP JM0002967
32 Roll Tarp - Handle Hanger Rubber Flap JM0002551
33 1/2” USS Flat Washer JM0003082
34 1/2”-13 x 1-1/4” Gr5 Z Hex Bolt JM0001513
35 Upper Adjustable Bow Support 13” JM0021404
36 Lower Adjustable Bow Support 27” (1130, 1250, 1500) JM0021403
37 3/8”-16 Gr5 Z J-Bolt JM0001519
38 Cable Clamp-Small JM0001514
