3
TO THE OWNER:
The purpose of this manual is to assist you in operating and maintaining your grain cart in a safe manner. Read it carefully.
It furnishes information and instructions that will help you achieve years of dependable performance and help maintain safe
operating conditions. If this machine is used by an employee or is loaned or rented, make certain that the operator(s), prior
to operating:
1. Is instructed in safe and proper use.
2. Reviews and understands the manual(s) pertaining to this machine.
Throughout this manual, the term IMPORTANT is used to indicate that failure to observe can cause damage to equipment.
The terms CAUTION, WARNING and DANGER are used in conjunction with the Safety-Alert Symbol (a triangle with an
exclamation mark) to indicate the degree of hazard for items of personal safety. When you see this symbol, carefully read
the message that follows and be alert to the possibility of personal injury or death.
This Safety-Alert symbol indicates a hazard and means
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Indicates an imminently hazardous situation that, if not avoided, will
result in death or serious injury.
Indicates a potentially hazardous situation that, if not avoided,
will result in death or serious injury, and includes hazards that are
exposed when guards are removed.
Indicates a potentially hazardous situation that, if not avoided, may
result in minor or moderate injury.
Indicates that failure to observe can cause damage to equipment.
Indicates helpful information.
DANGER
WARNING
CAUTION
IMPORTANT
NOTE
General Information
Specifications
G
L
J
K
M
A
F
C D
B
H
E
I

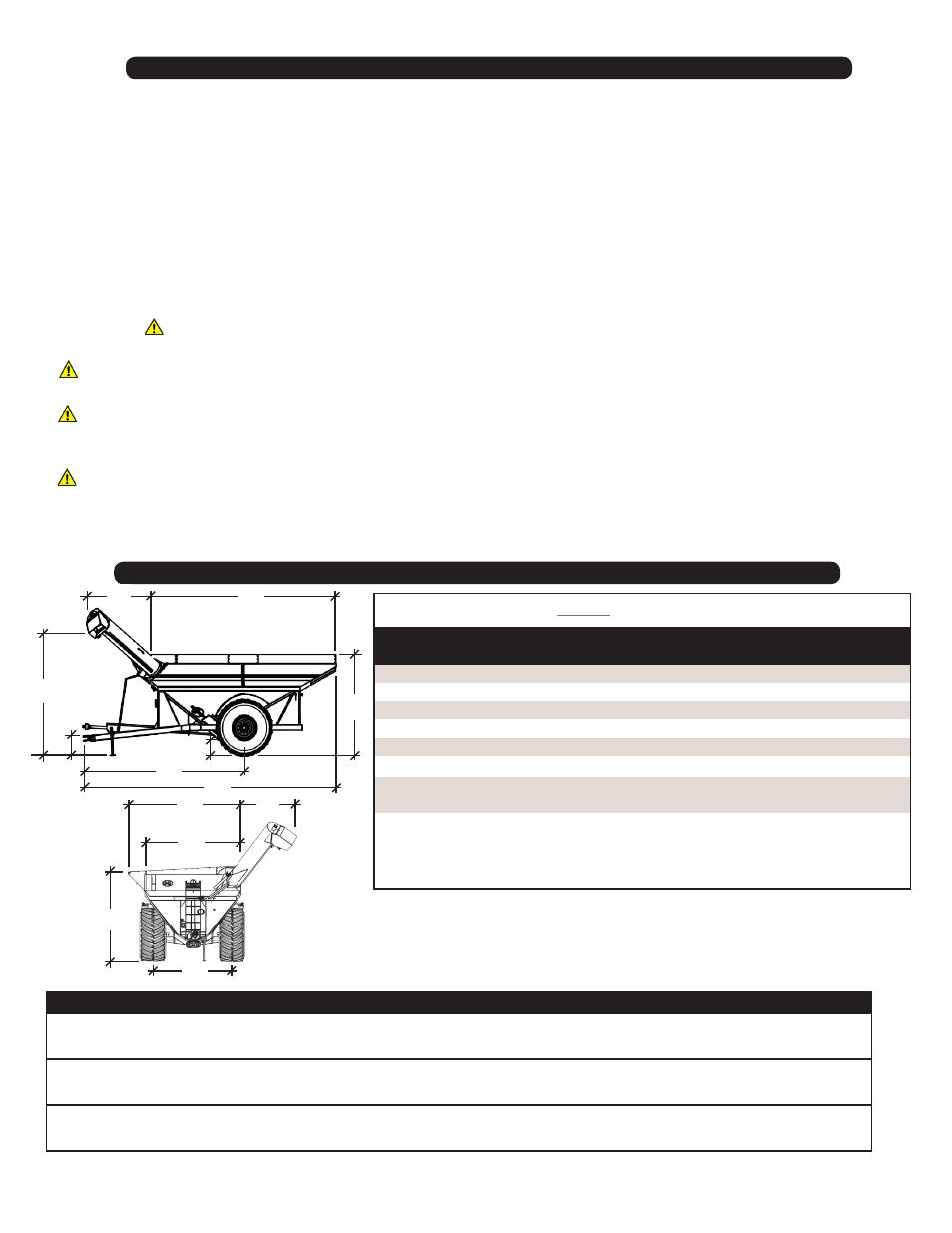

DIMENSIONS
Model A B C D E F G H I J K L M
1130 1’-6” 18’-10” 8’-6” 22’-0” 29’-7” 13’-9” 7’-3” 12’-0” 1’-5” 9’-6” 11’-9” 10’-11” 13’-9”
1131 10’-0”
1250 1’-6” 18’-10” 8’-6” 22’-0” 29’-7” 13’-9” 7’-3” 12’-2” 1’-5” 9’-6” 11’-9” 11’-7” 13’-9”
1251 10’-0”
1500 1’-6” 18’-10” 8’-6” 22’-0” 29’-7” 13’-9” 7’-3” 12’-2” 1’-5” 9’-6” 11’-9” 11’-7” 13’-9”
1501 10’-0”
SPECIFICATIONS
1130 (20” Auger) 1250 (20” Auger) 1500 (20” Auger)
1131 (22” Auger) 1251 (22” Auger) 1501 (20” Auger)
Capacity 1,130 Bushels 1,250 Bushels 1,500 Bushels
Auger, One Vertical 20” or 22” Diameter 20” or 22” Diameter 20” or 22” Diameter
Unload Time 2.2 or 1.9 minutes 2.5 or 2.1 minutes 3.0 or 2.5 minutes
Wheels 27x32HD or 44x32 44x32 44x32
Hubs 10 Bolt or 20 Bolt 10 Bolt or 20 Bolt 10 Bolt or 20 Bolt
Spindles 6” Diameter 6” Diameter 6” Diameter
Tires 900/60R32 (LI185), 76x50.00 or 1250/50R32 1250/50R32
76x50.00 or 1250/50R32
Tongue Weight
Empty 2,900 lbs. 2,900 lbs. 2,900 lbs.
Loaded 4,200 lbs. 4,200 lbs. 4,200 lbs.
Total Weight (approx.) 14,600 lbs. 14,800 lbs. 15,900 lbs.
SINGLE WHEEL FLOTATION TIRES
