Low-Voltage Connections
The low-voltage area in the AMX Lighting controllers contain connections and DIP
switches for AXLink and dry closures. On the controller cards, low-voltage power for
the board is supplied either by line power, optional auxiliary power supply (RDA-
PSM), or the +12 VDC pin on the AXLink connector.
WARNING: Disconnect the main power to the AMX Lighting controller at the
breaker box before rewiring the low voltage connections.
Setting AXlink Address Numbers
Set the AXLink address number (1-255) for the RE-DM6. This number must match
the number in your Axcess program.
Note: By turning all switches off, all circuits will go to 100 percent so that the installer
can test the high-voltage connections without having connections to a control
system.
Connecting AXlink
Connect the 4-pin captive-wire AXlink connector from the RE-DM6 to the Central
Controller for AXlink control of the dimming system (FIG. 5).
Dry Closure Connections
Dry contact closures from other equipment can be connected to the Radia Eclipse
dimmer module to provide direct manual control of lighting loads (FIG. 6).
Each dry contact closure has two pins: ground and contact. To activate each dry
closure, connect the ground and contact.

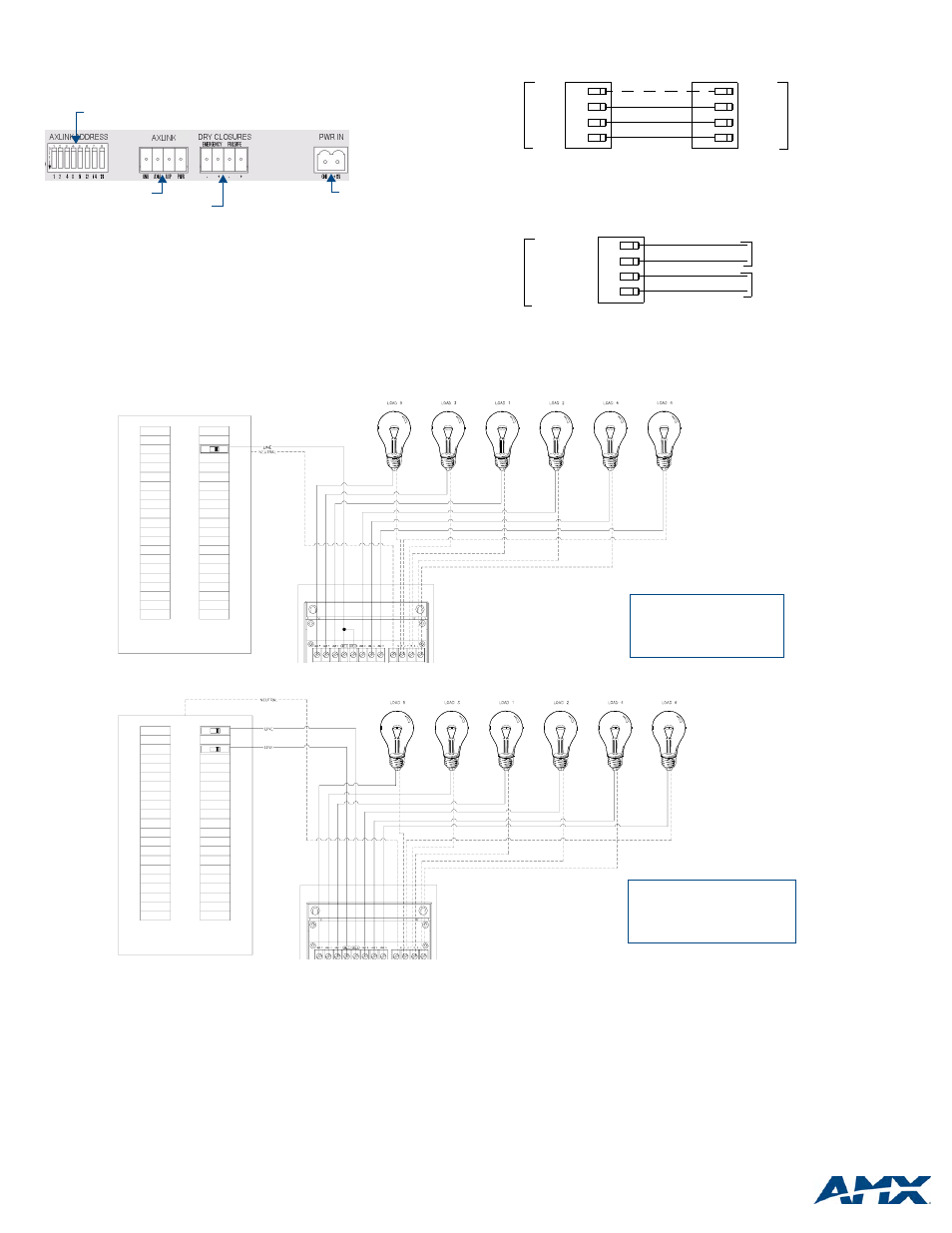

Lighting Application Drawings
FIG. 4 Low-voltage connections and DIP switches
AXLink address DIP switch
Dry contact closures
Auxiliary power IN
AXlink connector
FIG. 5 Connecting AXlink
FIG. 6 Dry Closure Connections
Central
RE-DM6
Controller
PWR
AXP
AXM
GND
PWR
AXP
AXM
GND
RE-DM6
FAILSAFE
GND
EMERGENCY
GND
Failsafe switch
Alarm system
FIG. 7 Example A
FIG. 8 Example B
Example A
Single Input
Single-phase, six load
120 or 240 VAC 1Ø
Example B
Dual Input
Single-phase, six load
120, 120/240, 240 VAC 1Ш
