Thermocouples & RTD - Tube and Wire
L4
A
Lead Length
D
D
D
B
A
Lead Length B
A
Lead Length
1) Series 150 151 152
2) Diameter (D) B = 1 /
8
” , C = 3 /
16
” , D = 1 /
4
” ,
3) Calibration J, K, T, E, D = RTD 2 wire
F = RTD 3 wire
4) Junction G = Grounded, U = Ungrounded
5) A Dimension A= 1 /
2,
B=1
,
C=1 1 /
2,
D=2
,
E=2 1 /
2,
F=3
G=3 1 /
2,
H=4
,
I=4 1 /
2,
J=5
,
K=5 1 /
2,
L=6
,
M=6 1 /
2,
N=7
,
O=7 1 /
2,
P=8
,
Q=8 1 /
2,
R=9
S=9 1 /
2,
T=10
,
U=12
,
V=18
,
W=24
,
Y=36
Z=48
,
X=Special length
6) B Dimension A= 1 /
2,
B=1
,
C=1 1 /
2,
D=2
,
E=2 1 /
2,
F=3
G=3 1 /
2,
H=4
,
I=4 1 /
2,
J=5
,
K=5 1 /
2,
L=6
,
M=6 1 /
2,
N=7
,
O=7 1 /
2,
P=8
,
Q=8 1 /
2,
R=9
S=9 1 /
2,
T=10
,
U=12
,
V=18
,
W=24
,
Y=36
Z=48
,
X=Special length
(Enter 0 for series 150)
7) Leads G = Fiberglass 24 ga
T = Fiberglass 24 ga stainless braid
F = Fiberglass 20 ga
S = Fiberglass 20 ga stainless braid
I = Fiberglass 24 ga stainless hose
H = Fiberglass 20 ga stainless hose
A = Teflon 24 ga
B = Teflon 20 ga
C = PVC 24 ga
D = PVC 20 ga
8) Lead length In whole inches 006-999
9) Termination Choose a terminal design from pg L8
10) Special options Fittings, flanges etc. Specify at time
of order. Enter 0 if none
Ordering Code
1 6 5 4 3 2 7 8 9 10

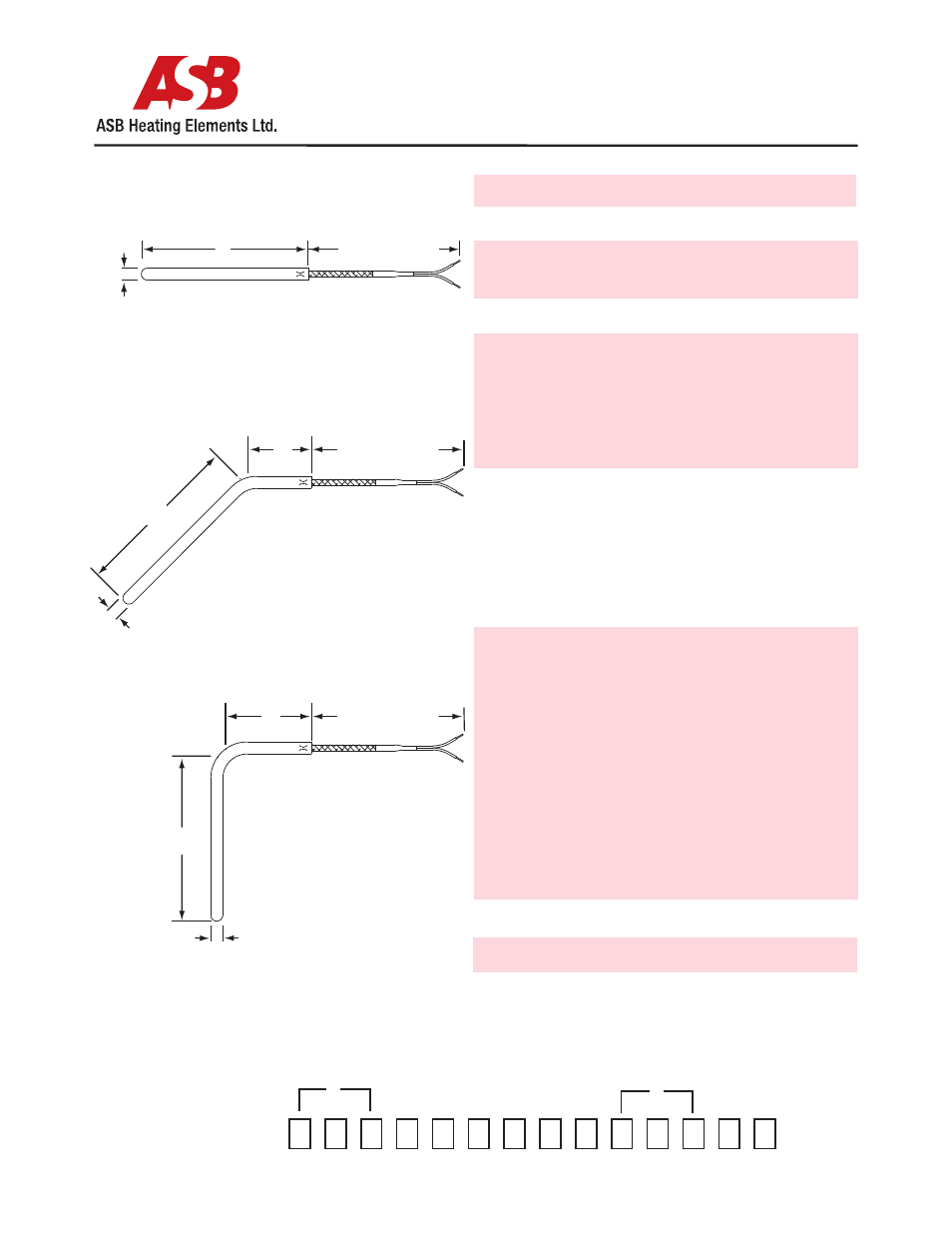

Figure 358
Figure 357
Series 150
Series 151
Series 152
Figure 359
