Welcome!
Step
2
Plug one end of the power cord into the Receiver, and
the other end into a power outlet.
Step
3
Plug one end of the supplied HDMI cable into the HDMI
port on the Receiver, and the other end into an available HDMI
port on the HDTV.
NEXT Flip this Guide over to continue
A
Install the Receiver
Congratulations on your purchase of a ScreenBeam Pro Wireless
Display Receiver. The Wireless Display Receiver connects to your
compatible Intel WiDi or Miracast wireless display-capable de-
vice, and displays the device’s screen on your HDTV.
B
1 Connect Using Intel WiDi App
Step
2
The device scans for
available receivers. Select the same
receiver name as seen on the HDTV
and click Connect. (The Connect
Automatically checkbox is optional.)
Step
3
Wait until the Receiver
displays a PIN on the HDTV, and a
PIN entry box on the screen of the
WiDi device. Enter the PIN in the
PIN entry box on the WiDi device,
then click Continue.
Step
1
Get the ScreenBeam Pro Wireless Display Receiver,
power cord, and HDMI cable from the ScreenBeam Pro box.
Step
1
Find the Intel Wireless Display application on the device
and launch it. To find the application, go to Windows Search on
your device and search for “Intel WiDi” in your apps.
Note: Make sure the device supports Intel Wireless Display (WiDi)
software version 3.5 or higher. To find out what version of Intel
WiDi your device has, enter the Intel WiDi application and click
Help, then navigate to the “About WiDi” section. To obtain the
latest Intel WiDi software and drivers, go to:
http://www.intel.com/go/wirelessdisplayupdate
Step
4
The HDTV displays
messages to show the status of the
connection process.
Step
4
Make sure the HDTV is turned on and set to display the
input from the correct HDMI port (the one you plugged into
during Step 3).
Display Tip: If the edges of the device screen cannot be seen on
the HDTV, adjust cropping. To do this, enter the WiDi application
and click Settings. Navigate to the “Picture and Sound” section,
click Adjust cropping…, and adjust the HDTV picture by clicking
plus (+) or minus (-).
Step
5
Verify that the Ready to
Connect screen appears on
the HDTV.
Step
5
A Connection Successful
screen appears on your device’s
screen, as well as on the HDTV.

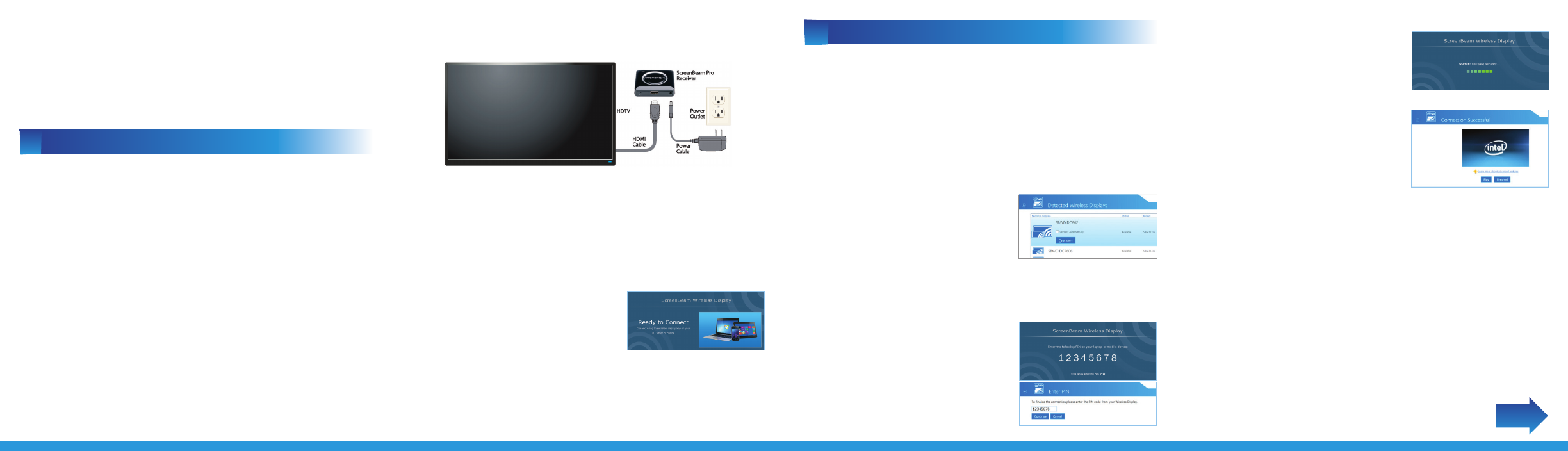

When Steps 1, 2, and 3 are complete, the hardware should be
connected as shown in the figure, below.
Note: The power outlet and cable may appear different than
those shown in the figure.
Note: If your device’s OS is Windows 8.1 or higher, proceed to
section B 2 (“Connect Using Windows 8.1 or Higher”) for
connection instructions.
The ScreenBeam Pro Receiver is now connected to your HDTV.
Proceed to one of the next three sections of this Guide
(depending on the device you are using to connect to
ScreenBeam Pro) to finish the connection procedure.
