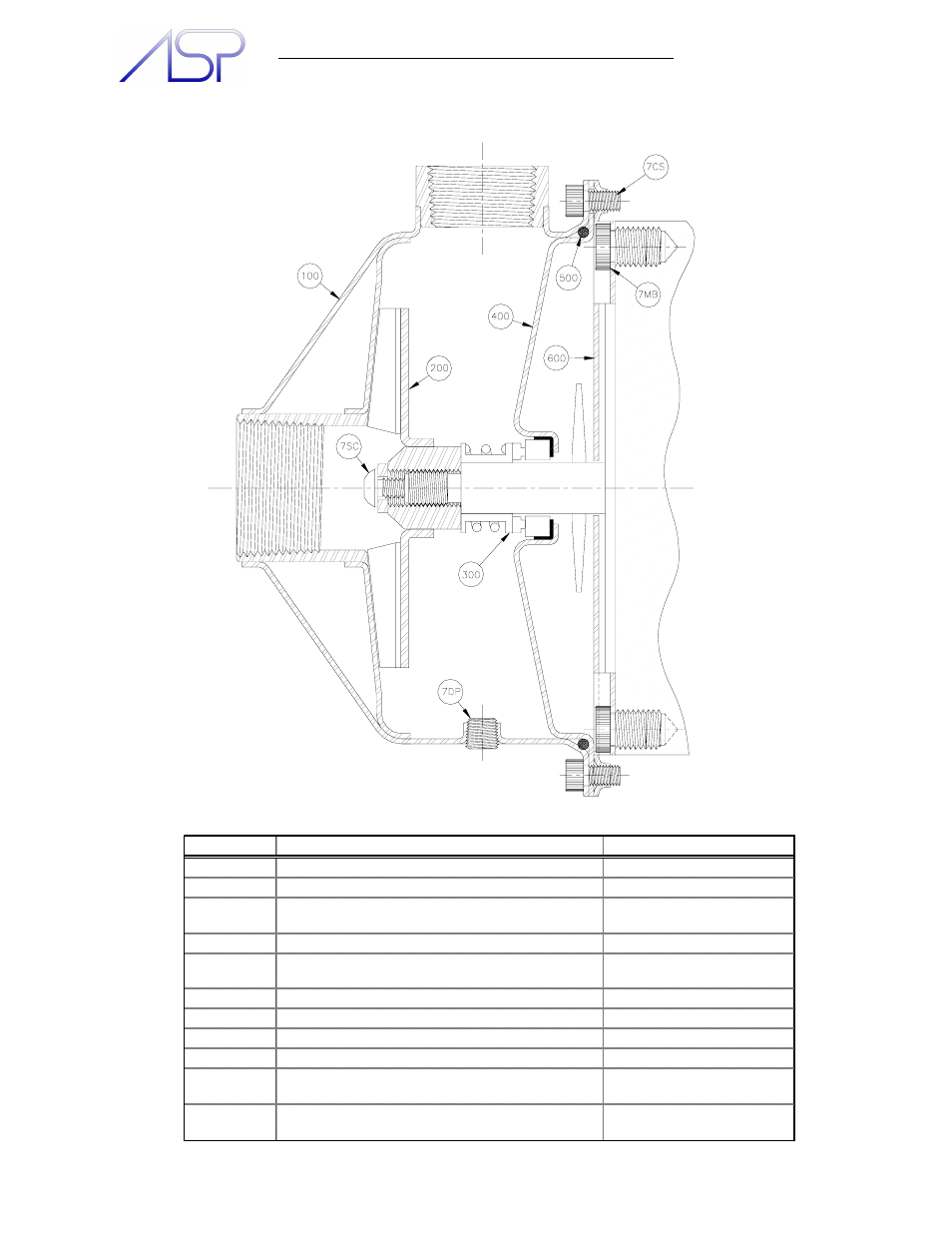

SSP (Open Impeller) Cross Sectional Drawing
Item No. Part Description Standard Materials
100 Casing 304 SS
200 Impeller (Open) 304 SS
Mechanical Seal - Type 6 (std.) Car/Cer/Buna N/316 SS
(Other seal types available) (Other materials available)
400 Seal Plate 304 SS
Buna N
(Other materials available)
600 Motor Adapter Plate 304 SS
7CS Casing Screw - 1/4-20 (3/16 Allen) Nickle Plated Steel
7DP Drain Plug - 1/8" NPT 304 SS
7MB Motor Bolt - 3/8-16 (7/32 Allen) 304 SS
Impeller Screw - 10-32LH (1/8 Allen)
(Standard on 3-Ph motors 1-hp or larger)
800
(not show n)
300
Pump Base (not supplied w ith footed motors) 304 SS
304 SS
Casing O-Ring 500
7SC
