Page 12
12
SK51101 ver. A0
User’s Manual
www
.chenbr
o.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]

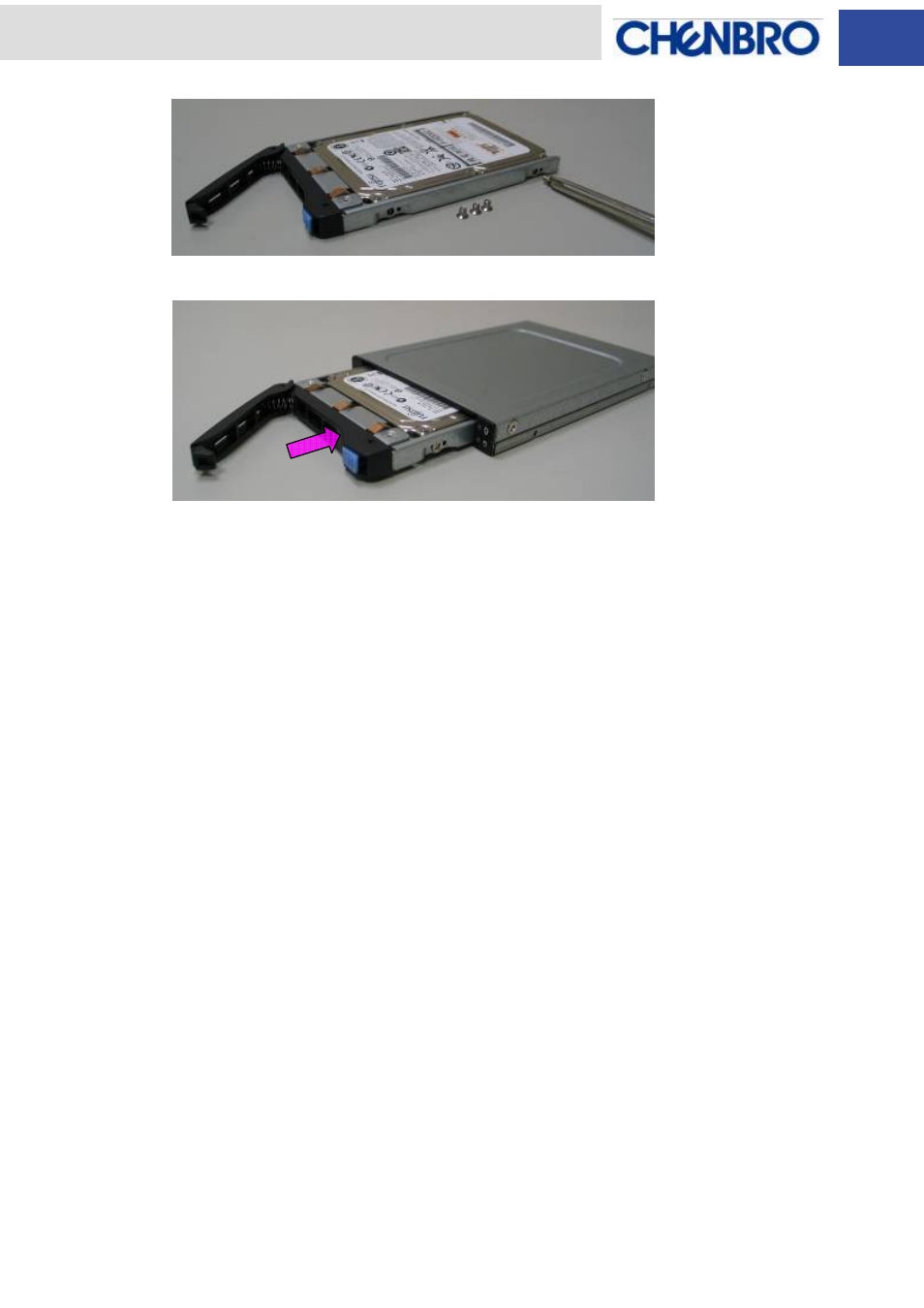

d. Attach HDD with four screws per tray
e. Insert HDD tray to the cage
