1-Port 6Gb/s SAS Backplane 80H10531102A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 e-mail: [email protected]
7
www
.
c
he
nbro.com

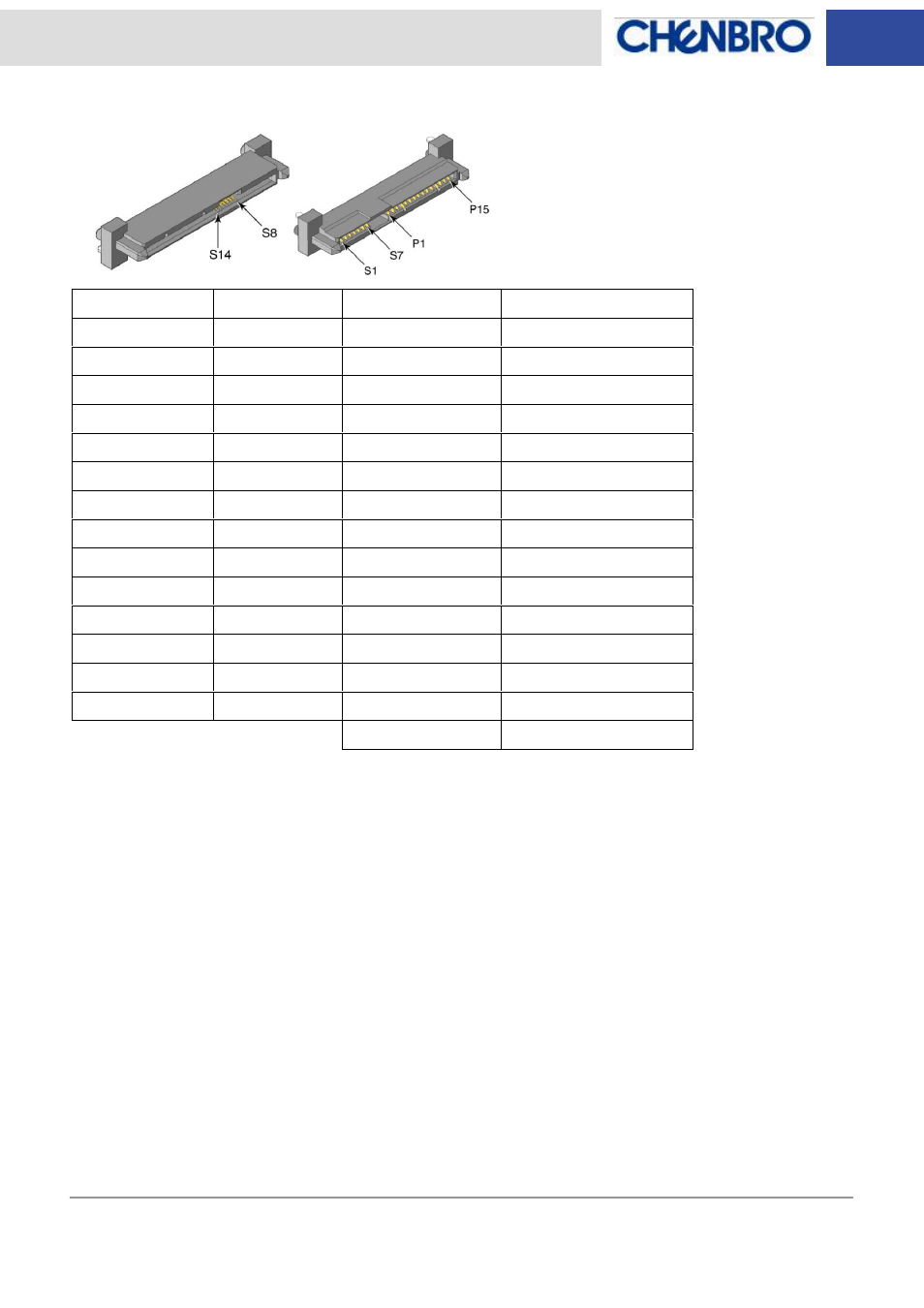

HDD IN Connector (CN11)
Pin NO.
Descriptions
Pin NO.
Descriptions
S1 GND
P1
NC
S2 RP
P2
NC
S3 RN
P3
NC
S4 GND
P4
GND
S5 TN
P5
POWER
ENABLE
S6 TP
P6
GND
S7
GND
P7
5V PRE- CHARGE
S8 NC
P8
5V
S9 NC
P9
5V
S10 NC P10
GND
S11 NC P11
ACCESS
SIGNAL
S12 NC P12
GND
S13
NC
P13
12V PRE- CHARGE
S14 NC P14
12V
P15 12V
