Chenbro SK31101 6Gb/s 1-port SATA/SAS Backplane, For SK31101 - Manual User Manual
Page 6
1-Port 6Gb/s SAS Backplane 80H10531102A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 e-mail: [email protected]
6
www
.
c
he
nbro.com

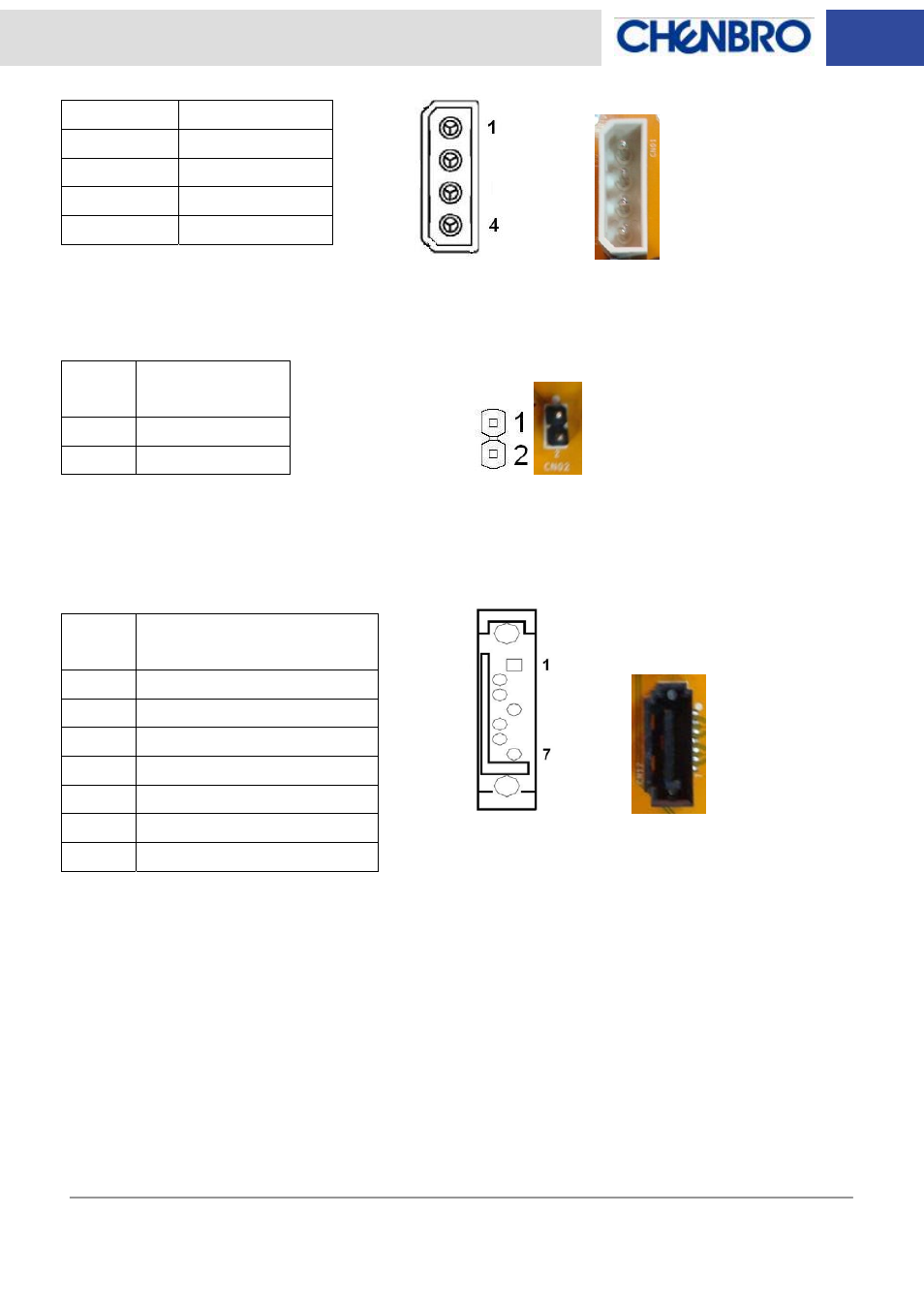

POWER Connector (CN01)
HDD FAIL LED Connector (CN02)
HOST IN Connector (CN12)
Pin NO.
Description
1 12V
2 GND
3 GND
4 5V
Pin
NO.
Description
1
HDD FAIL LED
2 GND
Pin
NO.
Description
1 GND
2 RP
3 RN
4 GND
5 TN
6 TP
7 GND
