4-Port SATA III Backplane 80H10220919A0 User’s Manual
15F., No.150, Jian 1
st
Rd.,Zhonghe Dist.,New Taipei City, Taiwan( R.O.C.)
Tel: +886-2-82265500 Fax: +886-2-82265392 Email: [email protected]
www
.chenbr
o.com

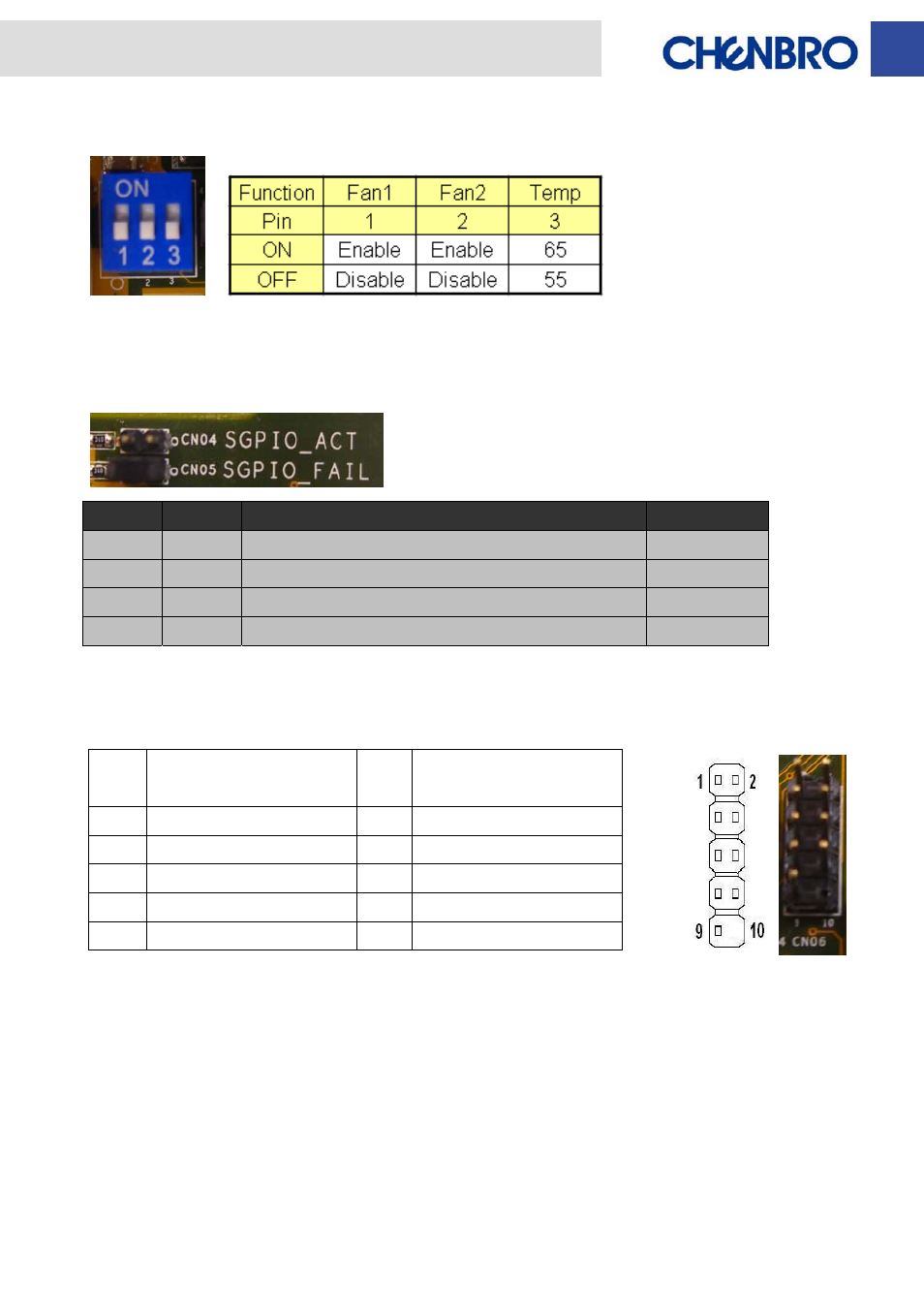

11. [SW1]
: Fan & Temperature setting
12. [CN04]
: SGPIO HDD access function jumper
[CN05]
: SGPIO HDD fail function jumper
13. [CN06]
: External HDD Activity LED Signal Input connector (from RAID Card)
SGPIO SIGNAL CONNECTOR (CN06)
CN05
CN04
SGPIO
Pin B8 Signal
Close
Close
Enable HDD failure and activity signal via SGPIO
Low
Close
Open
Enable HDD failure signal via SGPIO (Default)
Low
Open
Close
Enable HDD activity signal via SGPIO
Low
Open
Open
Disable HDD failure and activity signal via SGPIO
High
Pin
NO.
Descriptions
Pin
NO.
Descriptions
1
SGPIO DATA INPUT
2
NC
3
SGPIO DATA OUTPUT
4
GND
5 GND 6
SGPIO
LOAD
7
CONTROL TYPE
8
SGPIO CLOCK
9 NC 10
KEY
PIN
