Chassis assembly example – Chenbro RM51424 LED Board(80H033215-003 Rev. 1.1~1.2), For 3Gbps SATA Backplane - Manual User Manual
Page 9
9
LED Board 80H033215-003 ver. 1.1~1.2
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]
www
.chenbr
o.com

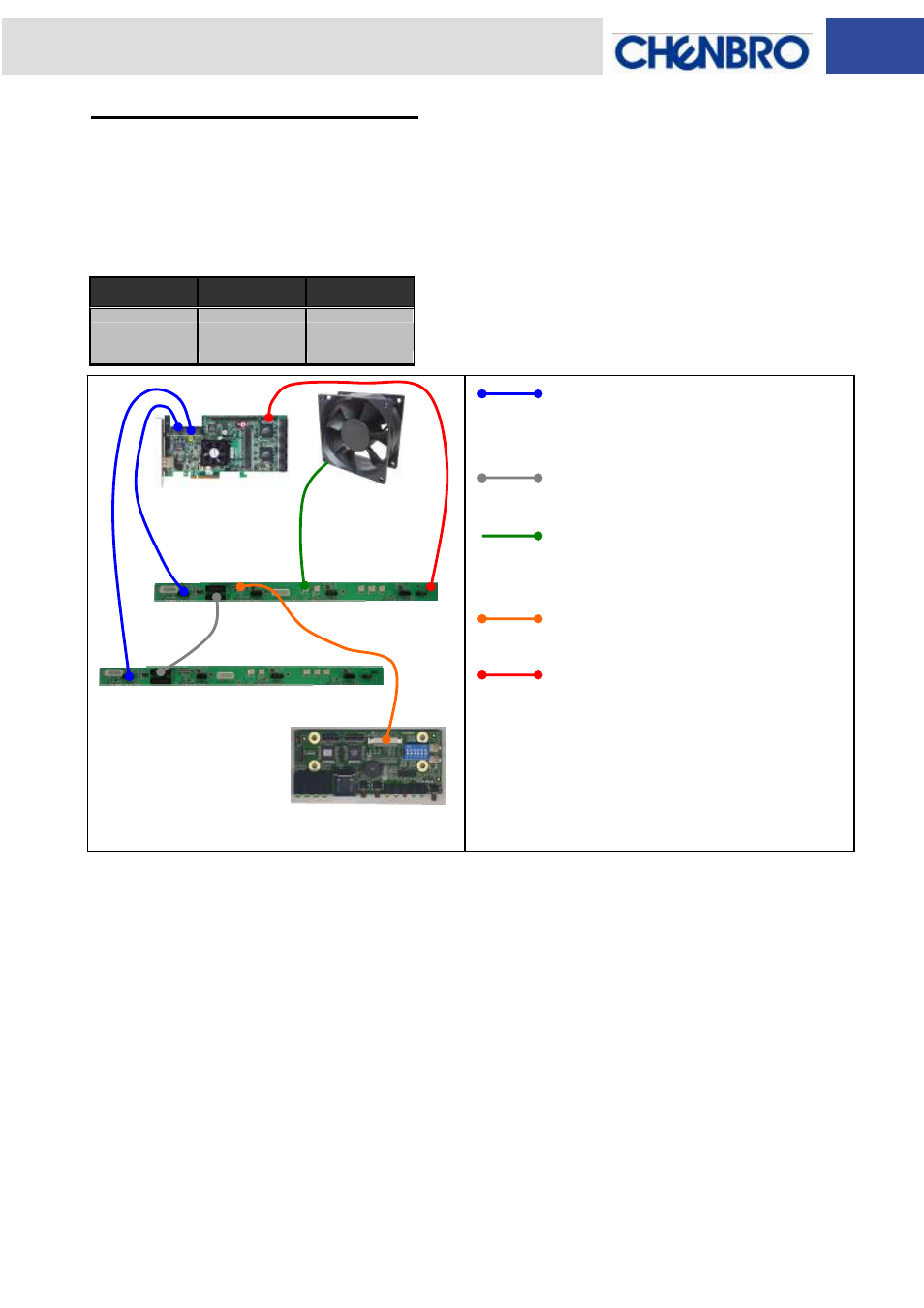

Chassis Assembly Example
See below for the example of how the wiring to be performed.
Example for RM21508B SATA backplane wiring
LED Board Function Switch Setting
SW 1
SW 5
SW6
OFF
OFF
OFF
SATA cable (BP to Host Adaptor, 4x
cables per BP)
LED Flat cable (10cm, BP to BP)
Chassis fans wiring (Connection start
from FAN1)
LED FFC cable (BP to LED board)
HDD Failure Signal cable (if RAID
Controller support HDD failure signal)
SATA RAID Card Chassis Fan x4
HDD8 HDD7 HDD6 HDD5
HDD4 HDD3 HDD2 HDD1
LED Board
