4-Port Mini-SAS 6Gb/s Backplane 80H10331404A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]
w
w
w
.
c
h
e
n
b
r
o
.
c
o
m

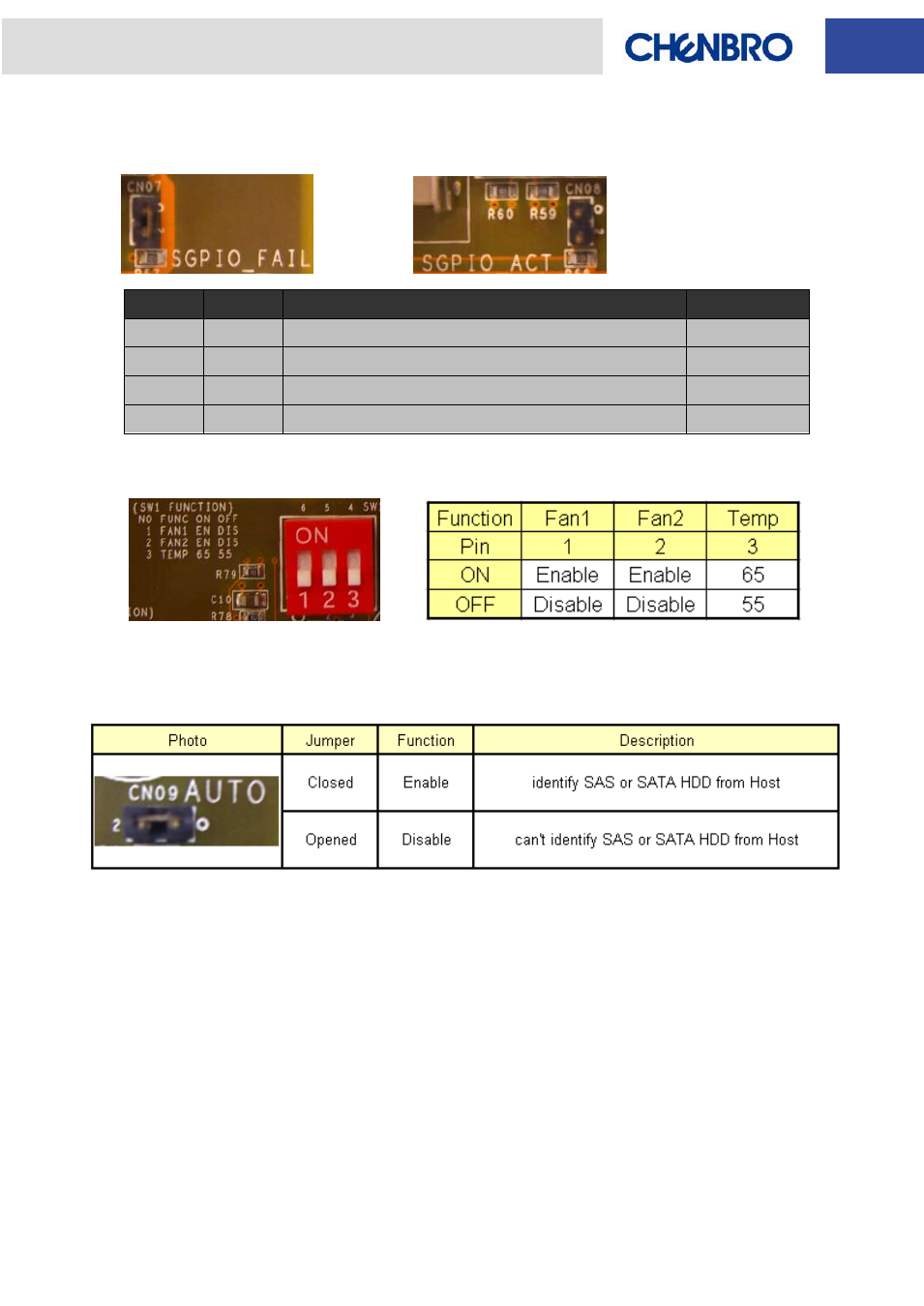

11.
[CN07]
: SGPIO HDD fail function jumper
[CN08]
: SGPIO HDD access function jumper
12
[SW1]
: Function switch
13.
[CN09]
: Auto detection
CN07
CN08
SGPIO
Pin B8 Signal
Close
Close
Enable HDD failure and activity signal via SGPIO
Low
Close
Open
Enable HDD failure signal via SGPIO (Default)
Low
Open
Close
Enable HDD activity signal via SGPIO
Low
Open
Open
Disable HDD failure and activity signal via SGPIO
High
