Page 10
10
4-Port Mini-SAS 6Gb/s Backplane 80H10331404A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]
w
w
w
.
c
h
e
n
b
r
o
.
c
o
m

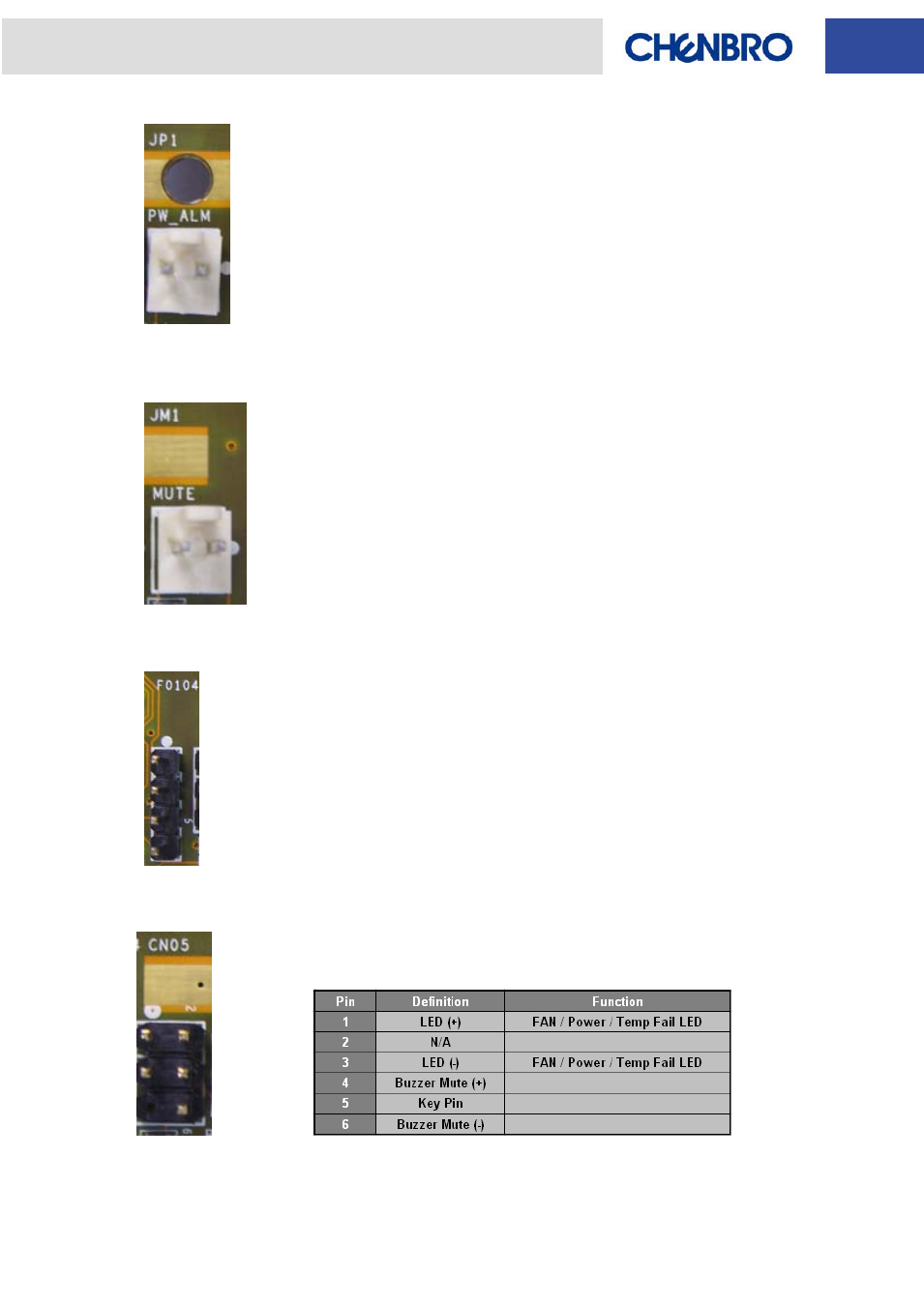

7.
[JP1]
: Power failure input (To Redundant Power Supply)
8.
[JM1]
: Power failure alarm mute output (To Redundant Power Supply)
9.
[F0104]
: Discrete HDD fail LED signal input connector (from RAID Card)
10.
[CN05]
: Fan / Power / Temperature fail LED output connector (To front panel LED display)
Pin1
Pin1
Pin1
HDD 4
HDD 3
HDD 2
HDD 1
Pin1
Pin6
