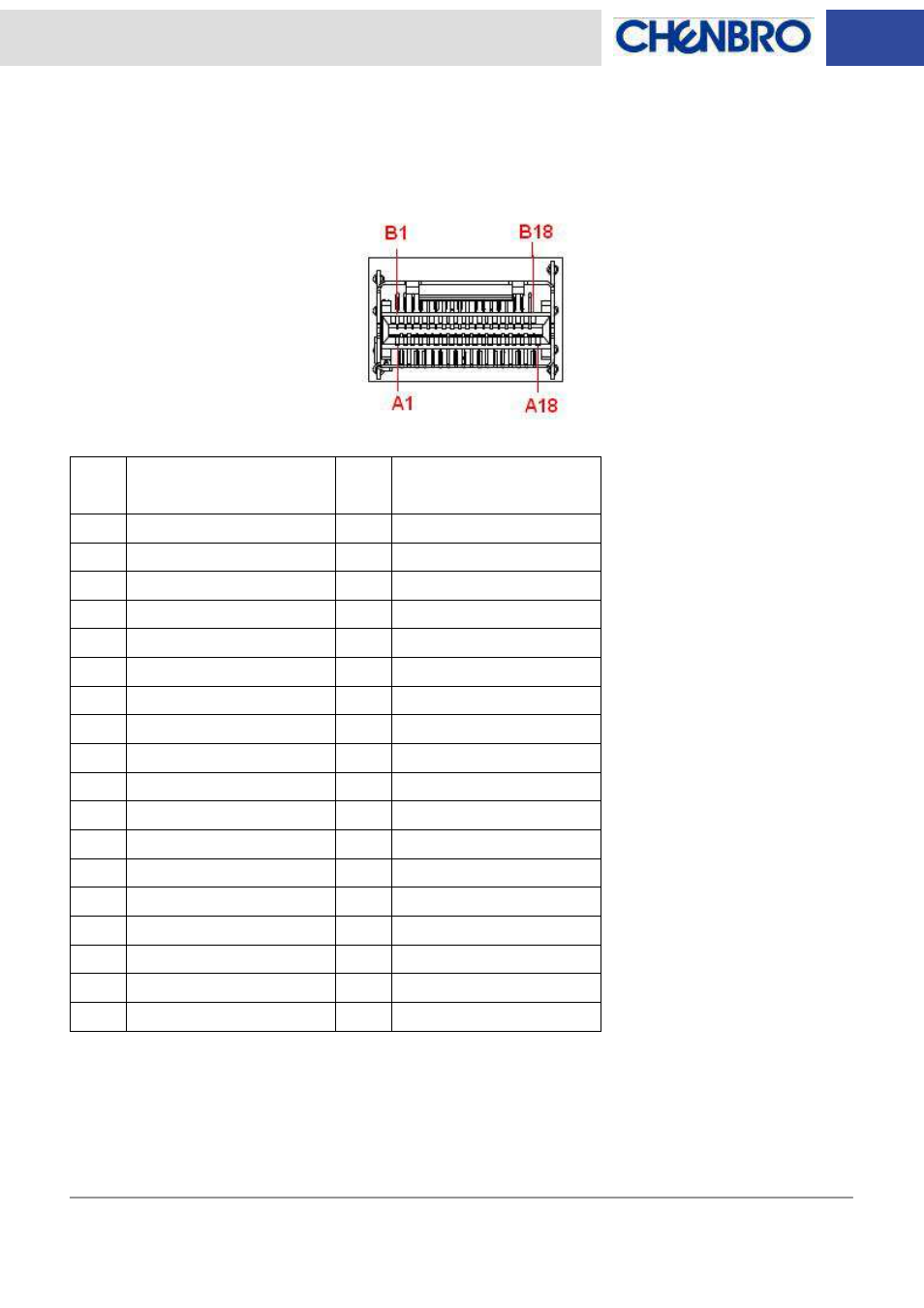

Mini SAS CONNECTOR (CB1 ~ CB2)
Pin
NO.
Descriptions
Pin
NO.
Descriptions
A1 GND B1 GND
A2 RP1 B2 TP1
A3 RN1 B3 TN1
A4 GND B4 GND
A5 RP2 B5 TP2
A6 RN2 B6 TN2
A7 GND B7 GND
A8 SG_CK B8 NC
A9 SG_LD B9 GND
A10 GND B10 SG_DO
A11 NC B11 SG_DI
A12 GND B12 GND
A13 RP3 B13 TP3
A14 RN3 B14 TN3
A15 GND B15 GND
A16 RP4 B16 TP4
A17 RN4 B17 TN4
A18 GND B18 GND
Front View
