Chenbro RM13604 6Gb/s 4-port 3.5 SATA/SAS Backplane (80H10313601A0), Rev. A0 - Manual User Manual
Page 7
4-Port 6Gb/s SAS/SATA Backplane 80H10313601A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]
7
w
w
w
.
c
h
e
n
b
r
o
.
c
o
m

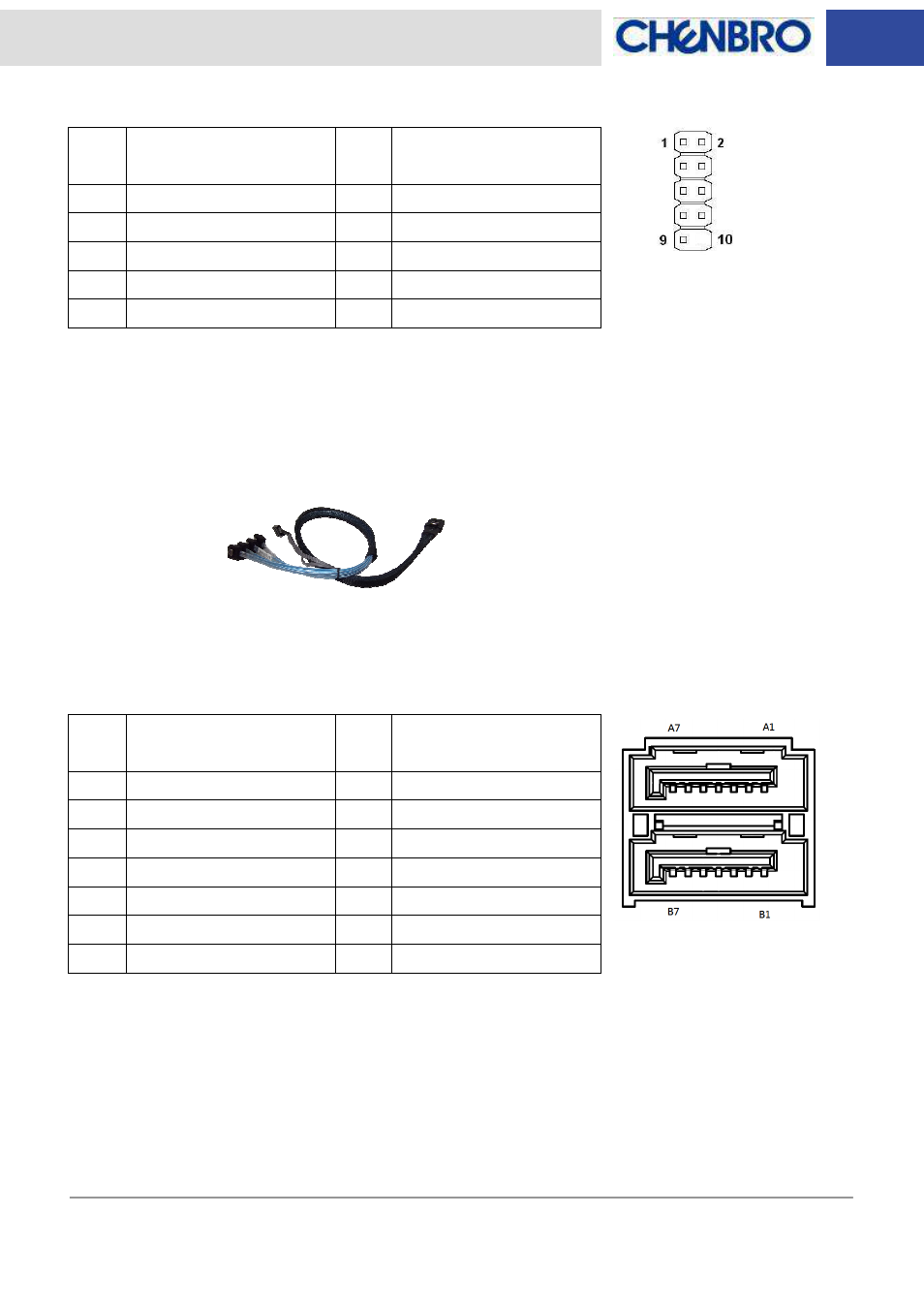

SGPIO SIGNAL CONNECTOR (CN3)
Remarks:
CN05 for HDD connector CH11 ~ CH41
CN06 for HDD connector CH51 ~ CH81
Recommend SAS/SATA cable with SGPIO side band supporting as below,
HOST IN Connector (CH01 ~ CH02) 7 Pin SATA *4 port
Pin
NO.
Descriptions
Pin
NO.
Descriptions
1
SGPIO DATA INPUT
2
NC
3
SGPIO DATA OUTPUT
4
GND
5
GND
6
SGPIO LOAD
7
CONTROL TYPE
8
SGPIO CLOCK
9
NC
10
KEY PIN
Pin
NO.
Descriptions
Pin
NO.
Descriptions
A1
GND
B1
GND
A2
RP1
B2
RP2
A3
RN1
B3
RN2
A4
GND
B4
GND
A5
TN1
B5
TN2
A6
TP1
B6
TP2
A7
GND
B7
GND
mini SAS SFF-8087 to 4 SATA with side band
(P/N: 26H12323601A0)
