4-Port 6Gb/s SAS/SATA Backplane 80H10313601A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]
10
w
w
w
.
c
h
e
n
b
r
o
.
c
o
m

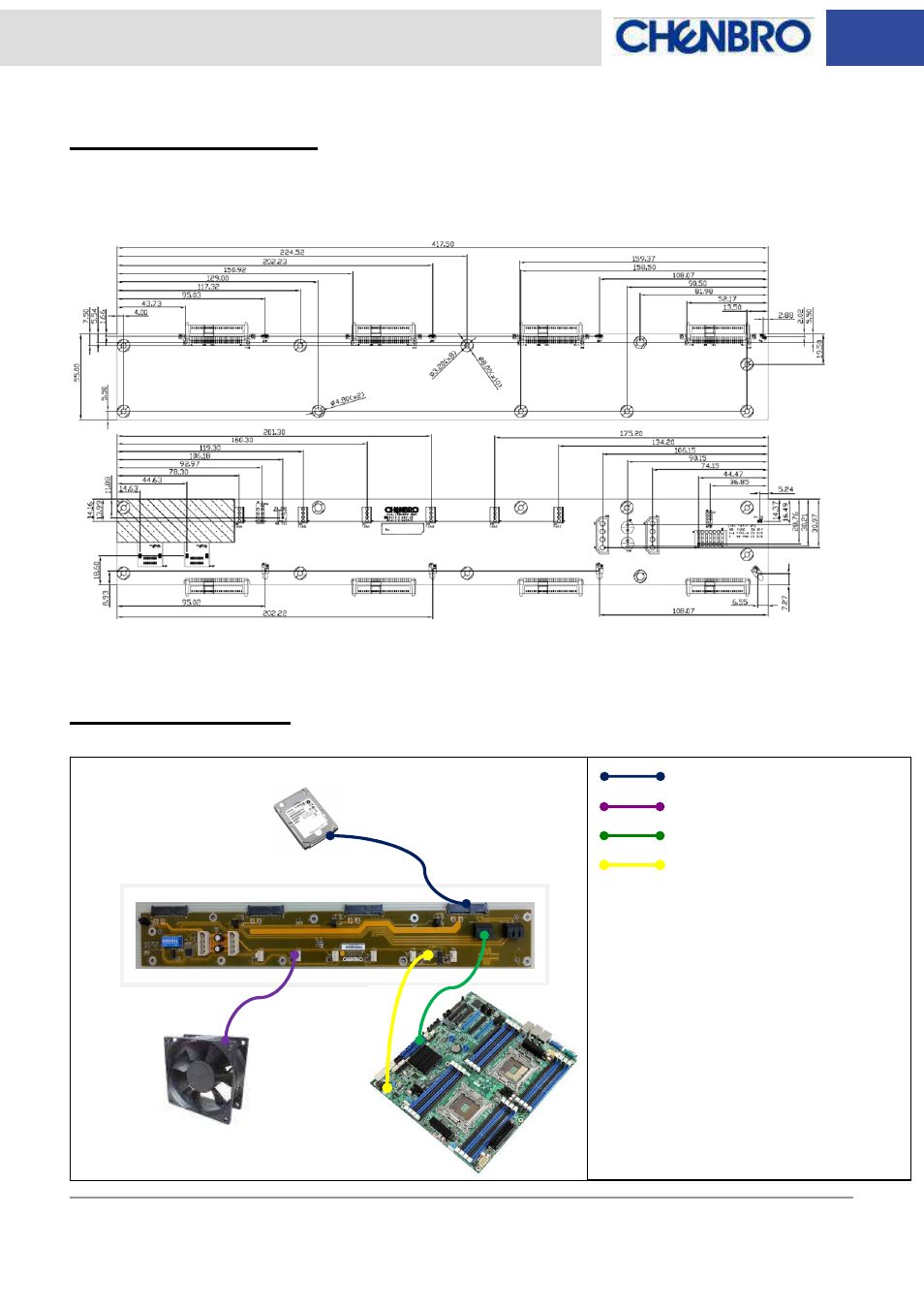

Backplane Assembly
The Chenbro 4-Port 6Gb/s Mini-SAS Backplane can be assembled on Chenbro Storage Server Chassis
RM13604 only. Please refer to the Chassis Quick Installation Guide for detail information.
Figure : Front and Rear View of 4-port Backplane
Backplane Wiring
HBA / RAID Card Chassis Fan x4 ( Max.) Chassis Fan x4 ( Max.)
To SATA/SAS HDD
Fan cable
SATA Cable
M/B PWM / clock Fan signal
cable ( 2-pin to 4-pin) see note
Note :
This optional cable (26H11313601A0)
subjects to PWM and clock signal
connection between M/B and B/P, to
get PWM duty signal ( depends on
thermal sensor on M/B ) for
comparison with B/P and control fan
speed. Meantime, report fan clock
signal to M/B for fan speed
indication in the system.
Chassis Fan x4 ( Max.)
SATA / SAS HDD
