BatteryMINDer ® Model 12248-AA
Page 15
9LL=JQ'#(=J ¸
Charger / Maintainer /
Full Time De-Sulfator - Conditioner
12-Volt @ 8 Amp
Model 12248-AA
8 A
Select
Charge Rate
Until
Aviation Lit
Green = Power ON
ERROR:
Red = Polarity Reversed
/ Battery = less than 3-Volts*
Red (Blinking) = Battery Fault / Battery Weak*
Charge - Float
Green (solid) = Charging
Green (blinking) = Float (maintenance)
*See Instruction Manual
PRESS PRESS PRESS
Battery Condition Indication
Power On & Battery Connected
Before Start Charge:
Green = OK - Accepted
Yellow = Weak / Sulphated / Deep Discharge*
After Charge:
Green = Good
Yellow = Sulphated / Weak* MAINTENANCE
(FLOAT)
U.S. Patents: 5783929 & 6078166
Start / Reset
/ Stop
VDC Electronics, Inc.
800-379-5579 (ET)
www.vdcelectronics.com
AVIATION
Hold for 5 sec. for full reset
RED RED RED
GEL AGM FLOODED
GEL ON OFF OFF
AGM OFF ON OFF
FLOODED OFF OFF ON
GREEN GREEN GREEN
2A 4A 8A
2A ON OFF OFF
4A OFF ON OFF
8A OFF OFF ON

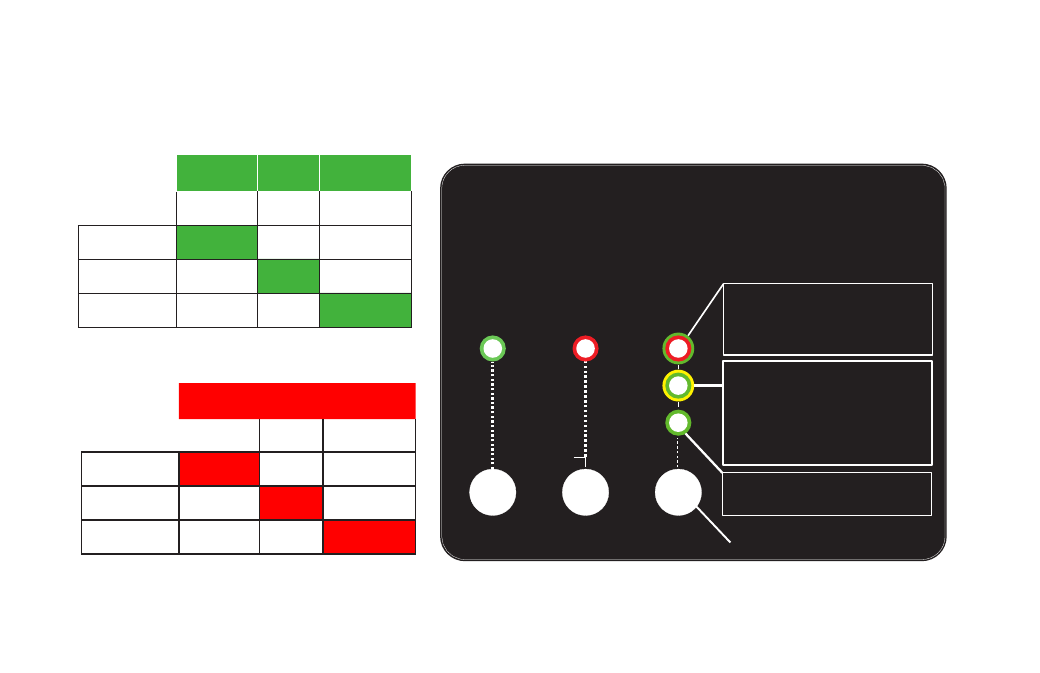

LED INDICATOR FUNCTIONS
LED indicators refer to charger label at right
TABLE 5
TABLE 6
