2

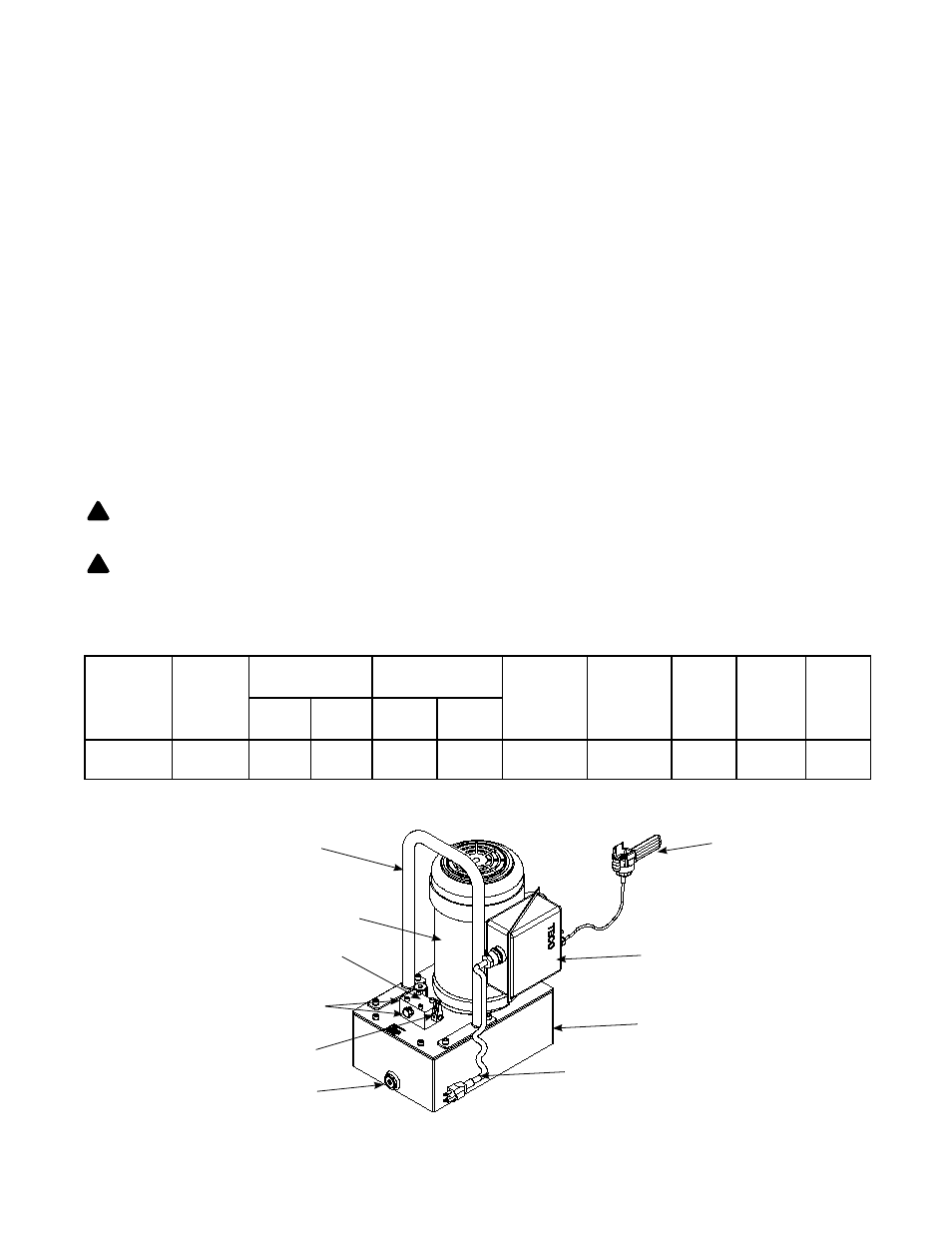

Figure 1 - Model PED0501T Components
Save these instructions. For your safety, read and understand the information contained within. The owner and operator shall
have an understanding of this product and safe operating procedures before attempting to use this product. Instructions and
safety information shall be conveyed in operator's native language before use of this product is authorized. Make certain that the
operator thoroughly understands the inherent dangers associated with the use and misuse of the product. If any doubt exists as
to the safe and proper use of this product as outlined in this factory authorized manual, remove from service immediately.
Inspect before each use. It is recommended that, prior to each use, an inspection be done by qualified personnel and that
any missing or damaged parts, decals, warning / safety labels or signs be replaced with factory authorized replacement parts
only. Any pump that appears to be damaged in any way, is worn, leaking or operates abnormally shall be removed from service
immediately until such time as repairs can be made. Any pump that has been or suspected to have been subject to a shock load
(a load dropped suddenly, causing the system pressure to exceed 10,000 PSI), shall be removed from service immediately until
checked by qualified personnel. Owners and operators of this equipment shall be aware that the use and subsequent repair of
this equipment may require special training and knowledge.
PRODUCT DESCRIPTION
BVA Hydraulics Electric Pump is engineered to meet most industrial standards for Performance and Safety. Its unique hydraulic
circuit allows quick displacement of hydraulic fluid under no load conditions and easy pumping in loaded conditions. This electric
hydraulic pump supplies compressed hydraulic fluid to compatible applications i.e. rams, presses, spreaders, compactors and
crimping machines, anywhere that 10,000 PSI of fluid pressure is needed. Special skill, knowledge and training may be required
for a specific task and the product may not be suitable for all the jobs described above. Unsuitable applications would include
applications that call for a device to move, level or support persons, animals, hazardous materials, mobile homes/ dwellings
in general, mirrors and/or plate glass, and/or to connect/secure hatches, components, etc. between bulkheads. The user must
make the decision regarding suitability of the product for any given task and assume the responsibility of safety for himself and
others in the work area.
Always check connections before using. Alteration of these products is strictly prohibited. Use only those adapters and
attachments provided and approved by the manufacturer.
WARNING: To reduce the risk of personal injury and/or property damage, ensure that the rated working pressure of each
pressurized attachment be equal to or greater than the rated working pressure developed by the hydraulic pump.
Carry Handle
Control Box
Oil Reservoir
Power Cord
SPECIFICATIONS
Oil Output Ports
Automatic Dump Valve
Remote Pendant
Model
Number
Usable
Oil
Capacity
(gal)
Pressure Rating
(psi)
Output Flow Rate
(in 3 /min)
Valve
Type
Valve
Function
Motor
(HP)
Motor
Voltage
(V)
Weight
(lbs)
1st
Stage
2nd
Stage
No
Load
Load
PED0501T 1 380 10,000 305 18
2-way,
2-position
Advance*
/Return
0.5 110/115 66.2
Drain Plug
Flipper Control
(Hold and Release)
Electric Motor
(*) Holds pressure in advance position when valve motor is shut off.
!
!
