Page 7
7
Item
Part No. for Model:
Description Qty
HLN5502~HLN5512 HLN10002~HLN10012
1
H55-6-1103-100 Saddle Assy.
1
2
649-1-0010-109
Bolt
2
3
H40-5-1804-101
H41-5-1804-108
Lock Nut
1
4
N/A
N/A
Cylinder
1
5
515-3-0115-104
Washer
2
6
H40-6-0120-102
Bolt
2
7
631-2-0120-108
Lug Hook
2
8
N/A
Ram Plunger
1
9
*
Warning Band (yellow)
1
10
*
U-cup
1
11
*
Back-up ring
1
12
*
U-cup
1
13
H02-4-6001-104
Coupler
1
14
H02-4-6003-108
Dust cap assy
1
15
H02-6-1008-105
Rubber cap
1
-
H40-3-9901-107
H41-3-9901-106
Seal Kit
-
-
HLN5502-M0
OIPM
-
(*) Items included and available only as Seal Kit. Replacement requires
special skills, knowledge, and equipment. Only an authorized
service center may perform the repair and/or replacement of these
items. Contact BVA technical service for list of service centers.
N/A - Part is not available for replacement
Note: Not all components of the cylinder are replacement items, but are illustrated as a convenient reference of location and
position in the assembly sequence.
MODELS: HLN5502, HLN5504, HLN5506, HLN5508, HLN5510, HLN5512
HLN10002, HLN10004, HLN10006, HLN10008, HLN10010, HLN10012
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 * Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com

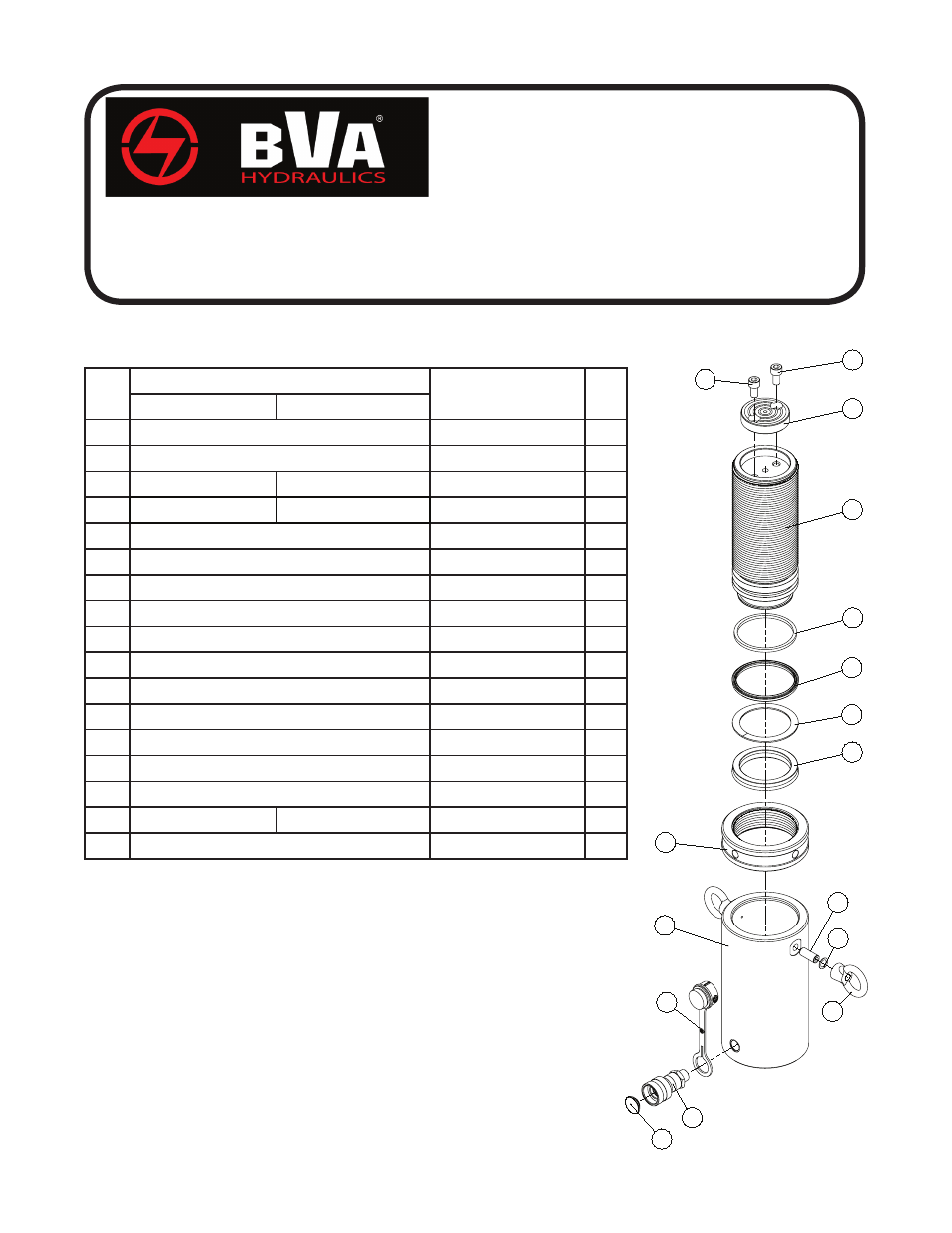

Lock Nut Cylinder
Service Parts
4
7
6
5
3
2
1
8
9
10
11
12
2
14
15
13
