SAFETY AND GENERAL INFORMATION
Save these instructions. For your safety, read and understand the
information contained within. The owner and operator shall have an
understanding of this product and safe operating procedures before
attempting to use this product. Instructions and safety information
shall be conveyed in the operator’s native language before use of
this product is authorized. Make certain that the operator thoroughly
understands the inherent dangers associated with the use and
misuse of the product. If any doubt exists as to the safe and proper
use of this product as outlined in this factory authorized manual,
remove from service immediately.
Inspect before each use. Do not use if leaking, broken, bent,
cracked or otherwise damaged parts are noted. If the cylinder has
been or suspected to have been subjected to a shock load (a load
dropped suddenly, unexpectedly upon it), discontinue use until
checked out by a BVA Hydraulics authorized service center. Owners
and operators of this equipment shall be aware that the use and
subsequent repair of this equipment may require special training
and knowledge. It is recommended that an annual inspection be
done by qualified personnel and that any missing or damaged
parts, decals, warning/safety labels or signs be replaced with BVA
Hydraulics authorized replacement parts only. Any cylinder that
appears to be damaged in any way, is worn or operates abnormally
shall be removed from service immediately until such time as repairs
can be made.
PRODUCT DESCRIPTION
BVA Hydraulics Single Acting Pull Cylinder is designed for rated
capacity pulling jobs. A wide variety of applications exist for this
category of product. Special skill, knowledge and training may be
required for a specific task and the product may not be suitable
for all the jobs described above. Unsuitable applications would
include applications that call for a device to move, level or support
persons, animals, hazardous materials, mobile homes/dwellings
in general, mirrors and/or plate glass, and/or to connect/secure
hatches, components, etc. between bulkheads. The user ultimately
must make the decision regarding suitability of the product for any
given task and therefore accept responsibility for that decision.
Immediately after lifting, loads must be supported by appropriate
mechanical means.
WARNING: NEVER use hydraulic cylinder as a
support device.
WARNING: Always check connections before using.
Alteration of these products is strictly prohibited. Use only
those adapters and attachments provided and approved by
the manufacturer.
WARNING: To reduce the risk of personal injury and/or
property damage, ensure that the rated working pressure of
each pressurized attachment be equal to or greater than the
rated working pressure developed by the hydraulic pump.
BEFORE USE
1. Before using this product, read the owner's manual completely
and familiarize yourself thoroughly with the product, its
components and recognize the hazards associated with its use.
2. Verify that the product and the application are compatible. If in
doubt, call BVA Hydraulics Technical Service (888) 332-6419.
3. Inspect before each use. Do not use if bent, broken, leaking or
damaged components are noted.
4. Replace worn or damaged parts and assemblies with BVA
Hydraulics authorized replacement parts only. Lubricate as
instructed in Maintenance Section.
5. Ensure method of confirming load is accurate and working
properly. Have gauge or load cell accuracy verified by qualified
personnel on a yearly basis.
!
!

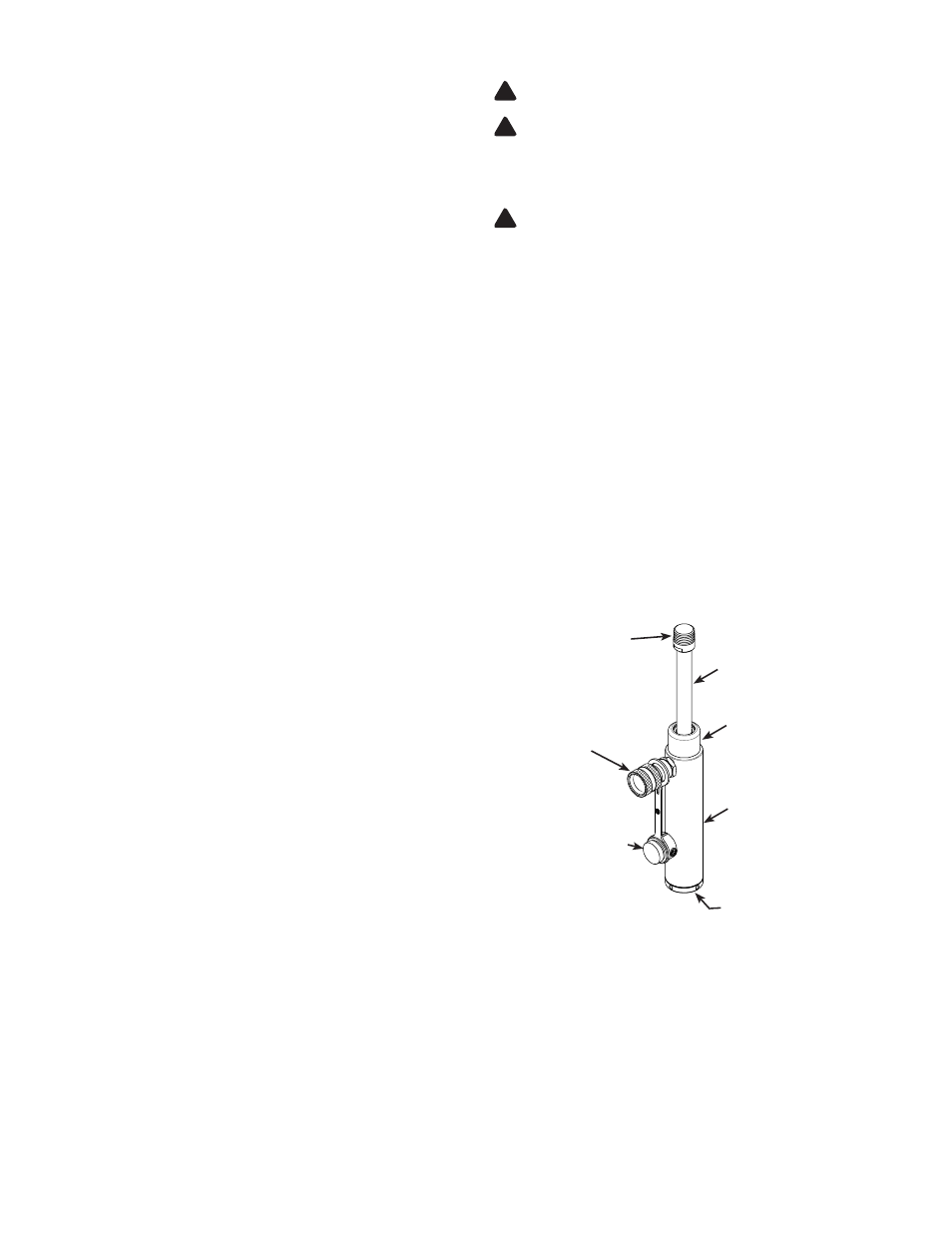

Figure 1 - Typical Cylinder Components
!
Threaded Adapter
Collar Protecting Cap
Cylinder Housing
Female Coupler,
3/8”-18NPTF
Dust Cover
Ram Plunger
Base Mounting Hole
(not shown)
