Note: Not all components of the cylinder are replacement items, but are illustrated as a convenient reference of location and
position in the assembly sequence.

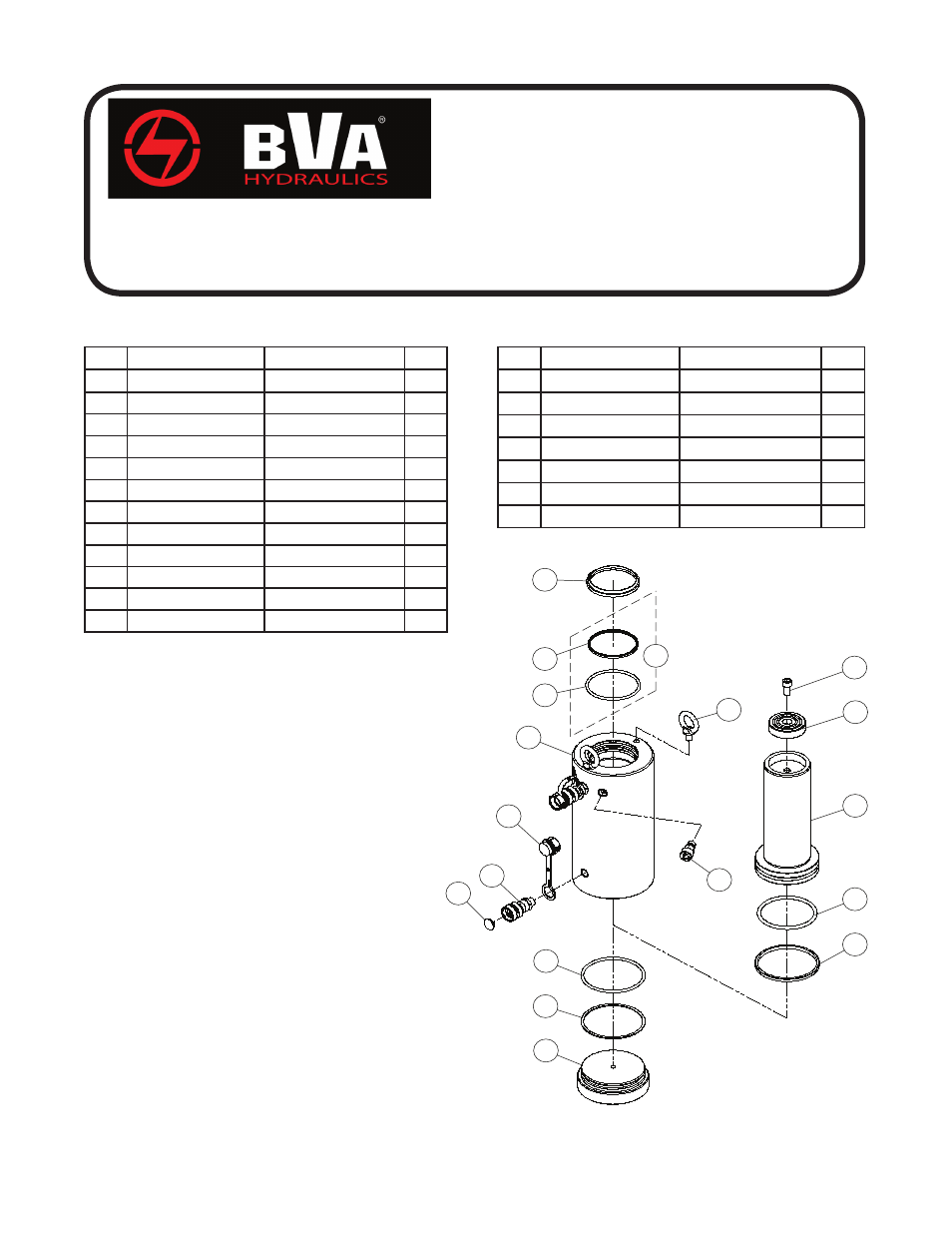

High Tonnage Double
Acting Cylinder Service
Parts
Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized Replacement
Parts only.
MODELS: HDG10002, HDG10004, HDG10006, HDG10008, HDG10010 & HDG10012
Item
Part Number
Description
Qty
1
631-1-0120-102
Eyebolt
2
2
*
Dust Seal
1
3
F61-7-0950-104
Oil Seal Assembly
1
3-1
*
Stepseal 2K Seal
1
3-2
*
O-ring
1
4
H61-6-1101-100
Saddle
1
5
649-1-0120-207
Bolt
1
6
N/A
Plunger
1
7
N/A
Cylinder
1
8
*
O-ring
1
9
*
T-seal Assembly
1
10
*
O-ring
1
* - indicates items included in, and available only as part of Seal Kit
N/A - part is not available as replacement
Item
Part Number
Description
Qty
11
*
Back-up Ring
1
12
H61-6-1601-106
Cylinder Base
1
13
CH38F
Female Coupler
2
14
H02-6-1008-105
Rubber Cap
2
15
H02-4-6003-108
Dust Cap Assembly
2
16
F10-3-1610-104
Safety Value
1
(*)
F61-3-9901-102
Repair Kit
-
5
4
6
10
11
12
3-1
1
7
15
13
14
8
3-2
16
2
3
9
